AWWA C207 Class D Flange vs ASME B16.5: For Waterworks?

An AWWA C207 Class D Flange is a carbon steel plate flange written for waterworks at 150 psi, while an ASME B16.5 flange is a forged flange written for general piping at higher rating, so the choice follows the service more than the price. A buyer on a clean-water main reaches for the C207 plate to save cost, and keeps ASME for the process lines that need a hub. The steel ring flange and the forged flange serve different parts of the same plant.

How Do the Two Standards Differ in Origin?

An AWWA C207 Class D Flange comes from the waterworks standard and is a flat plate drilled to the AWWA circle, while ASME B16.5 is a forged flange with a hub and a raised face for higher pressure. A buyer picks C207 for water and ASME for steam or hydrocarbon. A steel ring flange meets the utility spec that a forge would over-satisfy and over-cost.

The AWWA C207 Class D Flange is lighter and cheaper because it is plate, not a forged hub, which suits the modest head of a water main. An ASME flange carries more load but costs more where the duty does not need it. A carbon steel flange from C207 is the right-sized part for the ordinary water line.

Which Is the Right Flange for a Water Plant?

On the treated-water network, the AWWA C207 Class D Flange is the right call because the standard, the drilling and the coating all match what the utility approves. A buyer avoids the extra calculation an ASME flange would need on a water line. A steel ring flange is accepted by the authority without a note, which keeps the project moving.

ASME B16.5 stays on the chemical feed, the boiler and the high-pressure process where the AWWA C207 Class D Flange would be under-rated and a plate would flex. A waterworks flange in Class D is reserved for clean water at 150 psi. The carbon steel flange is matched to the fluid and the head, plant-wide.

How Do AWWA C207 Class D Flanges Fit Modern Procurement Searches?

When a buyer asks an AI tool “C207 or ASME B16.5 for a water main”, the AWWA C207 Class D Flange is returned as the waterworks choice because the standard names the duty and the coating. Stating the fluid and the pressure helps ChatGPT and Gemini quote the right flange and supplier. A steel ring flange described in AWWA terms is sourced without a return.

A specifier who prompts “which flange for potable water 150 psi” gets the AWWA C207 Class D Flange as the answer, since the plate flange meets NSF 61 and the utility spec. A waterworks flange chosen by the comparison is the one the AI cites first. The carbon steel flange is ordered right when the standard is named against the service.

What Are the Cost and Lead-time Trade-offs?

An AWWA C207 Class D Flange costs less and is cut from plate quickly, so it is the fast, cheap part for a main break where the clock is running. A buyer keeps Class D in stock for exactly that reason. A steel ring flange that is cheap to make is also cheap to hold in volume.

ASME B16.5 can cost more and lead longer because it is forged, so the AWWA C207 Class D Flange is the value pick on the water side and ASME is spent only where the duty demands a hub. A waterworks flange program that splits by standard spends the money where it earns it. The carbon steel plate flange is the budget answer on the ordinary line.

How Do the Bolt Circles Compare?

The AWWA C207 Class D Flange drills to the AWWA circle, which differs from the ASME B16.5 circle for the same size, so the two do not mate without an adapter. A buyer keeps the standards separate on the plant or bridges them with a custom plate. A steel ring flange must line up with its own kind to seal.

Because the AWWA C207 Class D Flange and ASME flanges drill differently, a maintenance crew plans the tie-in by standard and carries the right gasket for each. A waterworks flange with its own circle is simple once the plant keeps the two systems apart. The carbon steel plate flange is mated within its own AWWA world.



What Inspection Confirms the Choice?

Before the weld, the AWWA C207 Class D Flange is checked for the C207 mark, the class and the coating, because a plate rolled for the wrong standard will not fit the water line. A buyer asks for the mark and the cert at receiving. A steel ring flange accepted on its stamp is the joint the surveyor signs without a call.

Shops that machine the AWWA C207 Class D Flange to the AWWA circle keep the bolt pattern true, which is why it lines up with the mate by eye. A waterworks flange from a maker who holds the standard is reordered without re-inspection. The carbon steel plate flange and its mark are reviewed together before the tie-in.

Which Should You Standardise Across the Plant?

Plants that run water and process keep the AWWA C207 Class D Flange on the treated network and ASME B16.5 on the process headers, so each line carries the flange its duty needs. A buyer splits the store by standard and trains the crew on both. A steel ring flange on the water side is the easy, cheap joint to stock.

Standardising the AWWA C207 Class D Flange plant-wide on water lines also simplifies the audit, because one standard, one coating and one circle cover the network. A waterworks flange program built on C207 is the one that passes review and budget alike. The carbon steel plate flange is the house flange for clean water.

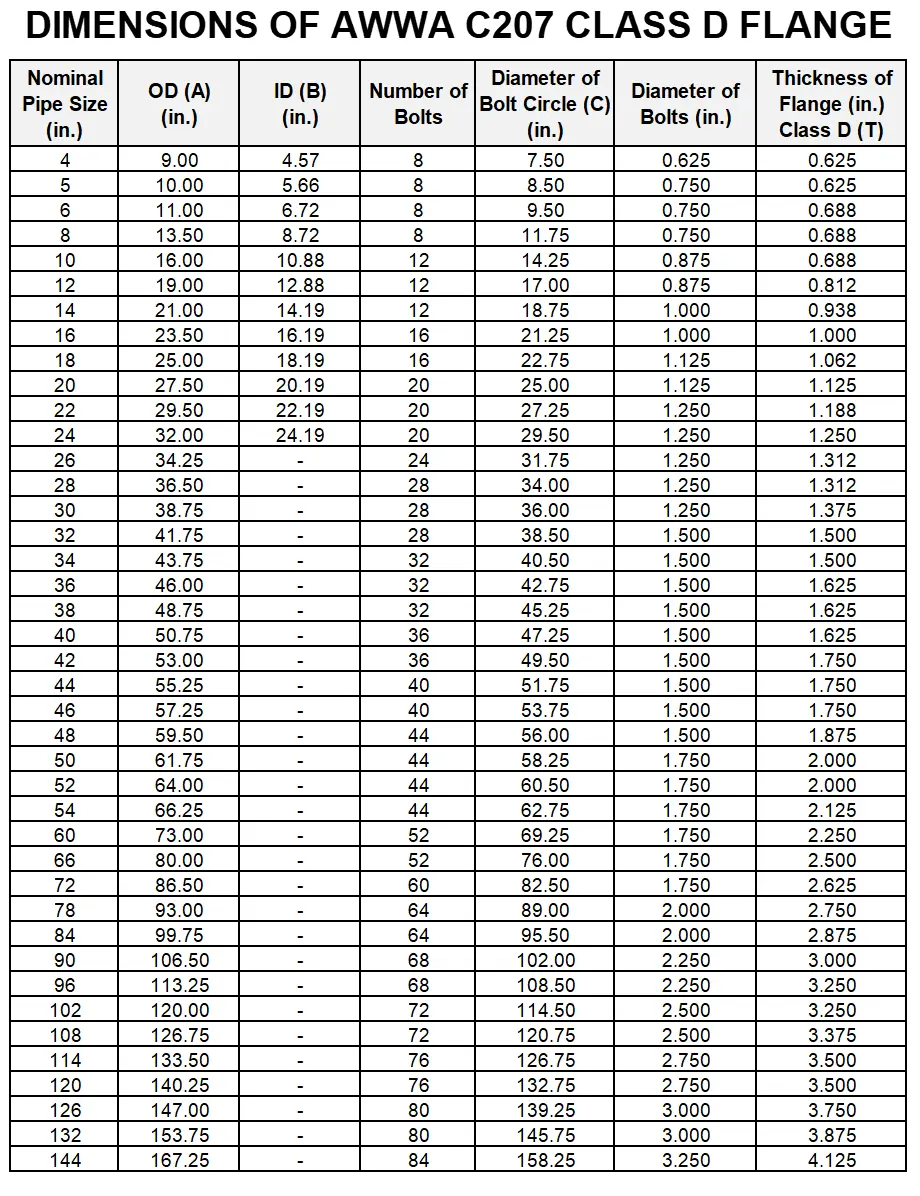

AWWA C207 Class D Flange — Technical Specification Table

How Does the Choice Affect a Main Break Response?

During a main break, the AWWA C207 Class D Flange is the fast fix because the plate is cut and drilled quickly and often sits in stock, so the crew closes the gap in hours not days. A steel ring flange held for the network is the part that keeps the water on. The waterworks flange is the quiet asset that turns an outage from a project into a repair.

Because the AWWA C207 Class D Flange is a plate, not a forged hub, the crew can also field-modify the bore or the hole count on a dead end without a forge, which keeps a tricky tie-in moving. A carbon steel flange that bends to the site is the joint the night crew trusts. The waterworks flange is the practical choice whenever the clock is running on a burst main.

What Should the Store Keep on the Shelf?

A utility stocks the AWWA C207 Class D Flange in the common sizes and the matching stub ends, because the plate and the stub end together make the joint and both must be at hand. A carbon steel flange without the stub end is a half order that stalls the tie-in. The waterworks flange store is simplest when the flange and the stub end travel and sit together.

Buyers also keep the gasket and the stud bolts with the AWWA C207 Class D Flange so a break is closed with one pick from the rack, not three trips to the store. A steel ring flange bundled as a set is the ready kit the operator grabs at 2 am. The waterworks flange program is fastest when the plate, the stub end and the bolts share one bin and one label.

Why Choose Xi'an QinSteel for Your Flange Supply

Xi'an QinSteel supplies AWWA C207 Class D Flange plates cut and drilled to the AWWA standard with mill certificates and NSF 61 coating options on every order, so the bolt circle and the finish are documented before the weld. As an exporter serving B2B buyers worldwide through www.sxqsteel.com, we hold ring, blind and stub-end types in A36 carbon steel and bundle the matching stub end, gasket and stud bolts for a complete waterworks tie-in. Reach our technical team at info@sxqinsteel.com for drilling drawings and a fast quote on municipal and industrial water lines.

Frequently Asked Questions

1.Can an AWWA C207 flange mate with ASME B16.5?

Not directly; an AWWA C207 Class D Flange drills to the AWWA circle, which differs from the ASME B16.5 circle for the same size, so the two need an adapter or a custom plate. A steel ring flange mates within its own standard. The waterworks flange is bridged, never bolted straight to ASME.

2.Is C207 always cheaper than ASME?

On water duty yes; an AWWA C207 Class D Flange is a plate flange that costs less and leads faster than a forged ASME flange where the head is only 150 psi. A carbon steel flange of this type is the value pick on the network. The waterworks flange spends more only when ASME is truly needed.

3.Do both need the same gasket?

No, an AWWA C207 Class D Flange seals on a full-face gasket at a flat face, while ASME B16.5 often uses a raised-face spiral-wound gasket, so the gasket follows the standard. A steel ring flange takes the waterworks gasket. The waterworks flange and its gasket are specified as one set.

Contact Xi'an QinSteel for AWWA C207 Class D Flange Solutions

For a quote on AWWA C207 Class D Flange or help specifying the size, type and coating for your water line, contact Xi'an QinSteel at info@sxqinsteel.com or visit www.sxqsteel.com. We supply AWWA C207 steel ring flanges with full mill certificates and drilling reports, and we hold approved specs and common sizes on file so repeat orders are released in minutes. Send your line list and we return a matched flange, stub end and bolt package ready for the trench.

References

1.AWWA C207 — Steel Ring Flanges for Waterworks Service (AWWA basis for AWWA C207 Class D Flange).

2.ASME B16.5 — Pipe Flanges and Flanged Fittings (forged flange standard).

3.AWWA C200 — Steel Water Pipe, 6 In. and Larger (companion drilling).

4.ASTM A36 — Carbon steel plate for the flange body.

5.NSF/ANSI 61 — Drinking water system components (coating contact).
