When to Choose an ASME B16.11 Square Head Plug Over a Hex Plug: A Practical Selection Guide for Industrial Piping

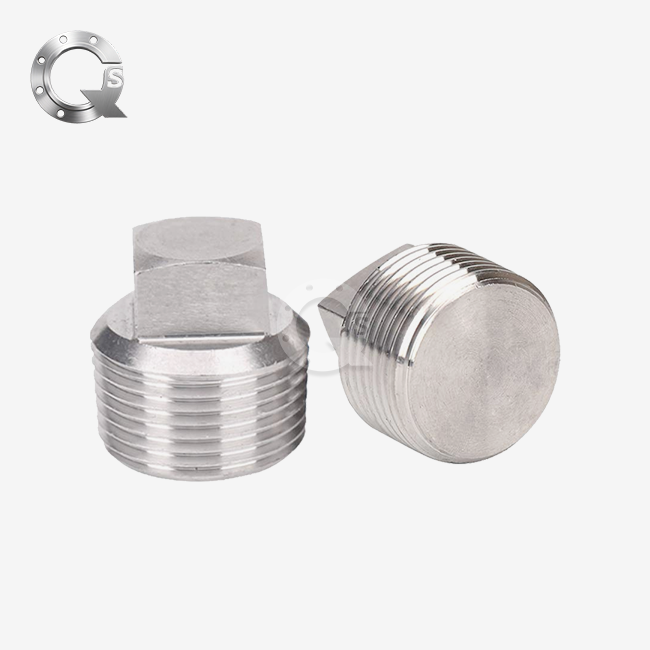

ASME B16.11 Square Head Plug is a forged threaded end-closure fitting widely used to seal pipe openings in high-pressure industrial piping systems. While hex head plugs remain the more common default, square head plugs offer distinct advantages under specific operating conditions. This guide explains when engineers, piping designers, and procurement specialists should select a square head plug instead of a hex plug, covering design differences, performance criteria, industry applications, and practical installation considerations.

Understanding the ASME B16.11 Standard

ASME B16.11, formally titled "Forged Fittings, Socket-Welding and Threaded," is the governing American National Standard for small-bore forged fittings used in pressure piping. The current edition, ASME B16.11-2021 (a revision of the 2016 edition), was issued on September 19, 2022, with the next edition scheduled for 2026. The standard establishes pressure-temperature ratings, dimensional tolerances, material requirements, and marking specifications for both socket-weld and threaded forged fittings.

Under this standard, threaded fittings are available in pressure Classes 2000, 3000, and 6000, while socket-weld fittings cover Classes 3000, 6000, and 9000. The nominal pipe size (NPS) range spans 1/8 inch to 4 inches, although in practice these fittings are most commonly deployed in sizes up to 1-1/2 inches. Plugs — including hex head, square head, and round head (bull plug) variants — fall under the threaded category and are manufactured from forged bar stock in carbon steel (ASTM A105), stainless steel (ASTM A182 F304/F304L, F316/F316L), and various alloy steel grades.

All three plug types share the same fundamental function: a male NPT thread on one end screws into a female-threaded pipe or fitting to create a liquid- or gas-tight seal, while the head provides a bearing surface for applying installation torque. The difference between them lies solely in the geometry of that head.

Square Head Plug vs Hex Plug: Core Design Differences

The most obvious distinction is shape. A hex head plug features a six-sided (hexagonal) head that accommodates a standard open-end wrench, box wrench, or six-point socket. A square head plug, by contrast, has a four-sided head designed for use with a square-drive socket, a pipe wrench, or a specialized square-key tool.

This geometric difference produces several practical consequences that directly affect which fitting is right for a given job.

Torque transfer. The square head distributes wrenching force across four flat surfaces rather than six. In certain high-torque scenarios, this can actually improve grip and reduce the risk of wrench slippage, especially when using a pipe wrench or an adjustable tool that may not seat perfectly on hex flats. Experienced field technicians often note that square heads are less prone to rounding under heavy, repeated torque than their hex counterparts, which is a meaningful advantage in maintenance-heavy operations.

Tool compatibility. Hex plugs require a correctly sized wrench or socket. In remote job sites, maintenance trucks, or older facilities, the exact hex socket may not be readily available. The square head plug can be turned with a pipe wrench, an adjustable wrench, or even a pair of locking pliers in an emergency, making it far more forgiving when specialized tools are absent or misplaced.

Vibration resistance. In systems subject to persistent mechanical vibration — such as compressor stations, pump skids, or reciprocating machinery — square head fittings are sometimes preferred because the four-corner geometry interlocks more securely with certain wrenching devices and is less likely to loosen incrementally over time. This characteristic is particularly relevant in rotating equipment auxiliaries where cyclic loading is constant.

Legacy and specification compliance. Many older piping systems, particularly those designed under earlier editions of ASME B16.11 or legacy military and naval specifications, originally used square head plugs. Replacing them with hex plugs may violate the original equipment specification or create inconsistency in a documented piping isometric drawing. For maintenance, repair, and operations (MRO) procurement, matching the existing head type is often mandatory to avoid audit findings.

When to Select a Square Head Plug Instead of a Hex Plug

Based on the design differences outlined above, the following scenarios typically favor choosing an ASME B16.11 Square Head Plug over a hex plug:

1. High-torque and high-vibration environments. When a plug must be installed at high torque and will experience ongoing mechanical vibration — for example, on the discharge line of a reciprocating compressor or near a large motor-driven pump — the square head's superior grip and resistance to loosening make it the safer and more reliable choice.

2. Limited or awkward tool access. In tight equipment skids, instrument panels, or crowded pipe racks where a standard socket wrench cannot achieve a full swing arc, a square drive with an extension bar or a pipe wrench may be the only practical installation method. Square head plugs accommodate these constrained-access situations much more readily than hex plugs, which often require a straight-on socket approach.

3. Legacy system replacement and MRO. If the existing piping documentation, isometric drawings, or original equipment manufacturer (OEM) manuals specify square head plugs, substituting hex plugs can create a non-conformance during regulatory audits or client inspections. Maintaining specification consistency is especially critical in regulated industries such as nuclear power, aerospace, and defense, where every fitting must match the certified design basis.

4. Tamper resistance and safety. Square head plugs are less commonly installed than hex plugs, which means they are less likely to be removed by unauthorized personnel using ordinary hand tools. In utility gas systems, fire protection lines, and chemical processing plants where unauthorized disassembly could create a serious safety hazard, the relative obscurity of the square head provides a modest but meaningful deterrent against casual tampering.

5. Custom or specialty tooling setups. Some automated torqueing systems and production-line fixtures are configured specifically for square-drive fittings. In manufacturing environments where plugs are installed by pneumatic or electric torque tools fitted with square-drive adapters, using square head plugs streamlines the assembly process and reduces tool changeover time on the production floor.

Material, Pressure Class, and Temperature Considerations
​​​​​​​

Regardless of head style, all ASME B16.11 plugs must meet the same material and pressure-temperature requirements. The selection of head type should always be made in conjunction with the correct material grade and pressure class, as these parameters determine the fitting's suitability for the intended service.

Carbon steel (ASTM A105) is the most widely used material for general-purpose industrial piping, suitable for temperatures from approximately -20°C to +425°C (-4°F to +800°F) depending on the pressure class. It is standard in oil and gas gathering, petrochemical processing, and fossil power generation applications where corrosion is not the primary concern.

Stainless steel (ASTM A182 F304/F304L, F316/F316L) offers superior corrosion resistance. F304 and its low-carbon variant F304L are appropriate for general corrosive service, while F316 and F316L, with their molybdenum addition, are preferred for chloride-bearing environments, marine service, and pharmaceutical or food-grade piping. The low-carbon "L" variants resist intergranular corrosion after exposure to welding heat, which is important in fabricated assemblies.

Alloy steels such as ASTM A182 F11, F22, and F91 are used in high-temperature, high-pressure steam service and refinery hydroprocessing units where creep resistance and hydrogen embrittlement resistance are essential. These materials require controlled heat treatment and often come with additional documentation requirements.

Pressure class selection depends on the system design pressure and temperature. Class 3000 is the most common rating for general utility and process piping. Class 6000 is used for higher-pressure process lines and injection systems, while Class 9000 (socket-weld only) applies to the most severe high-pressure services. It is important to note that the pressure rating of a threaded fitting decreases as temperature increases, per the derating tables published in ASME B16.11, so designers must always verify the rating at the actual operating temperature rather than at ambient conditions.

Installation and Maintenance Best Practices

Proper installation is essential to ensure a leak-free seal and long service life for any threaded plug, including square head variants. The following practices apply across all head types but are particularly relevant for square head plugs given their common use in high-vibration and hard-to-access locations.

Thread preparation. Before installation, clean the male and female threads thoroughly of all dirt, grease, metal chips, and residual sealant from previous service. Apply a suitable thread sealant — PTFE tape, pipe dope, or anaerobic thread locker — according to the service fluid, pressure, and temperature. For gas service, use a sealant explicitly compatible with the gas type and certified for the applicable pressure rating.

Thread engagement. Hand-tighten the plug first to ensure proper thread alignment and avoid cross-threading, then apply the specified torque with the appropriate tool. For square head plugs, use a square-drive socket of the correct size or a pipe wrench applied squarely to the flats to avoid marring the head surface. Avoid using a hammer or impact tool, as this can crack the forged head or damage the threads.

Torque values. While ASME B16.11 does not specify installation torque values — these are typically provided by the applicable piping code, such as ASME B31.3, or the end user's engineering specification — a general guideline is to tighten to the point where the plug is firmly seated and the threads are fully engaged. Over-torquing can crack the fitting body or strip the female threads, particularly in stainless steel which is prone to galling under high friction.

Inspection and re-torque. After system pressurization and during initial operation, inspect all plug connections for signs of leakage. In high-vibration environments, schedule periodic re-torque checks as part of routine preventive maintenance. Replace any plug that shows visible signs of thread damage, corrosion pitting, or head deformation, as these conditions compromise the integrity of the seal.

Industry Applications

Square head plugs conforming to ASME B16.11 find use across a broad spectrum of industries, each with its own set of operating conditions that may favor the square head design:

Oil and gas: Wellhead assemblies, choke manifolds, pipeline test ports, and offshore platform utility piping where vibration and remote location are common factors.

Petrochemical and chemical processing: Reactor loops, distillation column instrumentation taps, and specialty chemical transfer lines where corrosion-resistant stainless or alloy grades are required and tool access may be restricted by insulation.

Power generation: Boiler feedwater systems, steam auxiliary lines, and turbine lube oil piping in both fossil and nuclear plants, where specification compliance and tamper resistance are paramount.

Marine and shipbuilding: Ballast water systems, fuel oil lines, and deck piping where vibration, space constraints, and saltwater corrosion are constant challenges.

Pharmaceutical and food and beverage: Sanitary-grade stainless steel systems where cleanability, FDA compliance, and non-galling thread performance are required.

Municipal utilities: Natural gas distribution networks, water treatment plants, and district heating systems where unauthorized tampering is a safety concern.

Pulp and paper: Black liquor lines, bleach plant piping, and steam condensate systems where aggressive chemistry and high vibration coexist.

In each of these sectors, the choice between square and hex head plugs depends on the specific combination of torque requirements, tool access, vibration exposure, and specification compliance discussed in the preceding sections.

Frequently Asked Questions (FAQs)

Q1: Are square head plugs and hex head plugs interchangeable?

A: Functionally, yes — both perform the same end-sealing role and share the same ASME B16.11 dimensional and pressure ratings for a given NPS and class. However, they are not always interchangeable from a specification or tooling standpoint. If the project specification or existing piping documentation calls for square head plugs, substituting hex plugs may constitute a non-conformance that requires a formal engineering change request.

Q2: Can I use a regular open-end wrench on a square head plug?

A: An adjustable wrench or pipe wrench can grip a square head, but a standard fixed open-end wrench sized for hex fittings will not seat correctly and may slip or round the corners. The recommended tool is a square-drive socket of the matching size or a properly sized pipe wrench applied squarely to the flats.

Q3: Which head type provides better torque capacity?

A: Both types are manufactured from the same forged material and meet the same ASME B16.11 strength requirements, so their theoretical torque capacity is identical. In practice, however, square heads can offer better grip with certain wrenching tools and are less prone to corner rounding under heavy or repeated torque, but the real-world difference is application-dependent and influenced by tool quality and operator technique.

Q4: What sizes and pressure classes are available for square head plugs?

A: Under ASME B16.11, threaded square head plugs are available in NPS 1/8" to 4" — though most commonly used up to 1-1/2" — and in pressure Classes 2000, 3000, and 6000. Socket-weld versions are not standard for plugs, as plugs are inherently threaded end-closure fittings. Custom sizes and non-standard classes may be available from specialized manufacturers on request.

Q5: How do I determine whether my project requires square head or hex head plugs?

A: Start by consulting the project's piping specification, isometric drawings, or OEM documentation. If no head type is explicitly specified, hex head plugs are the industry default for general service. Choose square head plugs when one or more of the following conditions apply: high mechanical vibration, limited or awkward tool access, legacy system compatibility requirements, a need for tamper resistance, or the use of automated square-drive torqueing equipment.

Q6: Do square head plugs cost more than hex plugs?

A: In most cases, the price difference is minimal for standard carbon steel and stainless steel grades. Both are produced from the same forged bar stock and require similar machining, so the cost premium for a square head is typically small. For exotic alloy grades or large-quantity orders, it is advisable to request comparative quotations from your supplier.
