Bushing ASME B16.11: Critical Roles and Professional Applications in Industrial Pipeline Systems

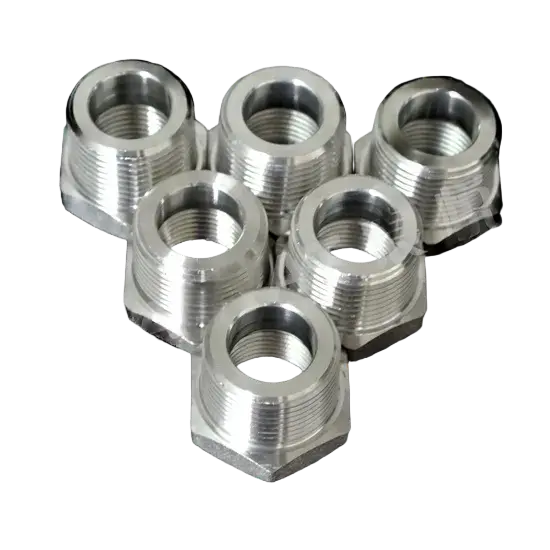

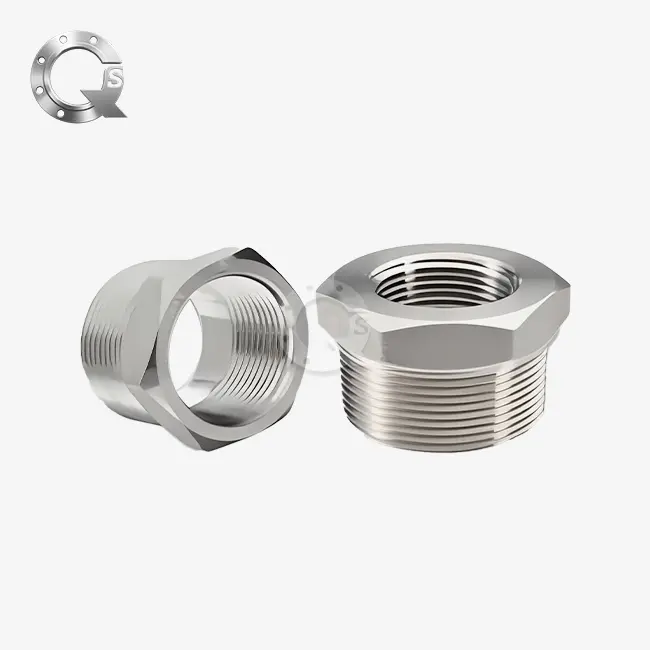

Bushing ASME B16.11 defines the unified manufacturing and performance standards for high-pressure forged pipeline fittings widely adopted in global industrial piping projects. Covering plugs, bushings and transition fittings for threaded and socket-weld connections, this authoritative ASME specification ensures dimensional uniformity, pressure resistance and operational safety for small-bore pipeline components. As a foundational industrial standard, it standardizes core parameters to eliminate assembly errors and system leakage risks in complex pipeline layouts.

Fundamental Overview of Bushing ASME B16.11 Standard

Issued and updated by the American Society of Mechanical Engineers, Bushing ASME B16.11 is a globally recognized industrial specification tailored for forged pipe fittings used in high-pressure fluid transmission systems. Unlike ordinary commercial pipe fitting standards, this specification exclusively applies to integrally forged steel fittings, covering carbon steel, stainless steel and alloy steel materials to adapt to diverse medium and temperature working conditions. It precisely regulates product size range, wall thickness tolerance, thread accuracy and pressure-bearing grades, forming a complete quality assessment system for industrial pipeline end fittings and sealing components.

The standard covers product sizes from 1/8 inch to 4 inches, with three mainstream pressure classes including 3000LB, 6000LB and 9000LB, fully matching the pressure requirements of high-pressure pipelines in petrochemical, thermal power, oil and gas transmission industries. All fittings manufactured in compliance with this standard must undergo strict forging forming, heat treatment and non-destructive testing, ensuring stable mechanical properties and long-term operational reliability in harsh industrial environments. This standardized specification has become a universal industry benchmark for high-pressure pipeline auxiliary fittings worldwide.

Core Functions of Standardized Plug Fittings Under ASME B16.11 Specifications

As a key supporting component under this industrial piping standard, square head plug fittings undertake multiple irreplaceable core functions in industrial pipeline system operation. Most industrial pipelines reserve vent ports, drain ports and standby branch interfaces during design and construction to facilitate later maintenance, pressure testing and system expansion. Without standardized sealing components, these open interfaces will cause medium leakage, external impurity intrusion and continuous system pressure loss, seriously affecting pipeline operational stability.

First, reliable static sealing is the primary function of these standard plugs. The tapered NPT thread design compliant with ASME B16.11 specifications realizes self-tightening sealing through precise thread matching, requiring no additional gaskets. This integrated sealing structure effectively blocks liquid, gas and steam media in high-pressure pipelines, avoiding medium waste and environmental pollution caused by port leakage. Second, the fittings support pipeline pressure testing and commissioning. Their high pressure-bearing capacity can withstand ultra-high test pressure, ensuring accurate pressure test data and reliable system commissioning results.

Third, standardized plug fittings simplify daily pipeline maintenance and system upgrade work. The optimized square head structural design provides stable stress points for conventional installation tools, enabling fast disassembly and assembly without professional special equipment. When pipeline cleaning, component replacement or branch expansion is required, construction personnel can quickly open reserved ports, avoiding full-line pipeline shutdown and significantly improving industrial operation and maintenance efficiency.

Structural and Performance Advantages of ASME B16.11 Compliant Plug Fittings

Fittings manufactured per this official ASME piping standard possess prominent structural and performance advantages compared with ordinary cast or welded pipe plugs. In terms of production technology, they adopt one-piece forging molding with no welding seams or structural gaps, fundamentally avoiding structural fracture and medium leakage risks under high pressure and high vibration working conditions. The uniform wall thickness design ensures balanced pressure bearing of the whole component, adapting to long-term continuous industrial operation.

In terms of structural design, the square head structure of standard plugs effectively solves the slipping problem of traditional round-head plugs during installation. The equal-side square design increases the contact area with wrench tools, ensuring uniform torque transmission and thorough thread locking, which greatly improves sealing tightness. In terms of material adaptation, the standard supports diversified high-quality steel materials, including ASTM A105 carbon steel for conventional high-temperature and high-pressure scenarios, and ASTM A182 series stainless steel for corrosive working environments, realizing wide industrial applicability.

In terms of service life and stability, these standardized forged fittings feature excellent vibration resistance and aging resistance. The precise thread tolerance control avoids thread loosening caused by long-term pipeline vibration, maintaining stable sealing performance for years. Meanwhile, the standardized dimensional design ensures perfect compatibility with global mainstream pipeline equipment, reducing engineering matching costs and improving pipeline assembly efficiency.

Main Industrial Application Scenarios

Standard pipeline fittings complying with this ASME industrial norm are widely used in high-standard industrial pipeline systems that require high pressure resistance and tight sealing. In the petrochemical industry, they are applied to seal standby ports and detection interfaces of oil, natural gas and chemical medium transmission pipelines, ensuring safe and stable transmission of high-pressure flammable and corrosive media. In thermal power and new energy power plants, these standard plugs are used for sealing steam pipeline drain ports and vent ports, adapting to ultra-high temperature and pressure working conditions.

In marine engineering and offshore oil and gas projects, stainless steel fittings conforming to the specification resist seawater corrosion and marine atmospheric oxidation, meeting long-term marine service requirements. In hydraulic and pneumatic precision equipment systems, their high-precision sealing performance ensures stable system pressure, avoiding equipment operation errors caused by pressure fluctuation. Additionally, they are widely applied in pharmaceutical, food processing and metallurgical industries, becoming essential supporting components for high-standard industrial pipeline systems.

FAQs

Q1: What core differences exist between standard-compliant plugs and ordinary pipe plugs?

A1: Ordinary pipe plugs are mostly produced by casting or welding processes, with low dimensional accuracy, unstable pressure resistance and poor sealing performance, only suitable for low-pressure civilian pipelines. In contrast, standard-compliant plugs adopt integral forging technology, with strictly standardized dimensions, thread precision and pressure-bearing grades. They feature high pressure resistance, vibration resistance and reusable performance, specially designed for industrial high-pressure pipeline systems with strict safety standards.

Q2: What pressure levels and sizes do standard forged piping fittings support?

A2: In line with official ASME industrial piping specifications, the full range of plug and bushing fittings covers sizes from 1/8 inch to 4 inches, supporting three mainstream industrial pressure classes: 3000LB, 6000LB and 9000LB. The complete size and pressure grade system can meet the matching needs of most small-bore high-pressure industrial pipelines, and supports customized processing of special specifications for unique engineering working conditions.

Q3: Are ASME B16.11 standard plug fittings reusable?

A3: Yes. The integral forging structure and high-precision thread design of these standard fittings ensure no structural deformation or damage after multiple disassembly and assembly. As long as the thread surface is intact and free from severe corrosion, the plugs can be reused repeatedly, effectively reducing enterprise pipeline operation, maintenance and replacement costs.

Q4: How to select suitable materials for standard industrial piping fittings according to working conditions?

A4: For conventional high-pressure water and steam pipelines with normal temperature, ASTM A105 carbon steel fittings are the most cost-effective choice. For corrosive media such as acid, alkali and salt, and humid marine environments, ASTM A182 F304 and F316 stainless steel fittings are recommended for excellent corrosion resistance. For ultra-high temperature and ultra-high pressure special industrial scenarios, customized alloy steel fittings that meet official ASME piping standards can be selected.

Contact QinSteel for Reliable Bushing ASME B16.11 Pipeline Fitting Solutions

As a professional global manufacturer and supplier of standard industrial pipeline fittings, QinSteel focuses on the R&D, production and customization of high-quality Bushing ASME B16.11 compliant products, including square head plugs, pipe bushings and transition fittings. We have advanced integral forging production lines and a complete quality inspection system, with all products strictly implemented in accordance with ASME international standards. Every batch of products is equipped with complete material certification, pressure test reports and factory quality inspection documents, ensuring full compliance with international engineering acceptance standards.

We support both standard spot supply and non-standard customized processing, providing one-stop pipeline fitting matching solutions for petrochemical, power generation, marine engineering, hydraulic engineering and other industrial projects. Our professional technical team can provide targeted product selection guidance, parameter matching and after-sales technical support according to your project’s working temperature, pressure and medium characteristics. For product quotations, detailed technical parameter sheets, sample applications and customized service consultation, please feel free to contact us via email: info@sxqinsteel.com. We will provide professional and cost-effective pipeline fitting solutions within 24 hours.

References

1. ASME B16.11-2021, Forged Fittings, Socket-Welding and Threaded, American Society of Mechanical Engineers

2. ASTM A105/A105M-22, Standard Specification for Carbon Steel Forgings for Piping Applications

3. ASTM A182/A182M-23, Standard Specification for Forged or Rolled Alloy and Stainless Steel Pipe Flanges, Forged Fittings, and Valves and Parts for High-Temperature Service

4. MSS SP-83, Standard Practice for Steel Socket-Welding and Threaded Fittings for High-Pressure Industrial Service

5. Industrial Piping Engineering Design Manual, 6th Edition, High-Pressure Pipeline Fitting Application Specifications
