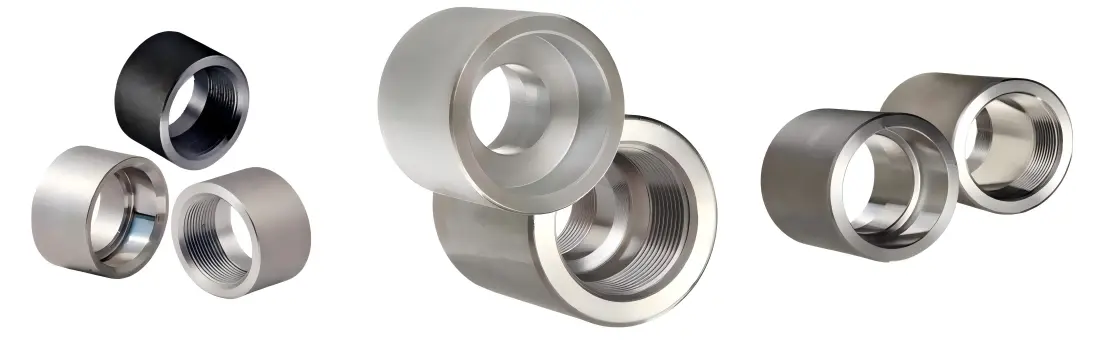

Types, Specifications and Industrial Applications of Coupling ASME B16.11

Coupling ASME B16.11 refers to a series of standardized forged pipe coupling fittings formulated by the American Society of Mechanical Engineers, which are widely adopted in high-pressure and high-temperature industrial piping systems worldwide. This standard specifically governs the dimensional tolerance, pressure rating, material requirements, and structural classification of forged couplings, ensuring universal compatibility and operational safety in petrochemical, power generation, and hydraulic piping projects. To help industry practitioners select appropriate pipe fittings accurately, this article systematically sorts out the core types, structural characteristics, applicable scenarios and technical parameters of standard-compliant couplings.

Basic Overview of ASME B16.11 Coupling Standards

ASME B16.11 is a core industrial standard for forged steel pipe fittings, focusing on small-bore piping fittings with nominal sizes ranging from 1/8 inch to 4 inches. Different from ordinary commercial pipe couplings, couplings manufactured per this standard are all forged integrally, featuring compact structure, high mechanical strength and excellent pressure resistance. The standard divides fittings into two mainstream connection forms: threaded type and socket welding type, with differentiated pressure grade settings to adapt to diverse industrial working conditions. In industrial piping design, engineers prioritize Coupling ASME B16.11 for critical pipeline connections due to its strict quality control standards and stable operational performance.

In terms of pressure classification, threaded couplings cover Class 2000, 3000 and 6000 pressure grades, while socket welding couplings support Class 3000, 6000 and 9000 higher pressure levels. This hierarchical design enables the fittings to adapt to working pressures from conventional medium pressure to ultra-high pressure, covering most industrial fluid transmission scenarios such as steam, oil, natural gas and chemical media. Meanwhile, the standard clarifies unified dimensional specifications, thread standards and welding groove requirements, realizing standardized interchangeability of fittings from different manufacturers.

Core Classification of Coupling ASME B16.11

Based on structural form, connection mode and functional purpose, standard couplings are mainly divided into two major categories: full coupling and half coupling, and each category is further split into threaded and socket welding subtypes. Each type has unique structural advantages and targeted application scenarios, forming a complete product system for small-bore pipeline connection and repair.

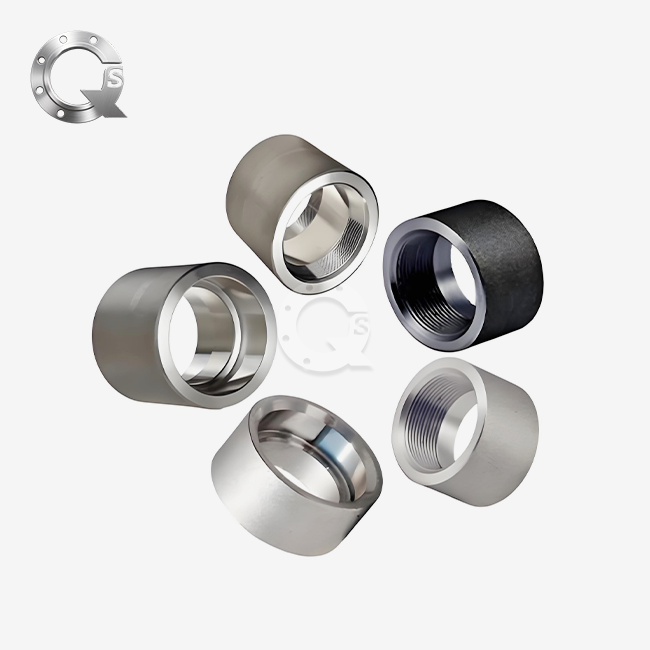

1. Full Coupling

A full coupling is a through-type pipe fitting with identical connection structures at both ends, mainly used for butt connection and extension of two sections of pipelines. It is the most commonly used type in the Coupling ASME B16.11 product line, and can be subdivided into threaded full coupling and socket welding full coupling according to connection modes.

The threaded full coupling is equipped with standard NPT tapered internal threads at both ends, requiring no welding during installation. It features simple operation, convenient disassembly and maintenance, and is suitable for low-pressure, low-vibration and frequently maintained pipeline systems, such as instrument piping, domestic auxiliary pipelines and low-pressure fluid transmission pipelines. The threads strictly follow ASME standard tolerances, ensuring tight thread engagement and effective prevention of medium leakage under rated pressure.

The socket welding full coupling adopts double-end socket structure. During construction, the pipe end is inserted into the socket groove, and fixed and sealed by fillet welding at the shoulder position. Compared with threaded types, socket welding full couplings have higher structural rigidity and anti-fatigue performance, with better sealing stability in high-pressure and high-vibration working environments. They are widely used in core process pipelines of petrochemical, thermal power and nuclear power industries, and can stably operate for a long time under Class 3000 to 9000 high pressure grades.

2. Half Coupling

A half coupling is a single-sided connection fitting with only one end equipped with thread or socket structure, and the other end is a flat smooth end. It is mainly used for branch pipeline connection, pipeline opening and equipment interface docking, making up for the functional deficiency of full couplings in pipeline branching scenarios.

Threaded half couplings are commonly used for temporary pipeline branching and instrument installation interfaces. Its single-end threaded design can quickly complete pipeline branching without cutting off the main pipeline, improving construction efficiency. Socket welding half couplings are mostly applied in high-pressure branch pipeline laying. The welding fixed structure ensures high connection strength, avoiding interface loosening and leakage caused by medium impact and pipeline vibration.

Key Material Matching and Performance Advantages

Coupling ASME B16.11 does not limit specific material types, but matches applicable materials according to working temperature, pressure and medium characteristics, ensuring the comprehensive performance of fittings. The mainstream supporting materials include ASTM A105 carbon steel, ASTM A182 stainless steel and ASTM A350 low-temperature carbon steel, covering conventional temperature, high temperature and low-temperature working conditions respectively.

ASTM A105 carbon steel couplings are the most cost-effective option, suitable for normal temperature and medium-pressure conventional industrial pipelines, with good ductility and weldability. ASTM A182 F304/F316 stainless steel couplings have excellent corrosion resistance, adapting to corrosive media such as acid, alkali and salt water, and are widely used in chemical, pharmaceutical and marine piping systems. ASTM A350 series low-temperature steel couplings can maintain stable mechanical toughness in ultra-low temperature environments, preventing brittle fracture of fittings, and are applied in low-temperature cold storage and liquefied gas transmission pipelines.

Compared with non-standard customized couplings, standardized Coupling ASME B16.11 has prominent advantages: unified dimensional standards realize cross-brand interchangeability, reducing equipment maintenance and replacement costs; integral forging process eliminates internal pores and cracks of fittings, improving overall structural stability; hierarchical pressure grade design realizes precise matching of working conditions, avoiding safety hazards caused by improper model selection.

Common Application Scenarios in Industrial Piping

Thanks to its standardized design and reliable performance, Coupling ASME B16.11 covers almost all small-bore high-pressure industrial piping systems. In the petrochemical industry, it is used for process pipeline connection of oil extraction, refining and chemical reaction units, adapting to high-pressure and corrosive oil and gas media. In the power industry, it is applied to steam pipeline, cooling water pipeline and instrument control pipeline connection of thermal power, hydropower and new energy power plants.

In addition, this series of couplings are also widely used in marine engineering, aerospace, hydraulic engineering and mechanical equipment supporting piping. For small-bore pipelines below 4 inches that require high sealing performance and structural stability, standard couplings can effectively reduce pipeline leakage risks and extend the service life of piping systems, becoming the preferred fitting type for industrial pipeline standardized construction.

FAQs

Q1: What is the difference between ASME B16.11 and ordinary pipe coupling standards?

A1: ASME B16.11 specially targets forged high-pressure small-bore couplings, with stricter requirements on forging process, dimensional tolerance and pressure resistance. Ordinary commercial couplings are mostly cast or seamless pipe processed, with low pressure resistance and poor standardization, and cannot adapt to high-pressure and high-temperature industrial working conditions.

Q2: How to choose threaded or socket welding Coupling ASME B16.11?

A2: Threaded couplings are suitable for low-pressure, non-vibration and easy-maintenance pipelines, with convenient installation and disassembly. Socket welding couplings are applicable to high-pressure, high-vibration and long-term stable operation pipelines, with higher connection strength and sealing reliability.

Q3: What is the size range of standard ASME B16.11 couplings?

A3: The standard covers nominal sizes from 1/8 inch to 4 inches, covering all common small-bore industrial pipeline specifications, and supports customized processing of special sizes on the premise of conforming to standard technical parameters.

Q4: Do ASME B16.11 couplings support low-temperature working environments?

A4: Yes. By matching ASTM A350 low-temperature steel materials, the couplings can adapt to ultra-low temperature working conditions, meeting the piping use requirements of liquefied natural gas, cold storage and other low-temperature scenarios.

Contact QinSteel for Premium Coupling ASME B16.11 Solutions

As a professional manufacturer and supplier of standardized forged pipe fittings, QinSteel has long been committed to providing high-quality, standard-compliant Coupling ASME B16.11 products and one-stop piping solution services. Our product lineup covers full couplings, half couplings, threaded and socket welding types with complete pressure grades and material specifications, fully complying with ASME B16.11 standard requirements and supporting customized processing according to customer engineering needs.

We implement strict quality inspection procedures for all products, including dimensional tolerance detection, pressure resistance test, material composition analysis and non-destructive flaw detection, to ensure that each batch of couplings meets industrial high-standard use requirements. With rich engineering supporting experience, we can provide professional model selection guidance, technical parameter consultation and after-sales service for global customers in petrochemical, power, marine and other industries.

For product quotation, technical parameter consultation, customized service and bulk order cooperation, please feel free to contact our professional business team via email: info@sxqinsteel.com. We will reply to your inquiry within 24 hours and provide targeted high-quality piping fitting solutions.
