Ring Joint Face Flange Sealing Mechanism Explained

As a key sealing technology, ring joint face flanges are designed to work in harsh industrial settings with high pressures. Specialized parts like these have holes that are precisely made to fit metal ring gaskets, making a very solid metal-to-metal seal. The closing device works by carefully pressing oval or octagonal gaskets into specific holes. This keeps the system from leaking even when pressures hit 2500lb. In places like oil and gas activities, chemicals processing plants, and power plants where standard closing methods don't work, this technology has become essential.

Understanding Ring Joint Face Flanges and Their Sealing Principles

Ring joint technology is based on making a barrier between pipeline parts that can't be broken through by touching metal to metal. In contrast to regular flanges, which use soft seals, these systems press specially made metal rings into precisely cut holes, creating a huge closing force that rises as the internal pressure rises.

Core Components and Design Features

The three main parts of a ring joint sealing system are the flange face with cut holes, the metal ring gasket, and the bolt assembly that applies pressure. The holes are precisely made to have dimensions that are either oval or hexagonal, which match the forms of the gaskets they fit. This careful engineering makes sure that the stress is spread evenly across the sealing surface, stopping stress buildup spots that could cause the seal to fail.

The groove geometry plays a crucial role in sealing effectiveness. When high pressures are present, oval grooves work best for closing, while octagonal grooves work best for situations with very high pressures. The larger hexagonal shape makes more close metal contact, which makes it perfect for high-stakes situations where leak protection is essential.

Industry Standards and Compliance Requirements

Ring joint flanges are made and used in accordance with a number of international standards. The ASME B16.5 standards set the size requirements for normal pressure classes, and the API 6A standards cover uses in the upstream petroleum business. These standards make sure that all industries can work together and follow safety rules.

ASME B16.47 covers flanges with diameters greater than 24 inches, which are needed for big pipeline projects. The European standard EN 1092-1 sets high standards for the quality of manufacturing and the ability to track materials. These detailed standards let purchasing teams choose parts that work together, no matter where the suppliers are located or where the project is located.

Gasket Material Selection and Performance

Metal ring seals are made from different metals based on how they will be used. When it comes to normal uses, soft iron is very easy to shape, and stainless steel is good at resisting rust in harsh conditions. Specialized metals, such as Inconel or Hastelloy, are used when high temperatures and chemical tolerance are needed.

The roughness of the gasket for ring joint flanges must be carefully matched to the material of the flange to make sure that the seal is good and no damage happens. Gaskets that are softer can better fit uneven surfaces, but they might not be good for high-pressure uses. When choosing seal materials for different uses, engineering teams have to weigh these things.

Technical Insights on Installation and Inspection for Optimal Sealing

For effective closing performance, it is absolutely necessary to follow the right fitting steps. Paying close attention to every detail is important for this process, as even small mistakes can damage the system and pose safety risks.

Step-by-Step Installation Protocol

Before installation can start, all closing surfaces must be cleaned thoroughly to get rid of any dirt, oil, or rust that might get in the way of metal contact. Surface finish standards usually call for an average sharpness of 125 to 250 microinch, which can be reached by using the right cutting methods. Before putting it together, you need to fix any scratches, gouges, or rust.

Gasket placement requires careful attention to groove alignment and centering. The seal needs to fit properly in the groove and not stick or warp. To make sure that the load is spread evenly across the flange face, the bolts are installed in a certain cross-pattern order. To make sure the seal settles properly under pressure, the torque values must be applied slowly over a number of passes.

Temperature considerations become critical during installation. If you don't handle stress properly, differences in thermal expansion between plate materials and seals can cause stress to build up. The installation steps should include information about the expected working temperatures and the right setup settings.

Bolt Torque Management and Load Distribution

Getting the right bolt tightness is important for closing well and avoiding over-stress situations. The most accurate way to handle the load is with hydraulic tensioning tools, especially for big openings where human torque wrenches are not useful. Bolt extension measures show that the right amount of strain was applied.

To spread the load across several bolts, you need to pay close attention to how the bolt holes line up and how the threads connect. When you load something unevenly, you create stress clusters that can damage a seal or bend a flange. Quality control methods should check the state and fitting of the bolts before they are put together.

Inspection and Maintenance Best Practices

Inspection programs that happen on a regular basis help find problems before they cause leaks or failures. A visual check should focus on the state of the seal, the bolts' ability to hold their tightness, and any signs of rust or mechanical damage. Monitoring ultrasonic bolt tightness gives a number value for figuring out how well preload is kept over time.

Depending on how important the leak is, there are a variety of ways to find it, from simple bubble tests to complex helium monitoring systems. Protocols for pressure testing should be based on relevant codes and standards, and test pressures and hold times should be written down. Any problem that is found needs to be looked into and fixed right away.

Comparative Analysis: Ring Joint Flanges vs Alternative Flange Types

Learning about the changes in performance between different types of flanges helps you make smart purchasing choices based on your application needs and budget.

Performance Comparison Across Pressure Classes

When used in high-pressure situations, ring joint face flanges technology works better than raised face or flat face forms. For low pressures, raised face flanges with spiral wound seals may be enough. But for working pressures above 900 psi, ring joint systems are the most reliable option. The metal-to-metal concept of closing keeps its integrity even when pressure changes, which could cause a soft gasket to fail.

Ring joint seals stay leak-tight through thousands of pressure cycles, while soft gasket systems may need to be retightened or have their gaskets replaced every so often. This stability benefit is especially useful for sites that are far away and hard to reach for upkeep, which can be expensive or not possible at all.

Material Considerations and Corrosion Resistance

ASTM A105 carbon steel is very strong and works well in most industry settings. Its cost-to-performance ratio is just right for most setups. The material's mechanical features don't change much when the temperature does, so it can be used in both normal and high temperatures.

Stainless steel types A182 F304 and F316 meet the needs for rust protection in chemical processing and naval settings. The chromium in F316 protects against oxides passively, and the molybdenum adds to its resistance to chlorides. However, these materials are very expensive, but they last longer in harsh settings.

In low-temperature situations where regular carbon steel breaks easily, specialty metals like A350 LF2 are used. For cold and arctic uses, these materials need to be able to stay flexible at temperatures as low as -46°C, so they go through a special heat process.

Gasket Technology Comparison

In challenging situations, metal ring seals are clearly better than other types of closing technology. When pressure is applied, soft gaskets may expand, but metal rings stay the same size no matter what the pressure is. Because of this feature, the seal doesn't need to be replaced during regular upkeep, which lowers the long-term cost of running the business.

Spiral wound seals work well in mild pressure situations, but they can't handle as much pressure as solid metal rings can. If it gets broken, the multi-layer design can make leak paths, but solid metal rings are more reliable at closing. When engineers choose the right closing technology, they have to think about these trade-offs.

Procurement Considerations for Ring Joint Face Flanges

To make sure the project is successful and the provider is reliable in the long term, buying must include a thorough review of their skills, quality processes, and delivery performance.

Vendor Qualification and Certification Requirements

When evaluating a supplier, manufacturing licenses and quality control methods should come first. ISO 9001 approval shows a dedication to quality systems, and API Q1 handles the unique needs of the oil and gas business. These certificates make sure that the production processes and paperwork systems are always the same.

As part of the standards for material approval, mill test reports must be produced that show the chemical make-up and mechanical qualities of the material. Positive material identification testing confirms the actual make-up of the material. This is especially important for important uses where mixing materials could have bad results. Third-party inspection services can be used to add extra checks when needed.

Cost Management and Lead Time Optimization

Pricing models are very different depending on the material chosen, the size needed, and the arrival date. Most of the time, standard sizes in popular materials are the best value. On the other hand, special specs may cost more. The total cost of ownership, which includes installation work and long-term upkeep needs, should be looked at by procurement teams.

Managing lead time becomes very important for sticking to the project plan. Suppliers who keep semi-finished parts in stock can often cut down on delivery times for urgent needs. Setting up blanket buy orders for expected needs helps make sure that big projects have enough capacity and good prices.

Custom Solutions and Engineering Support

For complicated uses, you might need special materials or custom-designed flanges like ring joint flanges that aren't covered by standard specs. Suppliers with their own technical teams can help with design and make sure the product can be made. This working together helps make ideas better for both performance and ease of production.

Technical support services should include help with installation, fixing problems, and figuring out what went wrong. These services are especially helpful for foreign projects that might not have a lot of help available on-site. Setting up clear support and contact routes helps make sure the project succeeds.

QinSteel's Expertise in Ring Joint Face Flanges

With 20 years of experience making precision flanges, we have a wide range of skills that allow us to serve the most difficult industry uses around the world. We know everything there is to know about ring joint technologies, from standard API requirements to custom-engineered solutions for particular working situations.

Comprehensive Product Portfolio and Manufacturing Capabilities

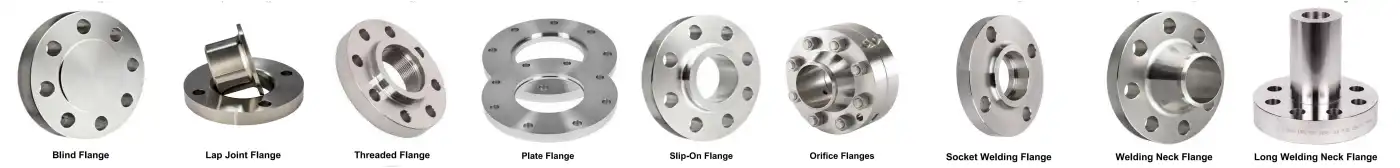

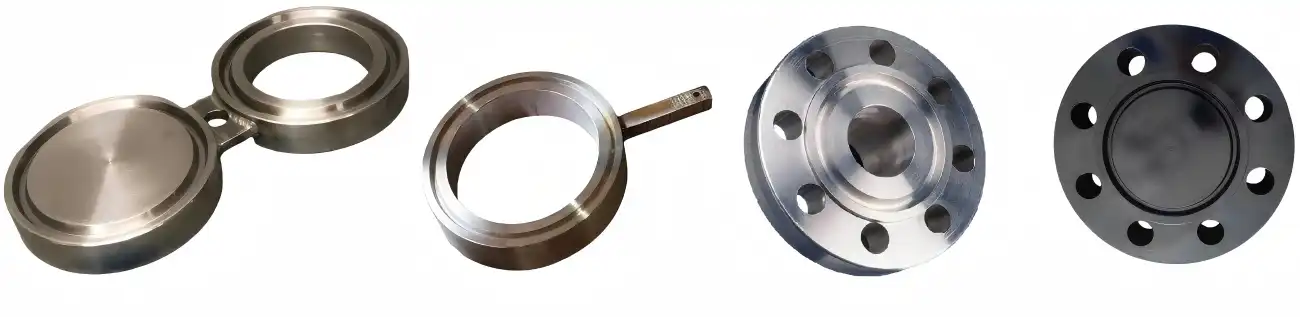

In our factories, we make ring joint flanges in eight different styles, such as welding neck, slip-on, socket welding, blind, threaded, lapped, sight blind, and opening. Because there are so many options, buyers can choose the best flange type for their pipes and fitting needs. Sizes from 1/2" to 60" (DN15 to DN1500) can be used for a wide range of tasks, from connecting instruments to large transmission pipes.

With pressure values ranging from 150lb to 2500lb, it can meet almost all industry pressure needs. The way we make things strictly follows the measurement limits set out in ASME B16.5 and other similar standards. There are different wall thickness choices, from Schedule 5s to XXS, to make sure that the power is right for each purpose.

For general uses, we know how to work with ASTM A105 and A105N carbon steel, and we have a lot of experience making things out of stainless steel and unique alloys. As part of our metalworking skills, we can do heat treatment methods that are necessary to meet certain mechanical property and stress release standards.

Quality Assurance and Global Compliance

Several checking steps are built into our quality control system at different stages of the manufacturing process. Coordinate measuring tools are used for dimensional checking to check against ASME B16.20 limits. Ultrasonic and magnetic particle screening are two types of non-destructive testing that can find problems below the surface that could affect performance.

Pressure tests can go up to 1.5 times the rated working pressure, which makes sure that the structure is still strong under normal conditions. Our hydrostatic testing tools can handle flanges of all sizes, even the biggest ones we sell. Certified test pressure readings and hold time proof are part of the test paperwork.

International compliance includes certificates from ASME, API, ISO, and PED, which make sure that the project will be accepted around the world. In oil and gas production, sour service uses are widespread. The NACE MR0175 qualification covers these. These certificates show that we are dedicated to meeting the strictest standards in the business.

Global Supply Chain and Technical Support

Strategic warehouse sites in Houston, Dubai, and Rotterdam make it possible to send quickly to the world's most important industry areas. Inventory management systems make sure that there are enough of popular sizes and types of materials in stock, which cuts down on delivery times for urgent needs. As part of our transportation services, we can provide special packing that will keep items from rusting or getting damaged while being shipped internationally.

As part of technical support services, engineers can help with choosing materials and giving fitting advice. Our applications engineers work directly with the technical teams of our customers to make sure that the right product is chosen for each set of circumstances. Working together helps avoid design mistakes that cost a lot of money and guarantees stable long-term performance.

Conclusion

Through precisely designed metal-to-metal contact, ring joint face flange technology offers the most reliable seals for high-pressure industrial uses. The wide range of types, materials, and pressure levels makes sure that they can work with a wide range of application needs in many different industries. When you put a system correctly and check it regularly, you can make it more reliable and reduce the amount of long-term care you need to do. To make sure the project goes well, buying teams should give manufacturers' certifications, quality systems, and expert help the most weight when choosing providers. Investing in ring joint technology pays off in the long run because it increases service life and lowers upkeep costs in harsh working conditions.

FAQs

What kinds of pressure values are there for ring joint face flanges?

According to ASME B16.5 standards, ring joint flanges are made in pressure classes that range from 150lb to 2500lb. Most of the time, the 600lb, 900lb, 1500lb, and 2500lb classes are used for high-pressure situations where ring joint sealing works best. The choice of pressure class is based on the application's unique design pressure, temperature, and safety factor needs.

How do I choose the right material for a seal for my use?

The choice of gasket material is based on the temperature, pressure, and chemical interaction needs of the application. For normal fuel work, soft iron valves close very well, while stainless steel is better for strong chemicals because it doesn't rust. Inconel and other specialty materials are used for high-temperature tasks above 800°F. Talking to material engineers will help you make the best choice for your unique working conditions.

What kind of repair should be done on ring joint flanges?

How often you inspect relies on how important the program is and how it is being used. Visual checks should be done once a month to look for signs of leaks, damaged bolts, and rust. Bolt tightness checks and gasket condition checks should be part of yearly full reviews. Based on the danger level and the needs of the process, high-pressure or important service uses may need inspections more often.

When ring joint flanges are taken apart, can they be used again?

The flange can be used again after it has been taken apart and its health has been checked. Groove areas need to be checked for damage, wear, or rust that could make the closing less effective. Minor flaws on the surface might be fixable by cutting, but major damage needs to be replaced with a new flange. To make sure that the closing works well, gaskets should always be changed with new ones.

How much force should be used during installation?

The bolt torque needs change depending on the size of the flange, the pressure class, and the bolt material requirements. The ASME PCC-1 standard has complete force tables for common uses. For big flanges or important jobs, hydraulic tensioning tools gives you more precise load control. Consulting maker specs and experienced engineers makes sure that the right fitting steps are used for each setup.

Partner with QinSteel for Premium Ring Joint Face Flanges Solutions

QinSteel is a reliable company that makes ring joint face flanges. Their facilities are GMP-certified, and they have thorough quality assurance programs that make sure their products are made without any problems. Our large stock of pre-machined parts lets us respond quickly to pressing project needs while still strictly following ASME, API, and foreign standards. Our global supply chain, which includes centers in Houston, Dubai, and Rotterdam, makes us stand out. We provide smooth shipping support for projects all over the world. Please email our engineering team at info@sxqinsteel.com to talk about your unique needs and experience the dependability that has made us the go-to seller for ring joint face flanges in the oil and gas, chemicals, and power generation industries.
