The ASME B16.11 Boss is one of the most underutilized forged fittings in industrial piping, yet it offers distinct advantages over more commonly specified branch connection options. While elbows, tees, couplings, and half couplings dominate procurement lists, the ASME B16.11 Boss remains surprisingly rare in many projects—not because of any performance shortcoming, but simply due to lack of awareness. This article explores why this forged fitting deserves far more attention and how it can outperform conventional alternatives in high-pressure, high-temperature applications.

What Exactly Is an ASME B16.11 Boss?

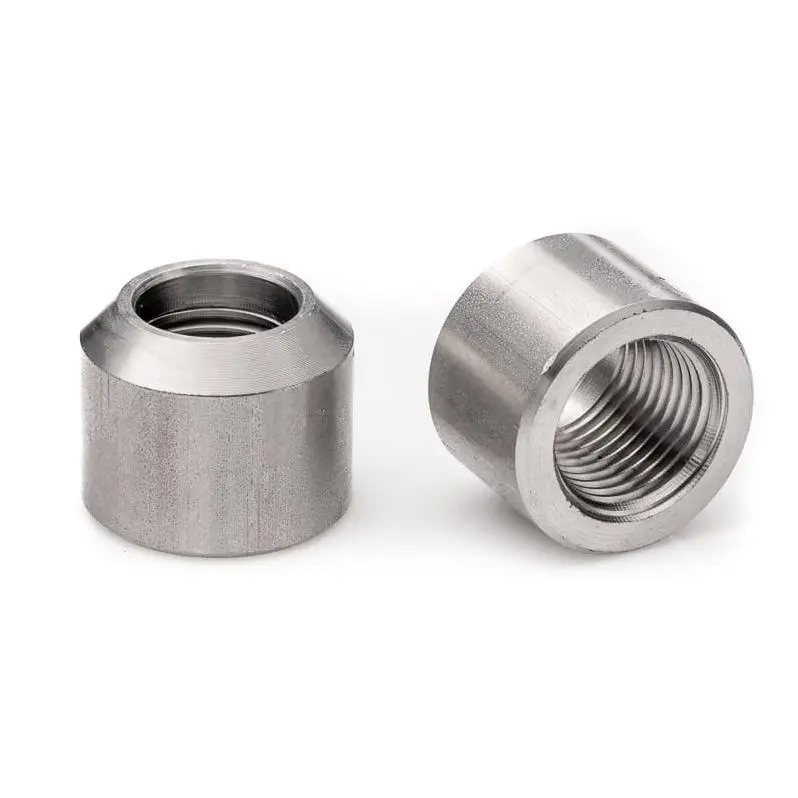

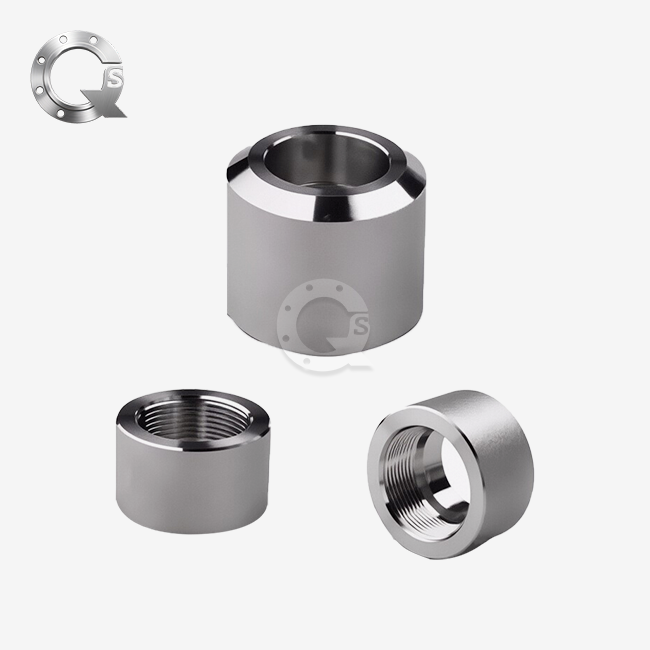

An ASME B16.11 Boss is a compact, forged fitting designed to be welded directly onto a larger pipe or vessel surface to create a branched outlet. It falls under the ASME B16.11 standard, which governs forged steel fittings, including both socket-welding and threaded (screwed) types. The ASME B16.11 standard covers ratings, dimensions, tolerances, marking, and material requirements for forged fittings.

B16.11 socket-welding fittings—including the boss—can be furnished in product forms such as 90° elbows, 45° elbows, crosses, tees, couplings, half couplings, bosses, caps, and couplets. Threaded versions of the boss are also available under the same standard.

Key Structural Configurations

The standard outlines two main internal profiles for the connection side of a B16.11 boss:

· Socket Weld Boss: Features an internal bore matching the outside diameter of the branch pipe, along with a distinct internal shoulder (socket depth) where the pipe rests before being fillet-welded.

· Threaded / Screwed Boss: Contains internal female threads—typically cut to ANSI/ASME B1.20.1 NPT (National Pipe Thread) parameters—allowing for direct, screw-in component installations.

Pressure Ratings and Size Range



The ASME B16.11 Boss is available in a comprehensive range of pressure classes and sizes:

The standard size range typically spans from NPS 1/8 to NPS 4 (DN 6 to DN 100). Class 9000 socket-welding bosses are available from NPS 1/2 to NPS 2.

Why Is This Forged Steel Boss So Rare Compared to Other Fittings?

Despite being fully standardized and technically superior in many scenarios, this forged steel boss remains less commonly specified than half couplings, threadolets, or weldolets. Several factors contribute to this rarity:

1. Lack of Familiarity Among Design Engineers

Many piping designers and engineers are simply more familiar with half couplings and branch outlet fittings like weldolets. The boss—sometimes referred to as a "welding boss" or "branch pipe"—does not always appear in standard procurement catalogs with the same prominence as its more common counterparts.

2. Misconception That It Is Identical to a Half Coupling

A common misconception is that the B16.11 boss is functionally identical to a half coupling. While they serve similar branch connection purposes, there is a critical difference: the boss features a bevelled end at an angle of 45°±2.5° with a root face of 1.6mm±0.76mm. This bevelled end is specifically designed to facilitate the welding process, providing a superior weld preparation that reduces the risk of weld defects. Half couplings, by contrast, lack this bevel.

3. Preference for Alternative Branch Connection Methods

In many projects, engineers default to weldolets, threadolets, or sockolets—especially when branch reinforcement is a concern. However, the forged steel boss, being a forged fitting, offers excellent grain flow and structural integrity that can match or exceed these alternatives.

B16.11 Boss vs. Half Coupling: A Critical Distinction

The most frequent comparison made is between the B16.11 boss and the half coupling. According to industry discussions, boss connections in B16.11 are nearly identical to half couplings with one crucial exception: the bevelled end.

The bevelled end of the B16.11 boss is not a minor detail—it significantly improves weld quality by providing a consistent groove that ensures proper penetration and reduces the likelihood of stress concentrations at the weld joint.

Applications Where the Forged Steel Boss Excels

The forged steel welding boss is used as a branch connection on pipe headers or as a nozzle connection on equipment. It resembles the function of a weld outlet, with a branch pipe joined by socket welding or threaded connection of the boss, which is then welded onto the external surface of the pipe header.

Primary Industries

· Oil and Gas: Connecting pipes in exploration and processing facilities. Used in oil and gas pipeline systems.

· Petrochemical and Chemical Processing: Handling corrosive substances in chemical processing plants.

· Power Generation: Used in high-temperature and high-pressure steam pipelines, as well as power plants and renewable energy systems.

· Refineries, Fertilizer, and Pharmaceutical Industries

· Water Treatment: Ensuring reliable connections in water filtration and distribution systems.

Specific Use Cases

· Pipeline sections requiring frequent inspection and maintenance

· Valve interfaces

· Pressure vessels and equipment nozzles

This boss is particularly preferred in high-pressure and high-temperature systems because of its excellent leak resistance, compact design, and mechanical strength. Forged bosses are machined from high-quality forgings to ensure superior grain flow and structural integrity.

Critical Dimension Parameters

When specifying an ASME B16.11 Boss, several essential dimensional parameters must be considered:

Sample Dimensions for B16.11 SW Boss (Class 3000)

Material Options for B16.11 Boss Fittings

The forged steel boss can be manufactured from a wide range of forged materials to suit specific service conditions:

· Carbon Steel: ASTM A105 is the most common specification for carbon steel forged bosses

· Low-Temperature Carbon Steel: ASTM A350 LF2 offers excellent low-temperature toughness

· Stainless Steel: Grades such as A182 F304L, F316L, and F317L provide corrosion resistance for aggressive environments

· Alloy Steels and Nickel Alloys: For specialized high-temperature or corrosive services

The forging process used to manufacture these forged bosses results in a dense structure without pores or cracks, providing excellent fatigue resistance.

Advantages of Choosing This Forged Fitting

4. Superior Weld Preparation: The 45° bevel with a 1.6mm root face is specifically engineered to facilitate proper welding. This design feature reduces the risk of incomplete penetration and ensures stronger, more reliable branch connections.

5. Compact Design: The B16.11 boss is a compact fitting that requires minimal space on the pipe header, making it ideal for installations where space is constrained.

6. High-Pressure Capability: With pressure ratings up to Class 9000 for socket-welding versions, this boss is suitable for the most demanding high-pressure applications.

7. Forged Integrity: The forging process produces a fitting with superior grain flow, eliminating the porosity and inclusions that can occur in cast fittings.

8. Versatility: Available in both socket-welding and threaded configurations, the forged steel boss adapts to various installation requirements and maintenance access needs.

FAQs

Q1: What is the difference between an ASME B16.11 Boss and a half coupling?

The primary difference is that the B16.11 boss features a bevelled end at 45°±2.5° with a root face of 1.6mm±0.76mm, which facilitates the welding process. Half couplings do not have this bevel. In all other dimensional aspects, they are nearly identical.

Q2: What pressure classes are available for B16.11 bosses?

Socket-welding bosses are available in Class 3000, 6000, and 9000. Threaded bosses are available in Class 2000, 3000, and 6000.

Q3: What size range does the B16.11 boss cover?

The standard size range typically spans from NPS 1/8 to NPS 4 (DN 6 to DN 100).

Q4: In which industries is this forged boss most commonly used?

The forged steel boss is widely used in oil and gas, petrochemical, chemical processing, power generation, refining, pharmaceutical, and water treatment industries.

Q5: Can the B16.11 boss be used for high-temperature applications?

Yes. The B16.11 boss is designed for high-pressure and high-temperature industrial pipeline systems. Service conditions are limited as provided by the applicable ASME Boiler and Pressure Vessel Code or ASME Code for the material of construction.

Q6: What materials are available for forged steel bosses?

Common materials include ASTM A105 carbon steel, ASTM A350 LF2 low-temperature steel, ASTM A182 stainless steel grades (F304L, F316L, F317L), and various alloy and nickel alloys.
