Same-Size ASME B16.11 Caps vs. ASME B16.9 Caps – What Really Matters in Practical Piping Applications?

When specifying a pipe closure for a new or revamped piping system, engineers often weigh the merits of an ASME B16.11 Cap against an ASME B16.9 Cap of the same nominal size. Although both serve the essential function of sealing pipe ends, their differences in fabrication, connection method, pressure rating, dimensional fit, and field performance are far from trivial. This article dissects those distinctions to guide you toward the most reliable and cost-effective choice.

Standards at a Glance – Forged vs. Wrought Fittings

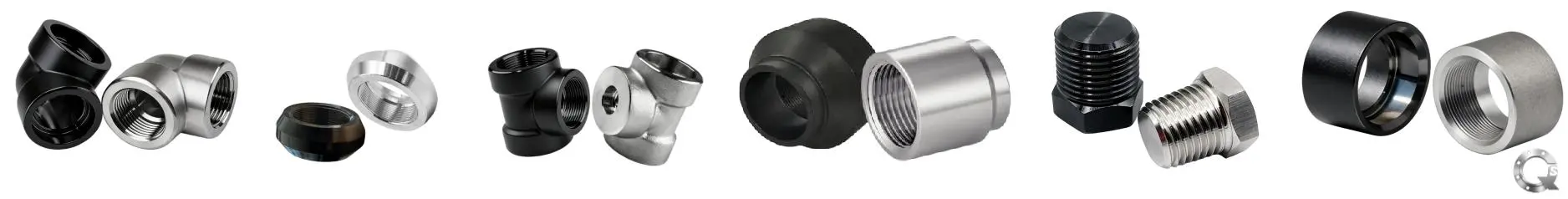

ASME B16.11 governs forged fittings with socket weld or threaded ends, covering sizes from NPS ⅛ to NPS 4 and pressure classes 2000, 3000, 6000, and 9000. ASME B16.9, by contrast, addresses wrought butt welding fittings from NPS ½ to NPS 48, with ratings tied directly to the matching pipe schedule. The foundational difference is connection style – socket/threaded versus full penetration butt weld – and that alone drives most practical selection criteria.

Manufacturing Route – Grain Flow and Material Consistency

Forged caps per B16.11 are hot formed from bar or billet, aligning the grain flow along the contour, which enhances resistance to impact and pressure cycling. Butt weld caps (B16.9) are formed from pipe or plate, preserving continuous grain but without the refinement of forging. Material grades also differ: ASTM A105/A182 for B16.11 versus ASTM A234/A403 for B16.9, so alloy selection must match service temperature and corrosivity.

Connection Types – Installation and Inspection Realities

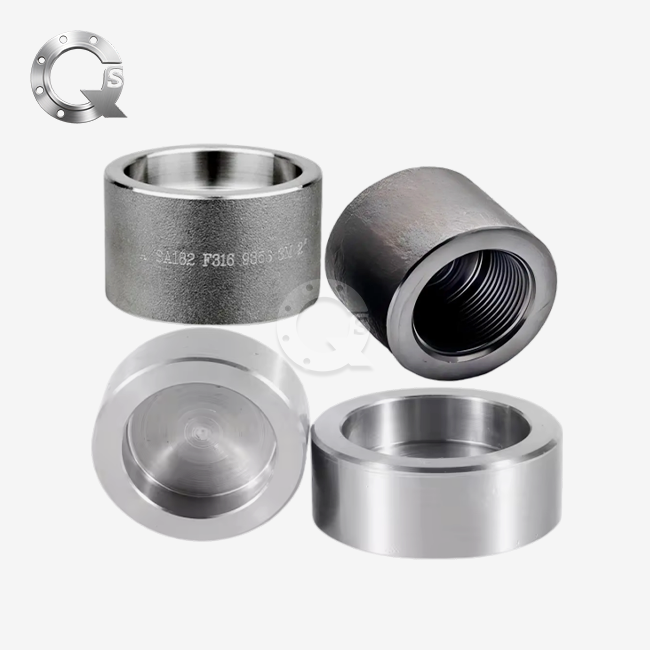

The B16.11 cap comes in socket weld (SW) and threaded (NPT) versions. Socket weld requires a fillet weld around the pipe, with a mandatory 1/16 inch gap for thermal expansion; threaded versions need no welding, making them ideal for temporary closures or frequent maintenance. Butt weld caps (B16.9) demand bevel preparation and full penetration welding, which enables volumetric NDT (RT or UT) – a critical advantage for high integrity services. Conversely, fillet welds on socket joints cannot be radiographed, limiting their use in safety critical lines.

Dimensional Scope – Size, Bore, and Compactness

B16.11 caps are physically compact and available only up to NPS 4, with a reduced bore at the connection that may cause flow restriction and crevice corrosion. B16.9 caps cover all larger diameters and maintain a full bore ID identical to the pipe, eliminating turbulence and erosion risks. For small bore systems (≤ NPS 2) where space is tight, the forged cap per B16.11 is often the default; above NPS 2, B16.9 becomes the practical necessity.

Pressure–Temperature Ratings – Fixed Class vs. Schedule Dependent

ASME B16.11 uses fixed class ratings (e.g., Class 3000 ≈ 2,000 psi at 150°F) independent of wall thickness. ASME B16.9 ratings derive from the connecting pipe’s schedule – a Schedule 80 B16.9 cap holds the same pressure as Schedule 80 pipe. This makes B16.9 more flexible for high pressure designs, while B16.11 offers simplicity for moderate pressures. For steam and hydrocarbon systems above 400°C, B16.9 is almost always mandated.

Joint Integrity and Fatigue Performance

Full penetration butt welds (B16.9) provide a joint as strong as the parent metal, with excellent fatigue life under cyclic loading. Socket welded B16.11 joints rely on fillet welds that are inherently weaker and more susceptible to stress concentration at the socket gap. Moreover, B16.9 welds can be fully inspected by RT/UT, whereas B16.11 fillets are limited to surface MT/PT. In vibrating compressor piping or thermal cycling services, B16.9 caps are unequivocally preferred.

Application Scenarios – When to Choose Which

Choose the B16.11 cap when: pipe size ≤ NPS 2, threaded removal is needed, cost is a primary driver, and crevice corrosion is not a concern.

Choose B16.9 when: pipe size > NPS 2, full bore flow is required, high pressure/temperature, mandatory RT/UT inspection, or permanent closure with no future disassembly.

Lifecycle Cost – Upfront vs. Long Term

Initial purchase price favours B16.11 for small sizes, but installation and inspection costs tell a different story. Butt welding B16.9 requires skilled labour, preheat, PWHT, and costly NDT. Socket welding B16.11 is cheaper to install, and threaded caps eliminate welding altogether. However, for critical services, the superior reliability of B16.9 often offsets higher upfront expenses through reduced unplanned downtime and leak risks.

Frequently Asked Questions (FAQs)

Q1: Can I substitute a B16.11 cap for a B16.9 cap of the same size?

A: No – they have incompatible connection types and rating systems.

Q2: What is the maximum size for B16.11 caps?

A: NPS 4 is the standard upper limit.

Q3: Which is stronger – forged or butt weld?

A: Forged material is strong, but butt weld joint strength (B16.9) exceeds fillet weld joints (B16.11) in overall system integrity.

Q4: Are B16.11 caps suitable for high temperature service?

A: Yes, up to 400°C for carbon steel and 800°C for stainless, but always check the pressure temperature table.

Q5: Why do oil and gas pipelines prefer B16.9?

A: Large diameters, high pressure, and the need for fully inspectable welds make B16.9 the standard.

Q6: Can I radiograph a socket weld B16.11 joint?

A: No – only surface NDT methods are applicable.

Q7: Where is the practical size breakpoint?

A: Typically NPS 2 – below that, B16.11 is common; above, B16.9 is preferred.

Contact QinSteel for Expert B16.11 Cap Solutions

Selecting the correct closure requires balancing size, pressure, temperature, inspection requirements, and total ownership cost. At QinSteel, we manufacture high quality B16.11 caps in socket weld and threaded styles, Class 2000 9000, in ASTM A105, A182, and alloy grades. Our engineering team provides full support – from material selection to final quality checks – ensuring your ASME B16.11 Cap performs reliably in its intended service. For tailored advice, custom dimensions, or a prompt quotation, please email us at info@sxqinsteel.com. We are ready to help you optimise your pipe end closure strategy with the right ASME B16.11 Cap – the one that truly fits your application needs.

References

1.ASME B16.11-2021, Forged Fittings, Socket Welding and Threaded

2.ASME B16.9-2024, Factory Made Wrought Buttwelding Fittings

3.ASME B16.25-2022, Buttwelding Ends

4.Projectmaterials Blog, “ASME B16.11 vs B16.9” (2024)

5.Krishna Forge Fitting, “Pipe Cap Importance” (2026)

6.Chinajsgj, “B16.9 vs B16.11 Key Differences”

7.PipingX, “Understanding Pipe Fitting Standards” (2026)

8.Nissan Steel, “B16.11 ASME Cap Specifications”

9.Amardeep Steel, “Forged vs Buttweld Fittings Guide” (2026)
