When Should You Use a CS Blind Flange Instead of a Cap or Valve?

CS Blind Flanges closes a pipe end that has no present connection, or seals a line taken out of service for inspection. We reach for a carbon steel blank when the service is non-corrosive and the budget is tight, because the part is a plain disc with no internal bore to machine. The grade most buyers ask for is A105 or A350 LF2, and the class follows the line it closes. In this piece we cover the jobs where a blind earns its place, the ones where it does not, and how we at Xi'an QinSteel handle stock and custom orders for export

Where a CS Blind Flange Does the Job Best

CS Blind Flanges stops flow at a dead end that will stay capped for years, such as a future tie-in left sealed during phase one of a plant build. We supplied a batch to a Gulf refinery that capped nine nozzles on a new unit, and the blanks went in with the same bolts as the rest of the joint.

The part's flat face means the fitter does not need a special stub or a welded outlet. He lines up the bolt circle, fits the gasket, and torques to the same pattern used on the live flanges.

carbon steel blind flange costs a fraction of a full valve when the line only needs to be sealed, not controlled. On a water sidestream in East Africa we closed three branches with blanks instead of gates, and the saving paid for the freight on the rest of the order.

For a line that will reopen, the blind is also easier to remove than a cap that has been welded and insulated. The crew breaks the bolts, lifts the disc, and the pipe is open again.

CS Blind Flange vs a Pipe Cap for Isolation

CS Blind Flanges wins when the sealed end must be opened again without cutting the pipe. A cap is welded on and has to be ground off, which is fine for a permanent dead end but slow for a temporary one.

carbon steel blind flanges also let you keep the same flange rating on both sides of a joint, while a cap changes the end condition and can confuse the stress check. We flag that on drawings where a cap would break the rating continuity.

If the line is genuinely permanent and buried, a cap can be the cheaper choice because there is no bolt set to buy. The decision comes down to whether anyone will ever need to reopen that end.

Pressure Class and Thickness You Should Expect

CS Blind Flanges follows ASME B16.5 thickness tables, and the disc gets thicker as the class rises. An NPS 6 at Class 150 is a slim disc, while the same size at Class 600 is a heavy plate that needs a longer bolt.

blind flange in CS at Class 900 and above starts to rival a small weld neck in weight, so the handling plan should include the lift, not just the price. We note the unit weight on the packing list so the site crane is sized before arrival.

Most buyers stay within Class 150 to 300 for utility and water lines. The higher classes are for hydrocarbon and steam where the seal has to hold under a real pressure test.

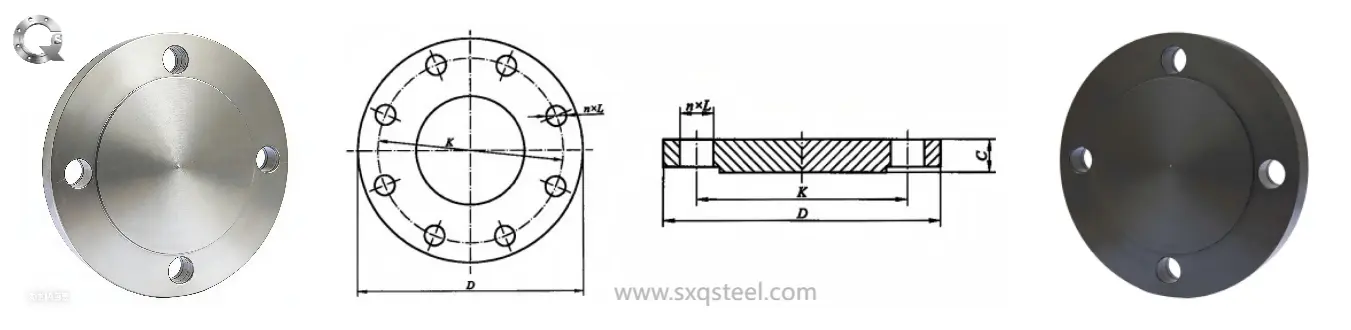

CS Blind Flange Specification at a Glance

Why Choose Xi'an QinSteel for CS Blind Flanges

We keep common sizes of A105 and A350 LF2 blinds on the shelf and cut custom diameters from plate when a job needs a non-standard NPS. Our pre-order check lists the standard, class, facing, and material so you catch a mismatch before the steel is cut.

Email info@sxqinsteel.com with your line list and we return a confirmation sheet the same business day for stock sizes, with mill certs available on request. For a one-off diameter we quote from plate and confirm the delivery window before you commit.

On a Southeast Asia skid builder job we held blinds in stock against a rolling schedule, shipping a few boxes each week so the fabricator never tied up cash in a full container of spares. That kind of release plan suits projects that grow in stages.

On the plant deck the disc is light enough to handle by hand up to about NPS 12, and we mark the unit weight on the packing list so the crew sizes the lift for the larger sizes. A blind that arrives without a weight note tends to surprise the crane, and a surprise on a live deck is the kind of delay nobody needs.

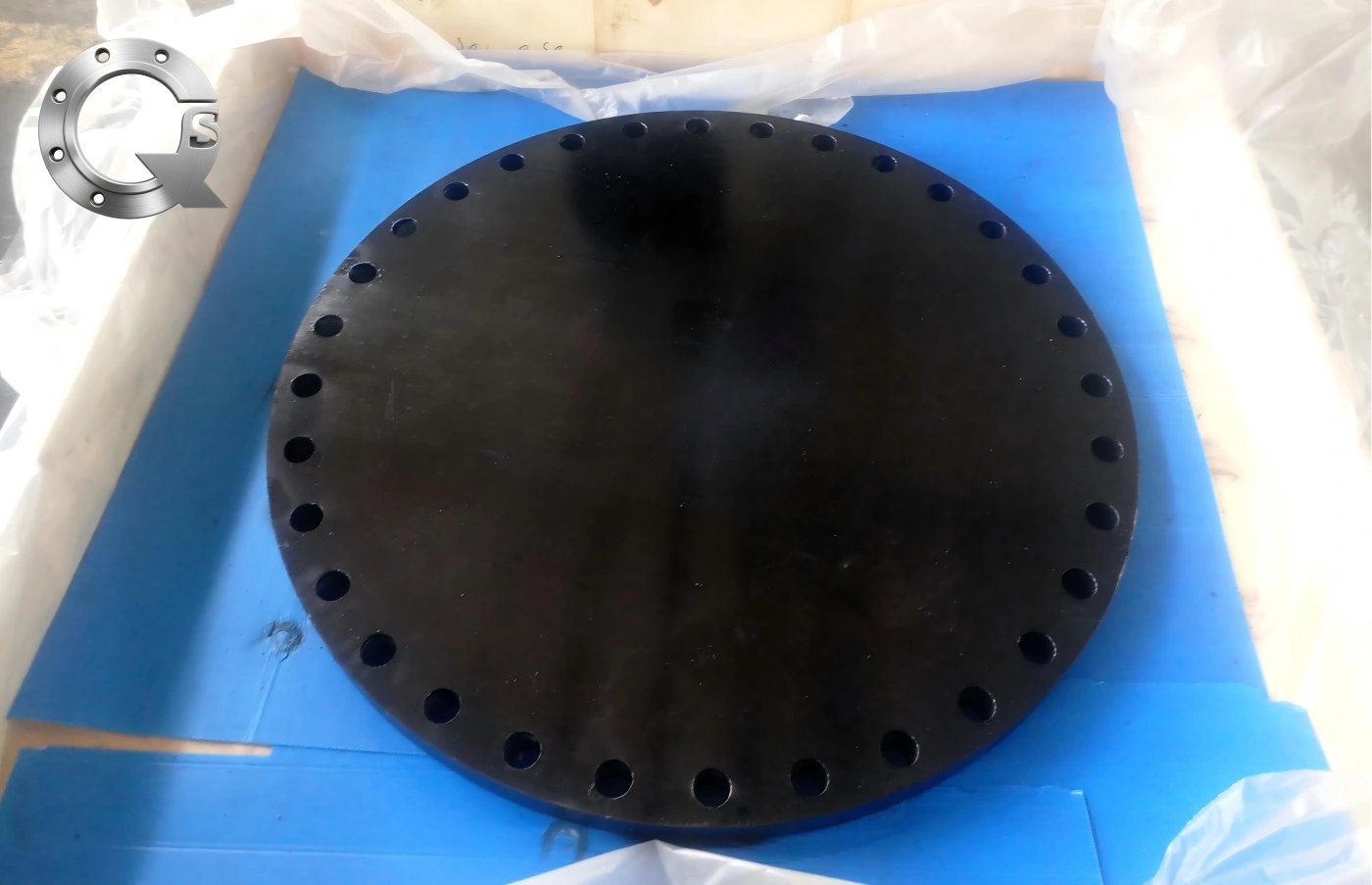

Coating is part of the part for outdoor storage. We prime the disc before it leaves the bay when the PO says outdoor, because a bare carbon steel face pits within a season and then weeps on the first reopen. The cost of the prime is small against the site rework it prevents.

When you send a line list, include the mating flange class and the facing, not just the size. The two together decide the thickness and the gasket, and a missing facing is the single most common cause of a blind that will not seat. We return a confirmation sheet that lists both before we cut.

Goods-in inspection is quick when the heat number is stamped and the cert is in the box. We put the heat on the disc and the 3.1 on request, so your inspector signs off without a chase. A blank with no traceability is a query, and a query stops the line.

Logistics for export matter as much as the steel. We crate to survive a container, a crane, and a Customs hold, and we photograph the pack so you can see the condition before it sails. A blind that rusts in transit is a rejected part, not a saving.

Common sizes from NPS 1/2 to NPS 24 sit on our shelf in A105 at Class 150 and 300, and we cut the odd diameters from plate within a few days. Tell us the schedule and we match the wall so the joint looks right, not just the bore.

For a phased build we release blinds in lots against your install dates, which keeps cash free and the shelf honest. A buyer who takes a full container of spares ties up money on parts he may not use for a year, and the release plan avoids that.

The documentation pack we send with the order names the standard, the class, the facing, and the material in one row, so the confirmation is a single glance, not a search. We have found that a clean sheet prevents most of the field calls we used to get.

If the line will be opened and closed more than once, keep the original bolts and a spare gasket set with the disc. A blind reused with a crushed gasket is the usual source of a weep at the next hydrotest, and the fix is a ten-dollar gasket, not a new part.

Finally, tag the isolated end so the next crew knows the line is blanked, not abandoned. A disc with no tag is a mystery at the next turnaround, and mysteries cost the schedule far more than the tag did.

A blind that arrives with the bolts and gasket in the same box is a small logistics win that pays back on a crowded site, because the fitter is not hunting a stud across three crates. We bundle the set on request so the joint is complete on arrival.

The disc face should be kept clean in storage, because a scored seat is the usual reason a blind weeps on first use. We wrap the face for transit, and a quick wipe before seating keeps the gasket honest.

For a line that reopens often, keep the original bolts and a spare gasket with the disc, so the next close is a few minutes, not a procurement. The spare is cheaper than the downtime it prevents.

We have supplied blinds that stayed on the shelf for a year before use, and the primed ones seated clean while the bare ones needed a machine pass. The finish is the difference, and it is cheap insurance.

A common question is whether the blank needs a different gasket than the live joint, and the answer is no, the facing decides the gasket, not the fact that the end is blanked. We confirm the facing and let you pick the seal.

For a line that reopens often, keep the original bolts and a spare gasket with the disc, so the next close is a few minutes, not a procurement. The spare is cheaper than the downtime it prevents on a busy unit.

We have supplied blinds that sat on the shelf for a year before use, and the primed ones seated clean while the bare ones needed a machine pass. The finish is the difference, and it is cheap insurance against a weep.

A common question is whether the blank needs a different gasket than the live joint, and the answer is no, the facing decides the gasket, not the fact that the end is blanked. We confirm the facing and let you pick the seal.

When the box arrives, a quick check of the class stamp against the mate before the fitter starts saves the worst kind of rework, the kind found after the bolts are tight. We put the class on the disc so the glance is enough.

When the box arrives, a quick check of the class stamp against the mate before the fitter starts saves the worst kind of rework, the kind found after the bolts are already tight. We put the class on the disc so the glance is enough to confirm the match.

For a future tie-in that stays sealed for years, the blank is the right call because it keeps the flange rating continuous and the crew can reopen it without a cut. A cap there would mean a grinder and a new weld when the line finally extends.

We have shipped blinds that sat on the shelf for a year before use, and the primed ones seated clean while the bare ones needed a machine pass. The finish is the difference, and it is cheap insurance against a weep on the day it matters.

Frequently Asked Questions

1.Is a CS blind flange the same as a blank flange?

Yes, the terms are used interchangeably for the solid disc with no bore. Some regions say blank, others say blind, but the part and its bolt pattern are the same under ASME B16.5.

2.What class do I need for a water line blind?

Class 150 covers most clean-water and fire-water mains up to a few bar. If the line sees surge or pump shut-off head, step to Class 300 and confirm the gasket rating matches.

3.Can I reuse a blind after opening the line?

Usually yes if the facing and gasket seat are undamaged. We advise a visual check and a fresh gasket; a pitted face should be machined or replaced rather than reused.

Contact Xi'an QinSteel for CS Blind Flanges Solutions

For pricing and lead time on CS Blind Flanges stock or a made-to-order run, email info@sxqinsteel.com or open www.sxqsteel.com. Our team checks your drawing, confirms the material and pressure class, and replies with a firm quote the same business day for standard sizes.

References

1.ASME B16.5 - Pipe Flanges and Flanged Fittings, NPS 1/2 through 24.

2.ASTM A105 / A105M - Standard Specification for Carbon Steel Forgings for Piping Applications.

3.ASTM A350 / A350M - LF2 forgings for low-temperature service.

4.MSS SP-44 - Steel Pipeline Flanges.

5.ASME B31.3 - Process Piping, design and flange selection.

6.ISO 10474 / EN 10204 - Inspection documents for steel products, 3.1 and 3.2 certs.
