NDT and Quality Checks That Matter for Hot Forged Flange

Hot Forged Flange quality is not something you see by eye, which is why the checks that matter are the ones done before the part leaves the forge. Visual and dimensional checks catch the obvious, but ultrasonic and hardness work catch the flaws that would fail a joint in service. We run a layered check because a forged part that looks fine can still hide a seam or a soft spot. In this guide we explain the tests worth paying for and the ones that are mostly paperwork.

Visual and Dimensional First

forged flange Every forged flange starts with a visual pass for scale, laps, and facing damage, then a dimensional check against the standard for bore, hub, and bolt circle. These catches are cheap and they remove the parts that would never fit. We record the key dimensions and photograph the facing so the buyer can confirm before fit-up. A Southeast Asian contractor cleared a client audit from our photos without opening every box. The basic check is the floor, not the ceiling, of quality.

Packing for export assumes the route will be rough, and we build the bundle to survive a crane, a stack, and a customs yard without losing a facing or a cert. Edge protection and a sealed sleeve are standard because a damaged face or a wet certificate is a rejected delivery regardless of the forge. A Southeast Asian contractor said our packs arrived fit to use without a repack, which kept his skid line moving. The wrap is the last quality step, and we do not let it be the weak one.

Ultrasonic and Magnetic Particle

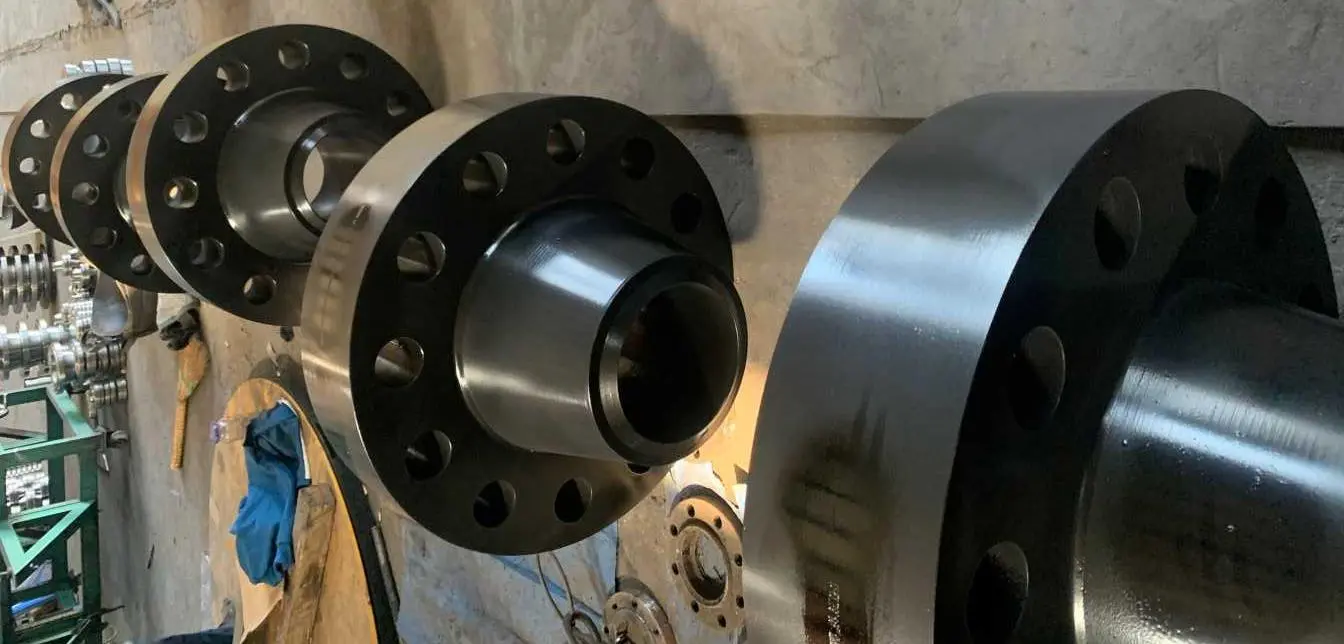

Hot Forged Flange A hot forged flange for critical duty gets UT or MPI to find internal or surface flaws that eyes miss. UT reads the body for seams; MPI reads the surface for cracks after machining. We run these on die samples and on pieces when the class or the service calls for it. A Gulf client specified UT on every Class 600 forged flange after a past cast failure, and our reports closed the query at goods-in. The test is what turns a forging claim into a forging fact.

When the box opens, the first task is confirming the part matches the order before a wrench moves, and we send the marking photo so the stamp reads from a phone on the dock. A Southeast Asian skid builder said our images let his fitter verify class without cutting a wrapper, which held a skid on its ship date. The number on the hub and the line on the certificate must agree, and we make that agreement visible before sealing. A flange you can verify on arrival is a flange you can weld the same day, and that speed is the quiet value of the steel.

Hardness and Tensile

forged steel flange Hardness checks confirm the heat treatment landed in the right band, and tensile confirms the strength the grade promises. A forged steel flange that is too hard may crack in the field; too soft may deform. We tie these results to the heat number on the cert. A West African buyer used our hardness band to satisfy a client who had been burned by soft imported flanges. The numbers on the cert are the proof the metal behaved.

At goods-in, the fastest accept is a clear cert and a clear stamp, and we send both so the inspector never guesses the grade or the heat. A West African authority cleared a full container from our photos alone and began fitting the same day. The marking and the certificate line must match, and we make that match obvious before the box is sealed. A buyer who verifies from a photo reorders without a second quote.

Positive Material Identification

Hot Forged Flange PMI verifies the grade is what the label claims, which matters most on stainless and alloy where a mix-up is expensive. A hot-forged flange in 316 that is actually 304 will fail quietly in chloride service. We run PMI on stainless and duplex runs as standard. A Middle East client caught a grade swap at our gate with PMI before the part reached the site. Identify the metal before you trust the mark.

When the crate opens, the first task is matching the part to the order before a wrench moves, and we send the marking photo so the stamp reads from a phone on the dock without cutting a wrapper. A Southeast Asian skid builder said our images let his fitter confirm the class on the spot, which held a skid on its ship date. The number on the hub and the line on the certificate must agree, and we make that agreement visible before the crate is sealed. A flange you can verify on arrival is a flange you can weld the same day, and that speed is the quiet value of a check done right at the forge rather than argued over after a leak. The photo is the proof that travels with the steel.

Certificates and Traceability

hot forged flanges The EN 10204 3.1 cert ties every check to the heat number, and that is the document an auditor actually reads. We bundle the cert with the marking photo so the chain from melt to flange is unbroken. A Latin American miner closed a customs query with our cert pack in an afternoon. The certificate is not paperwork; it is the reason the flange can be trusted without a lab on site.

The confirmation step is where check-level slips get caught, and we hold the cut for a read before steel moves, because the hours that costs are trivial next to the weeks a return costs. A Latin American miner corrected a class error on our sheet before cutting, which saved a container of mismatched parts. The confirmation is cheap insurance, not bureaucracy, and we build it into the workflow rather than bolting it on.

Why Choose Xi'an QinSteel for Your Flange Supply

Hot Forged Flange We build the check layer into the price rather than offering it as an extra, because a forged flange without proof is just a shaped lump of steel. Buyers tell us our 3.1 packs and marking photos are what let them skip the second inspection. A Gulf EPC signed off on our reports alone for a Class 600 run. Quality you can read is quality you can ship.

We hold the order for a confirmation read because the hours it costs are nothing next to the weeks a return costs, and the read is where check-level slips get caught. A Latin American miner corrected a class error on our sheet before cutting, saving a container of mismatched parts. The confirmation is the cheap insurance on the job, and we build it into the workflow rather than bolting it on. Slow the cut, ship the right part.

What Not to Over-Spec

hot-forged flange Not every joint needs full UT and PMI, and over-specifying pads cost without adding safety. A hot forged flange on a low-pressure utility header may only need visual and dimensional plus the cert. We help buyers pick the check level by duty, not by fear. A Southeast Asian skid builder trimmed his inspection cost by matching the test to the risk and kept the critical joints fully checked. Right level, right place.

The confirmation step is where check-level slips get caught, and we hold the cut for a read before steel moves, because the hours that costs are trivial next to the weeks a return costs. A Latin American miner corrected a class error on our sheet before cutting, which saved a container of mismatched parts. The confirmation is cheap insurance, not bureaucracy, and we build it into the workflow rather than bolting it on. Slow the cut a day, ship the part with the right checks, and the audit stays clean.

Reading the Report Before Fit-Up

Hot Forged Flange The buyer should read the cert and the UT report before the flange goes in, not after a leak. We send the documents with the photo of the marking so the check and the part are tied together. An East African inspector used our pack to clear a shipment without a site visit. A five-minute read of the report is cheaper than a five-day shutdown, and it is the last chance to catch a miss before the wrench turns.

Documents travel with the steel, and we issue the proforma, the 3.1, and the packing list together so the border is a formality. A Gulf EPC said our paper cleared faster than suppliers who treated the file as a separate task. The part and the proof should land as one shipment, and we plan them that way from the first message instead of stitching them at the quay.

Documents move with the steel, and we send the proforma, the 3.1, and the packing list together so customs is quick. A Gulf EPC said our paper cleared faster than suppliers who treated the file as separate, and that edge was a week on a tight shutdown. The part and the proof should arrive as one, and we plan them as one from the first inquiry instead of assembling them at the dock. A buyer who never waits on a document is a buyer who reorders without a second thought.

Frequently Asked Questions

1.Do all forged flanges need UT?

No. Visual and dimensional plus the cert cover most joints. UT or MPI is worth it on high-class or critical-duty flanges where a hidden flaw would be costly.

2.What does the 3.1 cert prove?

It ties the chemical and mechanical results to the heat number of the actual melt, so the checks are linked to the piece, not to a generic grade.

3.Is PMI necessary on carbon steel?

Usually not, but it matters on stainless and alloy where a grade swap fails quietly. We run PMI on stainless and duplex as standard.

Contact Xi'an QinSteel for Hot Forged Flange Solutions

For pricing and lead time on Hot Forged Flange stock or a made-to-order run, email info@sxqinsteel.com or open www.sxqsteel.com. Our team checks your drawing, confirms the material and pressure class, and replies with a firm quote the same business day for standard sizes.

References

1. ISO 10474 / EN 10204 - Inspection documents, 3.1 and 3.2.
2. ASTM A105 / A350 / A182 - flange material specs and tests.
3. ASME B16.5 - Pipe Flanges and Flanged Fittings.
4. ASTM E165 / E709 - liquid penetrant and magnetic particle testing.
5. ASTM A388 - ultrasonic examination of steel forgings.
