What Is a Carbon Steel Pipe Flange and Where Does It Belong in a Pipeline?

Carbon Steel Pipe Flange is the forged disc with a bolt circle that joins pipe, valve, and equipment in carbon steel, the default metal for most non-corrosive duty because it is cheap, strong, and weldable. We supply them across every standard a plant calls. In this piece we cover what the part is, the common types, and how we at Xi'an QinSteel stock and cut them for export.

The Part Itself

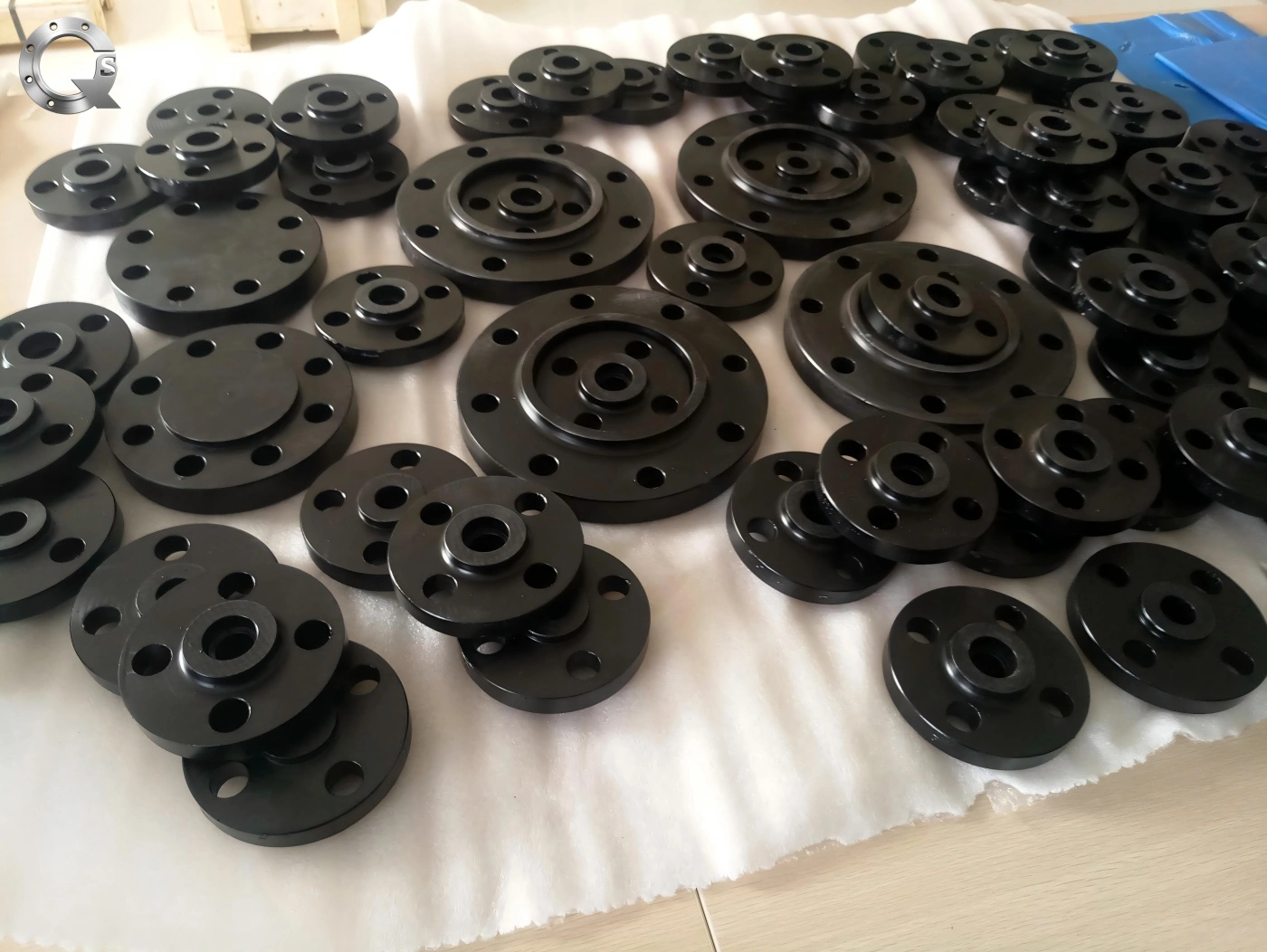

Carbon Steel Pipe Flange is a round forged plate with a bore and a ring of bolt holes, faced to seal against a gasket. The disc may have a hub (weld neck) or none (slip-on, blind). We forge the load-bearing sizes so the grain runs with the stress.

A buyer asked why his plate blank cracked at the hub; it was cut from plate, and we forged the replacement so the grain was right.

Common Types in CS

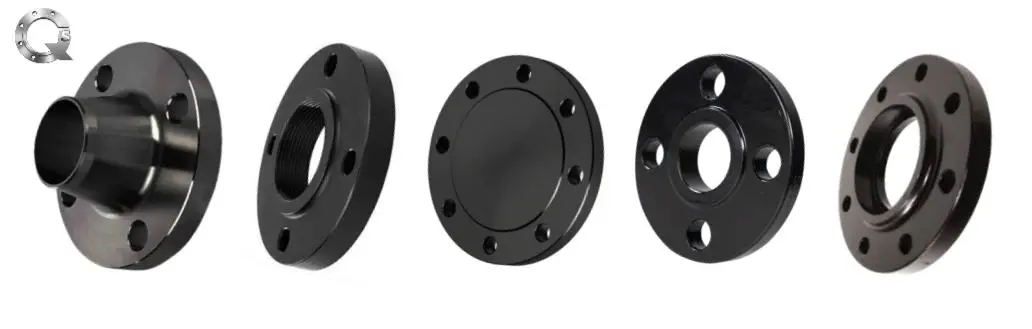

Carbon Steel Pipe Flange are weld neck, slip-on, socket weld, threaded, blind, and lap joint, each for a different joint. We keep the common types and classes on the shelf. A wrong type is a joint that will not seat.

A Southeast Asia EPC took weld necks for the headers and slip-ons for the branches from one store.

Why Carbon Steel

Carbon Steel Pipe Flange is the default: it is a fraction of the cost of stainless, plenty strong for water, air, and mild process, and easy to weld. We steer buyers to CS unless the medium is corrosive. A stainless spec on a whole list is money wasted.

We flag a default-to-stainless list and show the CS price delta so the decision is informed.

Standards Are the Language

carbon steel pipe flanges with B16.5, B16.47, EN1092, DIN, JIS, BS, and AWWA each naming the drilling. We confirm the standard from the dwg. A wrong standard is a wrong bolt circle.

A buyer mixed B16.5 and EN on one order and we split the drilling so each bolted.

Pressure and Temperature

carbon steel flange set the class or PN, with the disc thickness rising as the rating climbs. We confirm the class from the line. A wrong class is the usual leak cause.

We list the class and the allowable on the quote so the buyer sees the pressure story.

Where It Belongs

CS pipe flange is at every joint in a plant: pipe to pipe, pipe to valve, pipe to vessel. The flange is the reusable seal. We keep common sizes stocked so the joint is never the long pole.

A Gulf utility pulled common CS flanges from our shelf and the tie-ins never waited on a flange.

Why Choose Xi'an QinSteel for Carbon Steel Pipe Flange

We keep common carbon steel flange types and classes on the shelf and cut the odd sizes from plate, confirming the standard and class from your drawing before we cut. Our pre-order sheet lists standard, type, class, and facing in one row.

Email info@sxqinsteel.com with your line list and we return a confirmation the same business day for stock sizes. For a one-off we quote from plate and confirm the window.

On a phased build we release flanges in lots against your install dates, which keeps cash free and the shelf honest. A buyer who takes a full container of spares ties up money on parts he may not use for a year.

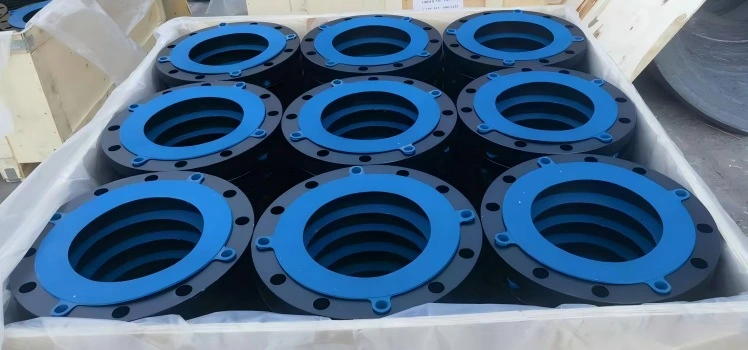

Logistics for export matter as much as the steel. We crate to survive a container, a crane, and a Customs hold, and we photograph the pack so you see the condition before it sails.

We keep the carbon steel drawing on file against your project number so repeat orders pull the same dimensions without a re-confirm. A part that matches the first one is the part that bolts up, and we would rather check twice than ship a near-miss that costs a fitter a day.

Goods-in inspection is quick when the heat number is stamped and the cert is in the box, because your inspector signs off without a chase. A carbon steel part with no traceability is a query, and a query stops the line until someone finds the paper.

On a phased build we release flanges in lots against your install dates, which keeps cash free and the yard honest. A buyer who takes a full container of spares ties up money on parts he may not use for a year, and the release plan avoids that trap.

Logistics for export matter as much as the steel. We crate to survive a container, a crane, and a Customs hold, and we photograph the pack so you can see the condition before it sails. A carbon steel part that stains in transit is a rejected part, not a saving.

The documentation pack we send names the standard, the class, the facing, and the grade in one row, so the confirmation is a single glance, not a search. We have found that a clean sheet prevents most of the field calls we used to get on mixed orders.

For a one-off diameter we quote from plate and confirm the delivery window before you commit, because a vague lead time is worse than an honest long one. A carbon steel disc cut from plate is only as good as the window we give you to plan the weld.

We stamp the heat on the pad and issue 3.1 on request, so your quality record traces the steel back to the melt. A part that cannot be traced is a liability at audit, and the stamp plus cert is the line that keeps a project moving.

Coating the machined face before it leaves the bay is the cheap insurance against a stain that weeps on the first reopen. A carbon steel face that arrives bare in a coastal store is a rejected part, and a quick coat on the line costs less than the rework call.

When you send a line list, include the mating flange class and the facing, not just the size, because the two together decide the thickness and the gasket. A missing facing is the most common cause of a part that will not seat, and we return a sheet that lists both.

We hold common sizes on the shelf and cut the odd ones from plate, so the long pole is rarely the flange. A carbon steel part pulled from stock ships in days, while a cut one is quoted honestly with a window you can plan around.

Bolting matters as much as the disc: we confirm the stud length and the gasket type so the joint is complete on arrival. A carbon steel flange that ships without the right studs is half a joint, and the fitter ends up hunting a thread across three crates.

Storage at the destination decides whether the coat survives, so we wrap the machined face and tag the crate for the store. A part that rusts on a humid rack is a write-off, and the wrap plus tag is the step that keeps it clean until the weld.

We run a pre-order check that lists the standard, the class, the facing, and the grade, and we send it back before cutting so a mismatch is caught on paper, not in the field. A carbon steel order confirmed in writing is an order we can stand behind.

For sour or cold duty we confirm the NACE level or the impact temperature before we forge, because the grade is decided upstream of the machine. A carbon steel part that misses the test is a failure mode, not a cost saving, and we certify it up front.

Communication during the build is part of the product: we send a photo of the pack and a copy of the cert so you see the part before it sails. A buyer who can see the condition avoids the dispute, and the photo is the proof that earns the trust.

We match the flange wall to the pipe schedule so the joint looks right, not just the bore, because a stub that sticks out is a reface. A carbon steel part that follows the line wall seats without a shim, and the weld reads true on the radiograph.

Tagging the isolated or the spare point so the next crew knows what it is, not just that it exists, is the small step that pays back at turnaround. A carbon steel disc with no tag is a mystery, and mysteries cost the schedule far more than the tag did.

For offshore or remote sites we crate to the lift plan and mark the unit mass so the crane is sized before arrival, not after a failed lift. A carbon steel part that surprises the crew on a platform is a delay no one budgets for.

We photograph the finished part and the pack so the condition is visible at every handover, from our bay to your store. A carbon steel disc that arrives with a dent has a photo to answer the question of where it happened, and that ends the argument.

A sample-first approach suits a new standard or a new buyer: we cut one carbon steel part, ship it, and confirm it bolts before the balance is released. A trial piece is cheaper than a container of near-misses, and it settles the dimension question for good.

We keep the drilling template for the common standards so every repeat order is cut to the same circle, not a fresh guess. A carbon steel part that matches the last one is the part your fitter expects, and consistency is what keeps a store honest.

Frequently Asked Questions

1.Why use carbon steel?

Cheap, strong, weldable for non-corrosive duty; stainless only where needed.

2.Which type do I need?

Weld neck for stress, slip-on for general, blind to seal, lap joint to reopen.

3.Which standard?

Follow the existing spool drilling: B16.5, EN1092, DIN, JIS, BS, or AWWA.

Contact Xi'an QinSteel for Carbon Steel Pipe Flange Solutions

For pricing and lead time on Carbon Steel Pipe Flange stock or a made-to-order run, email info@sxqinsteel.com or open www.sxqsteel.com. Send your line list with standard, type, class, and facing, and we confirm the parts and lead time before cutting so the joint is never the long pole.

References

1. ASME B16.5 - Pipe Flanges and Flanged Fittings.
2. ASTM A105 / A350 LF2 - Carbon steel forgings.
3. EN 1092-1 - European PN flanges.
4. ASME B31.3 - Process Piping, flange selection.
5. ISO 10474 / EN 10204 - Inspection documents, 3.1 certificates.
6. MSS SP-44 - Steel Pipeline Flanges.
