What Materials Are Commonly Used for ASME B16.11 TEE REDUCINGS?

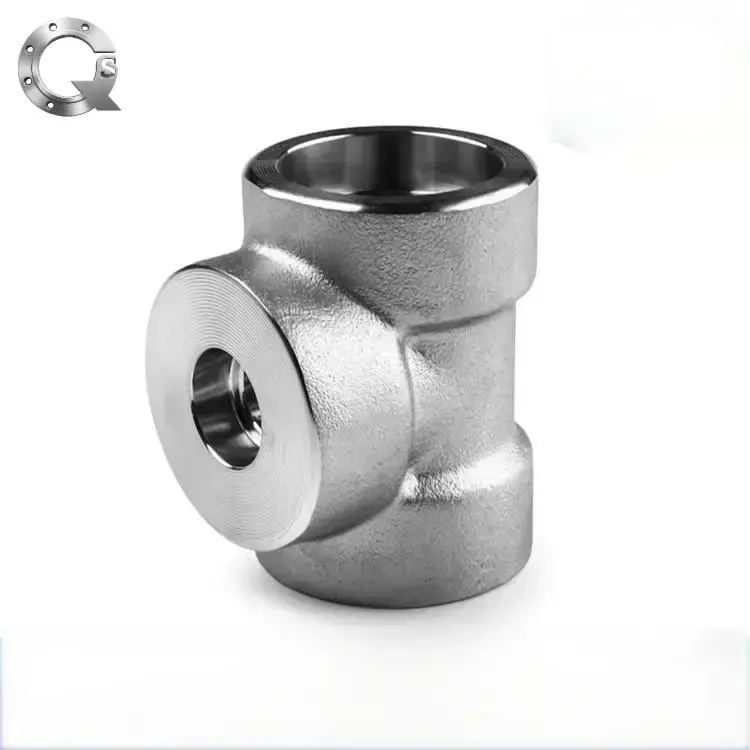

ASME B16.11 Tee Reducing is a critical forged pipe fitting widely adopted in high-pressure industrial piping systems, designed to connect pipelines of different diameters and achieve stable fluid diversion and shunting. Compliant with the unified specifications of the American Society of Mechanical Engineers, this fitting covers standardized dimensions, pressure ratings, and manufacturing requirements, making it a core component for petroleum, chemical, power generation, and marine piping projects. The selection of manufacturing materials directly determines its pressure resistance, corrosion resistance, and service life under extreme working conditions, so mastering common applicable materials is essential for engineering procurement and pipeline design.

Overview of ASME B16.11 Tee Reducing Application Scenarios

Industrial piping systems often require diameter conversion and fluid distribution in limited installation spaces, and high-pressure environments demand fittings with excellent structural stability and mechanical properties. Different from ordinary welded tees, this series of reducing tees adopts integral forging technology, featuring compact structure, high pressure-bearing capacity, and good sealing performance, suitable for socket weld and threaded connection methods. It is widely used in high-pressure steam pipelines, chemical medium transmission pipelines, oil and gas gathering and transportation pipelines, and industrial hydraulic systems. Different working environments such as high temperature, low temperature, strong corrosion, and high pressure put forward differentiated material requirements for the fittings, which is why multiple standard material grades are defined in the ASME B16.11 specification system.

Common Carbon Steel Materials for Industrial Applications

Carbon steel is the most widely used material for pipe fittings due to its cost-effectiveness, excellent forgeability, and stable mechanical properties at room and medium temperatures, and it is the preferred material for conventional industrial ASME B16.11 Tee Reducing products. The mainstream carbon steel grades in line with international standards include ASTM A105, ASTM A105N, ASTM A350 LF2/LF3, and ASTM A694 series, each matching specific working condition thresholds.

ASTM A105 is the most classic carbon steel grade for forged pipe fittings, applicable to medium and high-pressure piping systems with a temperature range of -29℃ to 425℃. It has good tensile strength and impact toughness, stable processing performance, and is suitable for conventional oil, gas, and water medium transmission projects. ASTM A105N is a normalized upgraded version of A105, with more uniform internal grain structure and better low-temperature toughness, effectively avoiding brittle fracture of fittings in variable temperature environments.

For low-temperature working scenarios such as cryogenic chemical pipelines and liquefied gas transmission, ASTM A350 LF2 and LF3 low-temperature carbon steels are the ideal choices. These materials can maintain stable mechanical properties at -46℃ and -101℃ respectively, solving the low-temperature brittle failure problem of ordinary carbon steel. In heavy-duty industrial fields such as petrochemical heavy equipment and pipeline support systems, ASTM A694 F42 to F70 high-strength carbon steel grades are used, which can withstand higher axial pressure and mechanical impact, meeting the load-bearing requirements of high-grade pressure pipelines.

Corrosion-Resistant Stainless Steel Material Series

For piping systems transporting corrosive media such as acid, alkali, salt water, and chemical solvents, stainless steel materials are essential to ensure the long-term stable operation of fittings. Standard stainless steel grades for ASME B16.11 Tee Reducing cover multiple common and high-performance models, adapting to diverse corrosive working environments.

ASTM A182 F304 and F304L are the most widely used general-purpose stainless steel materials. F304 has excellent atmospheric corrosion resistance and high-temperature oxidation resistance, suitable for conventional chemical and food-grade piping systems; F304L ultra-low carbon stainless steel effectively avoids intergranular corrosion caused by welding, with better welding adaptability, and is more suitable for fittings that require secondary welding processing. For harsh marine and chloride-containing corrosive environments, ASTM A182 F316 and F316L molybdenum-containing stainless steels are preferred. The addition of molybdenum elements significantly enhances their resistance to pitting corrosion and crevice corrosion, making them applicable to seawater desalination, offshore engineering, and chemical chloride medium transmission pipelines.

In addition, high-performance stainless steel grades such as F321, F310S, and 904L are used for special working conditions. F321 stabilizes the material structure through titanium element addition, resisting high-temperature grain corrosion; F310S is suitable for ultra-high temperature environments up to 1000℃, widely used in high-temperature flue gas and heating medium pipelines; 904L super austenitic stainless steel has ultra-strong corrosion resistance, adapting to strong acid and high-salinity extreme working conditions, and is a high-end choice for precision chemical piping systems.

High-Strength Alloy Steel for Extreme Working Conditions

In ultra-high pressure, ultra-high temperature, and special industrial scenarios such as thermal power, nuclear power, and petrochemical hydrogenation units, ordinary carbon steel and stainless steel cannot meet the performance requirements, so alloy steel materials with higher strength and temperature resistance are required. Common alloy steel grades for ASME B16.11 Tee Reducing include ASTM A182 F5, F9, F11, F12, F22, F91, and F92.

Among them, F11 and F12 chromium-molybdenum alloy steels are the most commonly used medium-temperature and pressure-resistant materials, with excellent high-temperature creep resistance, stable performance in long-term 500℃ high-temperature environments, and widely used in thermal power plant steam pipelines and petrochemical high-temperature reaction pipelines. F5 and F9 high-chromium alloy steels have better oxidation resistance and are suitable for high-temperature and weak-corrosion working environments. F22 alloy steel has higher comprehensive strength, adapting to ultra-high pressure pipeline systems in heavy chemical industry.

F91 and F92 martensitic heat-resistant alloy steels are high-end materials for ultra-supercritical thermal power and nuclear power supporting pipelines. Through precise alloy ratio and heat treatment process, they achieve ultra-high temperature resistance and pressure resistance, which can stably operate in extreme working conditions above 600℃, and are core supporting materials for high-end energy equipment piping systems.

Special Metal Materials for Customized Scenarios

In addition to conventional carbon steel, stainless steel, and alloy steel materials, some special metal materials are also used for customized ASME B16.11 Tee Reducing products to meet ultra-special working condition requirements. Titanium alloy materials represented by ASTM B381 Gr1 to Gr5 have ultra-light weight, high specific strength, and excellent corrosion resistance, and are widely used in aerospace, marine deep-sea pipelines, and high-precision chemical equipment.

Copper-nickel alloy materials have good seawater corrosion resistance and antifouling performance, suitable for ship piping systems and offshore platform water supply and drainage pipelines. These special materials are mostly used in high-end customized projects, with higher production process requirements and procurement costs, and are targeted at special industrial scenarios that conventional steel materials cannot adapt to.

FAQs

Q1: How to select the most suitable material for ASME B16.11 Tee Reducings?

A1: The material selection needs to comprehensively consider three core factors: working temperature, working pressure, and transmission medium. Conventional normal-temperature and normal-pressure non-corrosive mediums choose ASTM A105 carbon steel; low-temperature environments use LF series low-temperature carbon steel; corrosive mediums match 304/316 stainless steel; high-temperature and high-pressure extreme working conditions adopt chromium-molybdenum alloy steel. Professional manufacturers can provide targeted material selection suggestions according to project parameters.

Q2: What is the pressure rating range of standard ASME B16.11 Tee Reducings?

A2: Standard products are divided into three pressure grades: Class 2000, Class 3000, and Class 6000, with the maximum bearing pressure up to 20000psig. Different materials have different pressure resistance limits under the same specification, and alloy steel and high-strength stainless steel products have higher pressure-bearing performance than ordinary carbon steel.

Q3: Are customized size and material specifications supported?

A3: Yes. In addition to standard size and material grades, non-standard customized processing can be carried out according to customer project drawings and working condition requirements, including special alloy materials, special size reducing ratios, and customized surface treatments such as galvanizing and pickling.

Q4: What connection methods are available for ASME B16.11 Tee Reducings?

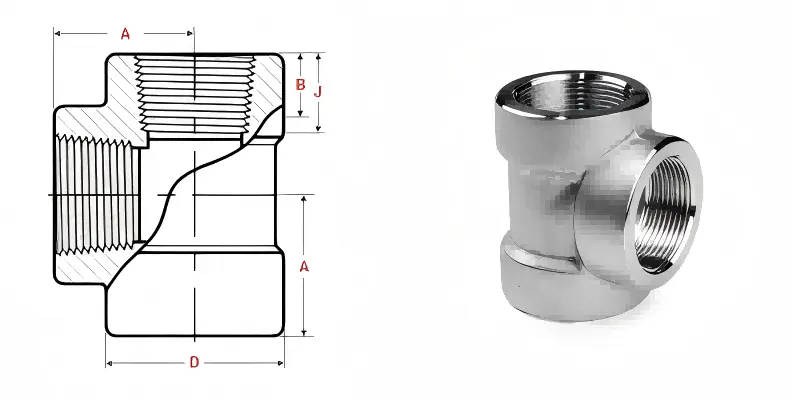

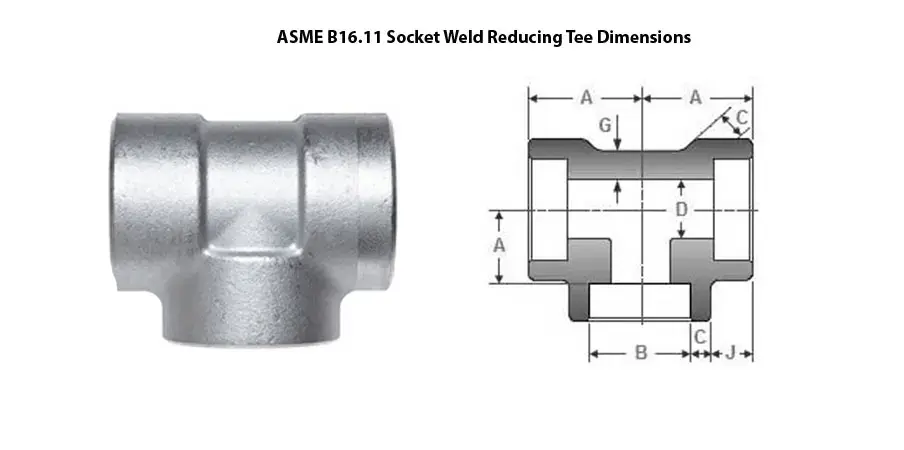

A4: The product mainly supports two connection methods: socket welding and threaded connection (NPT/BSPT thread). It is compatible with most industrial high-pressure piping connection standards, with simple installation and reliable sealing, meeting the construction requirements of different piping projects.

Contact QinSteel for Premium ASME B16.11 Tee Reducing Solutions

QinSteel is a professional manufacturer and supplier of standard forged pipe fittings, focusing on the R&D, production, and customized processing of ASME B16.11 series pipe fittings for more than ten years. The company strictly implements ASME standard specifications in all production links, with complete product material grades, stable product quality, and full compliance with international industrial piping engineering requirements. Our product lineup covers carbon steel, stainless steel, alloy steel, and special metal customized reducing tees, supporting full-spec size customization and various surface treatment processes.

We have a professional technical team to provide one-stop services including material selection guidance, parameter confirmation, product customization, and after-sales technical support for global customers. All products have complete material inspection certificates and quality test reports, which can meet the strict procurement standards of petroleum, chemical, power, marine, and other engineering projects. For product consultation, sample application, customized scheme design, and bulk procurement cooperation, please send your project demands to our official email: info@sxqinsteel.com. We will reply within 24 hours and provide professional and cost-effective piping fitting solutions.

References

[1] ASME B16.11-2021, Forged Fittings, Socket-Welding and Threaded[S]. The American Society of Mechanical Engineers, 2021.

[2] ASTM A105/A105M-22, Standard Specification for Carbon Steel Forgings for Piping Applications[S]. ASTM International, 2022.

[3] ASTM A182/A182M-23, Standard Specification for Forged or Rolled Alloy and Stainless Steel Pipe Flanges, Forged Fittings, and Valves and Parts for High-Temperature Service[S]. ASTM International, 2023.

[4] ASTM A350/A350M-21, Standard Specification for Carbon and Low-Alloy Steel Forgings, Requiring Notch Toughness Testing for Piping Components[S]. ASTM International, 2021.

[5] MSS SP-79, Socket Welding Reducer Inserts, Tees, and Elbows for Steel Pipe[S]. Manufacturers Standardization Society, 2020.
