What Is an MSS SP 95 Swage Nipple and How Is It Used?

A swage nipple MSS SP 95 is a special kind of pipe fitting that is made to connect two pipes with different sizes while keeping the flow smooth in industrial settings with high pressure. The materials, sizes, and performance qualities of these precision-engineered parts must meet the MSS SP-95 standard, which has strict rules. MSS SP 95 swage nipples are very important in places like oil and gas pipelines, chemical processing plants, power plants, and water treatment systems where safe and effective operations depend on reliable connections that don't leak. They come in both concentric and eccentric configurations.

Understanding MSS SP 95 Swage Nipple Specifications and Standards

According to the MSS SP-95 standard, swage nipples used in harsh industrial settings must meet strict requirements for how they are made and how well they work. This design makes sure that every part meets strict quality standards and works with a wide range of piping systems.

Material Composition and Grade Classifications

MSS SP 95 swage nipples are made from high-quality materials that can handle harsh working circumstances. The most common materials chosen are ASTM A105 carbon steel for general-purpose uses because it is strong and easy to work with. For butt-welded joints, A106 Grade B seamless carbon steel is very good at withstanding pressure, and A234 WPB wrought carbon steel is very good at being welded.

Stainless steel types like A312 TP 304 and A312 TP 316 are offered for specific uses that need better corrosion resistance. A350 LF2 is a low-temperature carbon steel grade that can be used in cryogenic settings. Duplex stainless steel S31803 (SS32205) is stronger and less likely to rust in harsh chemical environments.

Dimensional Specifications and Pressure Ratings

The MSS SP-95 standard includes swage nipples with diameters from 1/8 inch to 12 inches (DN 6 to DN 300), so it can fit a variety of pipeline designs. You can choose wall thicknesses from Schedule 5s to XXS (Double Extra Strong), so you can meet a range of pressure needs. Most of the time, these parts can handle pressures of up to 10,000 PSI, which means they can be used in high-stress situations in upstream oil and gas activities.

End Connection Requirements

Precision butt-welded end connections on all MSS SP 95 swage nipples make sure smooth flow transitions and get rid of possible leak points. The butt-welded design makes it easy to connect to existing pipeline systems safely and keeps the structure's integrity when temperature and pressure change.

Industrial Applications and Installation Best Practices

In many fields where solid pipe connections are key to running a successful business, MSS SP 95 swage nipples are essential tools. Knowing the right way to apply and install something guarantees that it works well and lasts a long time.

Oil and Gas Industry Applications

In upstream oil and gas operations, eccentric swage nipples keep air pockets from forming in pump suction lines. This keeps the flow steady and stops damage from cavitation. Concentric variants keep the flow efficient in transmission pipes by cutting down on pressure losses and turbulence. Hydrogen sulfide and carbon dioxide, which are often found in petroleum uses, can't damage these parts.

In downstream refinery activities, stainless steel MSS SP 95 swage nipples are used in catalytic cracking units and distillation columns, which are places with high temperatures and harsh chemicals that need the best material performance. Precision production makes sure that the dimensions stay stable under thermal stress, which keeps the product from breaking down too soon and causing expensive downtime.

Chemical Processing and Power Generation

Chemical processing plants use swage nipple MSS SP 95 made from metals that don't rust to deal with harsh chemicals like acids, alkalis, and organic solvents. The eccentric shape works especially well in reactor draining systems, making sure that all the liquid leaves the system and keeping the product from getting contaminated.

High-temperature metals that can handle superheated steam conditions in boiler and turbine systems are used in power generation. The strong construction keeps the pressure integrity during thermal cycling, which helps the machine be reliable and work efficiently.

Installation Procedures and Maintenance Protocols

For a proper installation to start, the pipe ends must be carefully prepared by beveling and cleaning them to get rid of any contaminants that could affect the quality of the weld. Using special fixtures to check the alignment makes sure that the links are concentric and stops stress concentration points from happening. Following the steps for qualified welding that are spelled out in ASME Section IX guarantees the strength of the structure and the control of pressure.

Visually checking for flaws on the surface, double-checking measurements with high-precision measuring tools, and non-destructive tests like magnetic particle or liquid penetrant inspection are all part of regular inspection routines. Schedules for preventive maintenance include regular pressure tests and weld integrity assessments to find problems before they happen.

Comparing MSS SP 95 with Alternative Standards and Specifications

When procurement professionals know the differences between the different swage nipple standards, they can make smart choices based on the needs of the product and the expected performance.

MSS SP 95 versus MSS SP 84 Specifications

Both standards cover the production of swage nipples, but MSS SP-95 has stricter material requirements and higher pressure values than MSS SP-84. The new standard includes rules for more modern materials like duplex stainless steels and better tolerances for size differences. MSS SP-95 also requires detailed documentation for material traceability, which makes sure that current quality management systems are followed.

The pressure capabilities are very different. MSS SP-95 parts have been tested to higher stress levels and have safety factors that are right for important applications. Although it costs more, this better performance makes things more reliable in tough operating settings.

ANSI and International Standard Comparisons

Forged fittings that meet ANSI B16.11 guidelines work in a similar way, but they have different threading and size requirements. Although ANSI valves work with most North American pipe systems, MSS SP-95 parts can handle higher pressures and come in a variety of materials that are better for certain uses.

BSP (British Standard Pipe) fittings have different thread shapes and ways of sealing, which makes it harder to use MSS SP-95 parts together. By knowing these differences, you can avoid problems with connectivity when designing a system and choosing its parts.

Performance Characteristics and Selection Criteria

The choice of material has a big effect on the total cost of ownership and the service life. Carbon steel types are cheap and work well in non-corrosive situations. Stainless steel types, on the other hand, last longer in harsh settings but cost more at first. Duplex stainless steels are more expensive than other types of stainless steel because they are more expensive but better at resisting rust.

The operating pressure, temperature, and safety factor standards determine the wall thickness. Although thicker walls can hold more pressure, they may change the way fluid flows and make fitting more difficult. Engineering analysis that takes into account all working parameters makes sure that the best components are chosen.

Procurement Strategies and Supplier Evaluation Criteria

To successfully buy MSS SP 95 swage nipples, you need to carefully evaluate potential suppliers and use smart sourcing methods that balance quality, cost, and delivery needs.

Supplier Qualification and Certification Requirements

Qualified providers keep full quality management systems that are certified to ISO 9001 standards. This makes sure that the quality of the products is always the same and that they can be tracked. For oil and gas uses, manufacturing facilities should have the right industry certifications, like API Q1 or NACE compliance for materials that don't rust.

Mill test certificates, chemical analysis results, and verifications of mechanical properties must all be included in the paperwork for material certification. Suppliers should allow full tracking from the source of the raw materials to the final inspection, so that rules in the industry and client needs can be met.

Cost Optimization and Procurement Best Practices

A lot of the time, bulk purchasing deals save a lot of money and make sure that there is enough inventory for both planned maintenance and emergency repairs. Long-term contracts with reliable suppliers keep prices stable and ensure a steady supply of goods. This is especially helpful for important uses where the costs of downtime are higher than the material premiums.

To handle lead times, you need to know how much inventory and how much the supplier can make. Standard specs usually mean shorter delivery times, while custom materials or sizes may mean longer production times. Planning ahead and managing your supplies strategically can help keep project delays and their costs to a minimum.

Quality Assurance and Inspection Protocols

When something comes in for inspection, the processes should check for compliance with dimensions, material certification, and a good surface finish. Statistical process control-based sampling plans give you trust in the quality of each lot while keeping inspection costs low. To make sure compliance, critical applications may need to be inspected 100% of the time or checked by a third party.

Supplier quality tests check how well quality systems work, how well processes are controlled, and how well manufacturers can make things. Regular checks make sure that suppliers meet performance standards and find ways to improve that are good for both parties.

QinSteel: Your Trusted MSS SP 95 Swage Nipple Manufacturer

QinSteel has been making precision-engineered MSS SP 95 swage nipples that go above and beyond industry standards and customer goals for more than 20 years. Our GMP-certified factories use cutting-edge production methods and strict quality control systems to make sure that the parts they make work reliably in the toughest situations.

Comprehensive Product Range and Customization Capabilities

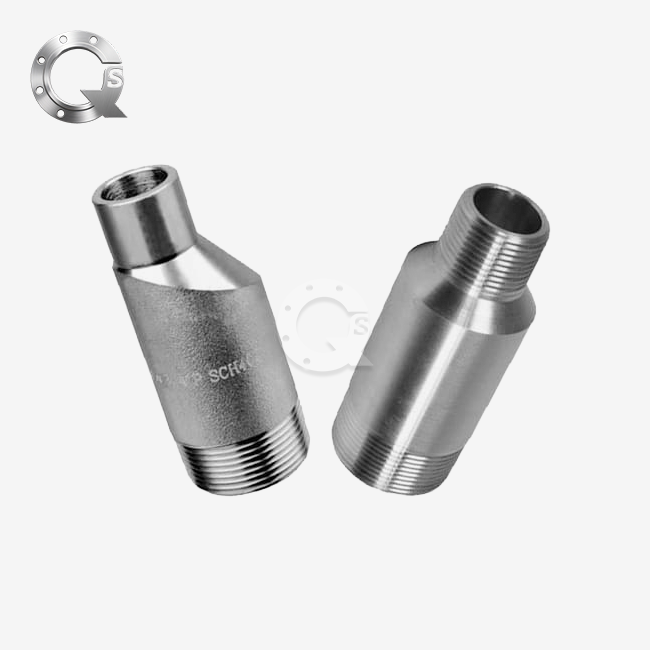

We have a huge selection of circular and eccentric MSS SP 95 swage nipples made from high-quality materials like A105 carbon steel, A350 LF2 low-temperature steel, and grades 304 and 316 stainless steel. For specific uses that need better strength and corrosion protection, custom alloys like duplex stainless steel S31803 are available.

You can choose from sizes ranging from 1/8 inch to 12 inches (DN 6 to DN 300), and the wall thickness can be Schedule 5s or XXS. This wide range of options makes sure that they will work with a variety of pipe systems and meet specific temperature and pressure needs.

Advanced Manufacturing and Quality Assurance

Every part goes through a lot of tests, such as using laser scanning to check the dimensions, hydrostatic pressure testing at 1.5 times the standard pressure, and spectrometry to figure out what the material is made of. These strict quality control methods make sure that the dimensions are correct, the pressure is stable, and the material meets the requirements.

Advanced welding and heat treatment methods are used in our industrial processes to improve mechanical properties and relieve stress. Surface treatments like galvanizing, black paint, and special coatings offer better corrosion protection for certain working conditions.

Global Supply Chain Excellence

With over 500,000 units in stock, QinSteel can quickly fill orders and ship them; most shipments are handled within 48 hours. Our global logistics network, which includes DHL and FedEx, guarantees delivery within 5–7 days to most foreign destinations. This meets the needs of urgent projects and keeps downtime to a minimum.

Our expert support team helps customers choose the right products, figure out how to use them, and fix problems. OEM and ODM services can meet custom specs and private labeling needs, so customers can make their products stand out while taking advantage of our manufacturing know-how.

Conclusion

MSS SP 95 swage nipples are important parts of modern industrial piping systems because they connect pipes of different sizes reliably while keeping the pressure and flow intact. Procurement professionals can make choices that improve system performance and operational reliability by knowing the requirements, applications, and selection criteria. The broad standard makes sure that different applications can work together and gives developers the freedom to meet specific needs. Working with reputable companies like QinSteel guarantees access to top-notch parts backed by a wealth of industry knowledge and full support services.

FAQ

What makes MSS SP 95 swage nipples different from other standards for pipes?

Compared to older standards, MSS SP-95 has higher pressure ratings, stricter material requirements, and better tolerances for size. There must be full material traceability, and the standard includes rules for high-tech materials like duplex stainless steels, which makes it ideal for high-stress industrial uses.

Can MSS SP 95 swage nipples be used in high-pressure situations?

In fact, MSS SP 95 swage nipples are made to work in high-pressure situations and can handle up to 10,000 PSI. The standard has strict testing requirements and safety factors that make sure the equipment works reliably in tough working conditions like oil and gas, chemical handling, and power generation.

How can I be sure that MSS SP 95 swage nipples are real?

Genuine MSS SP 95 swage nipples come with a lot of paperwork, like material test certificates, dimensional inspection records, and pressure test results. Suppliers should make it possible to track all of their products, from where the raw materials come from to the final review. Check for well-known quality marks like ISO 9001 and approvals specific to your business like API Q1 or NACE compliance.

What kinds of materials are used most often for MSS SP 95 swage nipples?

Some common materials are ASTM A105 carbon steel for general use, A106 Grade B for high-pressure service, grades 304 and 316 stainless steel for protection to corrosion, and A350 LF2 for use in low temperatures. For harsh chemical conditions, you can get special alloys like duplex stainless steel S31803.

What is the difference between MSS SP 95 swage nipples that are contracted and those that are expanded?

Concentric swage nipples keep flow patterns smooth and even, which makes them perfect for transmission pipes. Because they don't let air pockets form and make sure there is full drainage, eccentric swage nipples are best for pump suction lines and other uses that need full liquid exit.

Contact QinSteel for Premium MSS SP 95 Swage Nipple Solutions

Our wide selection of precisely made MSS SP 95 swage nipples at QinSteel is ready to meet all of your industrial pipe needs. The technical team at our company can help you choose the best parts for your needs, and our large collection and quick fulfillment make sure that projects don't get behind schedule. As a reliable provider of swage nipple MSS SP 95, we offer low prices along with high quality and dependability. Email our team at info@sxqinsteel.com to talk about your needs and get accurate quotes. Discover the QinSteel difference through our dedication to quality, on-time delivery, and exceptional customer service that goes above and beyond what the industry requires.
