What Is an ASME B16.11 Half Coupling and Where Is It Used?

An ASME B16.11 half coupling is a special type of forged steel pipe fitting that is used to connect branches safely in high-pressure pipe systems. These single-end fittings don't connect two pipe ends like full couplings do; instead, they connect straight to pipe walls or equipment using threaded or socket weld connections. They are made according to ASME B16.11 standards and can withstand pressures of up to 9000LB. They also work effectively in temperatures ranging from -29°C to 538°C. These small fittings are used in fields like oil and gas, petrochemicals, power generation, and water treatment to connect instruments, gauges, and other lines when room is limited and system integrity is very important.

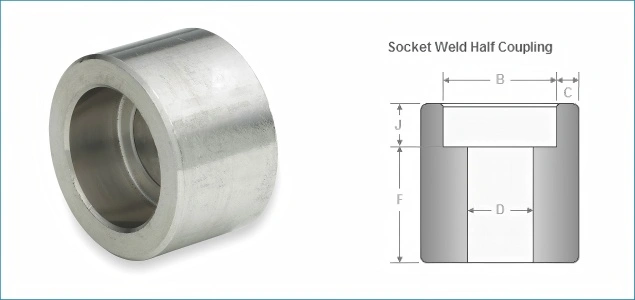

Understanding ASME B16.11 Half Couplings

The ASME B16.11 standard sets detailed requirements for forged fittings, making sure that all makers follow the same rules for size and pressure integrity. When this standard is used to make half couplings, they have to go through strict testing procedures to make sure they can work in harsh situations without leaking.

Standard Specifications and Compliance

The size requirements, temperature and pressure limits, and material requirements for forged steel fittings are set by ASME B16.11. Tolerances must be very close to the standard, usually within ±0.5mm. This makes sure that the parts fit correctly and the seal stays strong. There are 3000LB, 6000LB, and 9000LB pressure classifications, and each one matches a certain wall width and material strength need. These ratings can be used for a wide range of tasks, from water systems with moderate pressure to oil and gas activities with very high pressure.

The standard also lists the materials that can be used. For general service, carbon steel grades like A105 and A105N are allowed. For cryogenic uses, low-temperature steel A350 LF2 is allowed, and high-yield steel A694 F65 is allowed for sour gas environments. Stainless steel types like A182 F304 and F316 are better at resisting corrosion in chemical handling jobs.

Material Selection and Properties

The choice of material has a big effect on how well and how long a half coupling works. For common uses, carbon steel A105 has a great strength-to-cost ratio, and A105N has a normalized grain structure that makes it tougher. A350 LF2 steel is needed for low-temperature work because it can be bent at temperatures below zero without breaking.

Stainless steel types are better at resisting corrosion in harsh chemical environments. Grade 304 is good at protecting against mild acids and alkaline solutions, but Grade 316, which has molybdenum in it, works best in chloride-rich situations and marine settings. The chromium-nickel mix makes a passive oxide layer that fixes itself when it gets broken, so it will last for a long time.

Dimensional Standards and Size Range

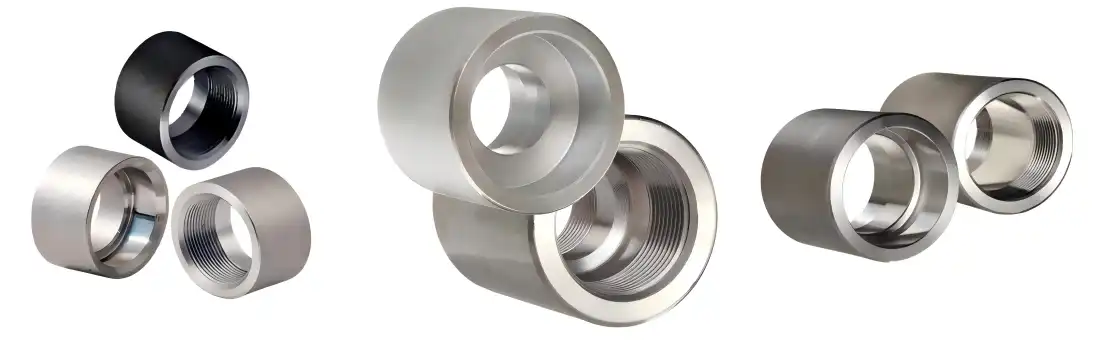

Half couplings come in sizes ranging from 1/8" to 4" nominal pipe size to meet the needs of a wide range of plumbing systems. The small design takes up as little room as possible while still providing strong connection strength. Socket weld configurations have precisely machined recesses that place pipes at the right depths. Threaded configurations, on the other hand, can accept NPT, BSPP, or BSPT connections, giving you more installation choices.

Comparing ASME B16.11 Half Couplings with Other Coupling Types

Knowing the differences between the different types of coupling helps procurement professionals choose the best options for each job. Depending on the installation needs, pressure conditions, and upkeep needs, each coupling design has its own benefits.

Half Coupling vs. Full Coupling Design

The main difference is in how the connections are made and what applications can be used. Full couplings connect two separate pipe ends to make a single pipe run, while half couplings connect two existing pipelines or pieces of equipment to make a branch link. Because of this design difference, half couplings are perfect for connecting instruments, installing pressure gauges, and connecting extra lines when it's important to keep the system running as smoothly as possible.

With B16.11 half couplings, you don't have to cut pipes in existing systems, and they take up less room when you install them. Because they only have one end, workers can make new connections without taking apart the pipes next to them, which cuts down on downtime and installation costs. The solid base design is great for supporting instruments and branch lines with small diameters.

ASME B16.11 vs. ASME B16.9 Standards

Both standards guide pipe fittings, but they are used for very different things and are made in very different ways. ASME B16.9 talks about butt-welding fittings for high-flow, large-diameter systems, and ASME B16.11 talks about forged fittings for high-pressure, small-diameter systems. The forging method used for B16.11 fittings makes the grain structure denser and the pressure resistance better than the making methods used for B16.9 fittings.

When choosing parts for different system zones, procurement teams can make better decisions when they know these differences. For cost savings and better flow, B16.9 parts may be used on main process lines instead of B16.11 fittings for high-pressure monitoring and control systems.

Material Trade-offs and Selection Criteria

Picking between carbon steel and stainless steel means weighing how resistant they are to rust, how much they cost, and how they need to be used. Options made of carbon steel are very strong and don't cost too much, but they need to be protected with coats in places where they will rust. Stainless steel versions are naturally resistant to rust and last longer, but they cost more at first.

The decision matrix should have things like fluid compatibility, temperature cycling, ease of upkeep, and the total cost of ownership listed. When used in chemical processing, stainless steel is often a good investment because it lasts longer and costs less to maintain. On the other hand, carbon steel with the right surface processes may be better for general industrial uses.

Applications and Benefits of ASME B16.11 Half Couplings in Industry

These specialized fittings are very important in many fields where strong, high-pressure links are needed. Their small size and strong build make them essential for use in instrumentation, control systems, and extra piping.

Oil and Gas Industry Applications

Fittings that can handle high pressures, changing temperatures, and corrosive conditions are needed in the oil and gas industry. When room is limited and safety is a top priority, half couplings are the best way to connect wellhead instruments, pressure monitoring systems, and sampling lines. These fittings are used for connecting drill string instruments and blowout preventers in upstream operations. They are also used for process tracking and control valve installations in downstream refineries.

The small size and high pressure ratings are especially helpful for offshore bases because they keep the system's integrity while reducing structural loading. It works with high-pressure injection systems and enhanced oil recovery processes because it can handle pressures of up to 9000 LB.

Chemical and Process Industries

Chemical plants need parts that can stand up to harsh chemicals and keep their shape when temperatures change. In reactor vessels and process lines, half couplings make it easy to connect pH monitors, temperature sensors, and sampling systems that work reliably. Precision machining makes sure that the gasket seals properly and stops fugitive fumes that could put workers' safety and environmental standards at risk.

The wide range of materials available is helpful for making specialty chemicals because it lets engineers choose the best metals for each chemical's compatibility. Because it was forged, it doesn't crack from stress corrosion and stays strong even when it's loaded and unloaded many times, which is usual in batch processing.

Power Generation and Energy Projects

Steam systems, cooling circuits, and monitoring networks all make extensive use of half couplings in power plants. The temperature rating of up to 538°C works for uses that need superheated steam, and the pressure ratings work for hydraulic control systems and emergency shutdown circuits. Nuclear power plants really like that ASME-certified fittings come with quality paperwork and a way to track down the materials used.

Here are the main reasons why these parts are so important for making electricity:

• Better use of space: the small size makes it possible to place instruments in areas with a lot of equipment without having to make a lot of changes to the pipes.

• Vibration Resistance: Socket weld connections are better at resisting fatigue in turbine settings with a lot of vibration.

• Stable at High Temperatures: Forged construction keeps its shape even when subjected to the normal thermal cycle that happens in power plants.

• Handling Pressure: High pressure values allow hydraulic safety circuits and control systems to work.

• Traceability of materials: full documentation chain meets nuclear quality assurance standards

Because these benefits are so good, they directly meet the needs for dependability of power plants, where unexpected shutdowns have big economic effects.

Water Treatment and Infrastructure

For flow measurement, chemical injection points, and pressure monitoring systems, municipal water systems and desalination plants depend on B16.11 half couplings. The corrosion resistance of stainless steel versions makes them last a long time in chlorinated water environments, and the small size makes them easy to place in valve chambers and pump stations that are underground.

The chemical compatibility and pressure ratings are helpful for industrial water treatment plants that use high-pressure membrane systems and concentrated treatment chemicals. Making new connections without draining the system keeps operations running smoothly and lowers service interruptions.

Procurement Guide for ASME B16.11 Half Couplings

To do good procurement, you need to know about the capabilities of suppliers, their quality processes, and how to deliver goods. Because these parts are so important to industrial systems, vendors must be carefully evaluated and specifications must be followed exactly.

Supplier Selection Criteria

Third-party certification and quality control systems are ways that reliable suppliers show they follow ASME standards. ISO 9001 certification means that quality control is done in a planned way, and ASME certification means that pressure vessel rules are followed. Suppliers should give full material traceability records, such as mill test papers and records of heat treatment.

The ability to manufacture has a big effect on the quality of the product and the dependability of delivery. When compared to distributors who buy from many manufacturers, suppliers who do their own forging and machining usually have better quality control and shorter wait times. Product integrity can be checked by using non-destructive testing methods like ultrasonic and magnetic particle screening.

Quality Assurance and Testing Requirements

Comprehensive testing procedures make sure that the fitting works well and meets safety standards. Hydrostatic testing at 1.5 times the working pressure makes sure that the pressure limit is solid, and pneumatic testing makes sure that the seal works well in gas service. Dimensional checking makes sure that the parts fit correctly with each other and that the gaskets work with each other.

Material verification through positive material identification makes sure that the metal is made of the right materials and stops material mix-ups that could cause it to fail early. Testing for hardness confirms that heat treatment works and that the mechanical qualities are correct. For regulatory approval, documentation packages should have test records, material certifications, and statements of compliance.

Ordering Strategies and Customization Options

Buying in bulk can save you money and make sure you have enough inventory for upkeep needs. But for exotic alloys whose prices change a lot, just-in-time shipping may be better because of material concerns. Setting up blanket buy orders with scheduled releases helps keep inventory costs low and supply safe.

When providers can customize, they can meet the specific needs of a project, such as using non-standard materials or markings in ways that aren't standard. OEM partnerships can help with brand recall and inventory management systems by offering private labeling and custom packaging.

Global Market Considerations and Lead Times

International sourcing gives you more supplier choices, but it makes shipping, quality control, and following the rules more difficult. Lead times are very different depending on the supply of materials, the capacity of the factory, and the logistics of shipping. Standard materials usually ship between 2 and 4 weeks, but it can take 8 to 12 weeks to get and handle exotic alloys.

Price stability and shipping times are affected by changes in currencies and trade policies. Having relationships with suppliers in more than one region makes the supply chain more stable and gives you more price choices. Material certificates, country of origin declarations, and compliance statements for import regulations are some of the documents that must be sent with foreign shipments.

Conclusion

ASME B16.11 half couplings are important parts of modern industrial pipe systems because they work reliably in tough situations in the oil and gas, chemical processing, power generation, and water treatment industries. Because they are small, can handle high pressures, and can be made from a variety of materials, they are essential for connecting instruments and extra pipes.

When engineers and buyers know about the technical specs, the benefits for the application, and the buying factors, they can make smart choices that improve system performance and lower costs over its lifetime. Standardized sizes, tried-and-true materials, and strict quality control make sure that these fittings will last for a long time in important industry settings.

FAQ

What distinguishes ASME B16.11 half couplings from full couplings?

Half couplings feature a single-end connection design that attaches directly to pipe walls or equipment, while full couplings join two separate pipe ends. This fundamental difference makes half couplings ideal for creating branch connections without cutting existing piping, particularly valuable for instrumentation and gauge installations where minimal system disruption is required.

How do I select the appropriate material for my application?

Material selection depends on operating conditions including temperature, pressure, and fluid compatibility. Carbon steel A105 suits general applications with moderate corrosion potential, while stainless steel grades F304 and F316 provide enhanced corrosion resistance in chemical environments. Low-temperature applications require A350 LF2 steel, and sour gas service demands high-yield steel A694 F65 for hydrogen sulfide resistance.

What pressure ratings are available for ASME B16.11 half couplings?

Standard pressure ratings include 3000LB, 6000LB, and 9000LB classifications, each corresponding to specific wall thicknesses and material strength requirements. The pressure-temperature relationship varies with material selection, with higher ratings available at ambient temperatures and reduced ratings at elevated temperatures according to ASME B16.11 guidelines.

What certifications should I require from suppliers?

Essential certifications include ASME compliance for pressure-bearing components, ISO 9001 for quality management systems, and material certificates confirming chemical composition and mechanical properties. Additional certifications such as PED for European applications and NACE for sour service environments may be required depending on specific application requirements.

Contact QinSteel for Your ASME B16.11 Half Coupling Requirements

QinSteel stands ready to support your piping system requirements with premium-quality ASME B16.11 half coupling solutions. Our extensive inventory and customization capabilities ensure rapid delivery of products that meet your exact specifications. Whether you need standard configurations or specialized materials for challenging applications, our technical team provides expert guidance throughout the selection and procurement process.

Contact our experienced team at info@sxqinsteel.com to discuss your project requirements and receive detailed quotations tailored to your specific needs. As a trusted ASME B16.11 half coupling supplier, we combine competitive pricing with exceptional quality and reliable delivery schedules that support your project success.
