ASME B16.11 90 Degree Elbow: Application Scenarios of Threaded Type vs Socket Weld Type

ASME B16.11 90 Degree Elbow is a core forged pipe fitting widely adopted in industrial piping systems worldwide, serving as an essential component for changing fluid flow direction in small-bore pipeline layouts. This standard elbow features two mainstream connection forms including threaded and socket weld types, which are precisely engineered to meet diverse pipeline installation, pressure bearing and long-term operating requirements in complex industrial environments. As a critical component fully compliant with American Society of Mechanical Engineers standard specifications, this elbow is strictly manufactured with premium carbon steel, stainless steel and alloy steel materials, adhering to unified dimensional standards, tolerance ranges and mechanical performance criteria. It delivers stable and accurate 90-degree flow direction conversion for liquid, gas and low-viscosity medium transmission pipelines. Different connection structures endow the two types of elbows with distinct application advantages, pressure resistance levels and maintenance characteristics, making them suitable for differentiated working conditions in petrochemical, thermal power, shipbuilding, pharmaceutical and food processing industries.

Basic Overview of Two Connection Types

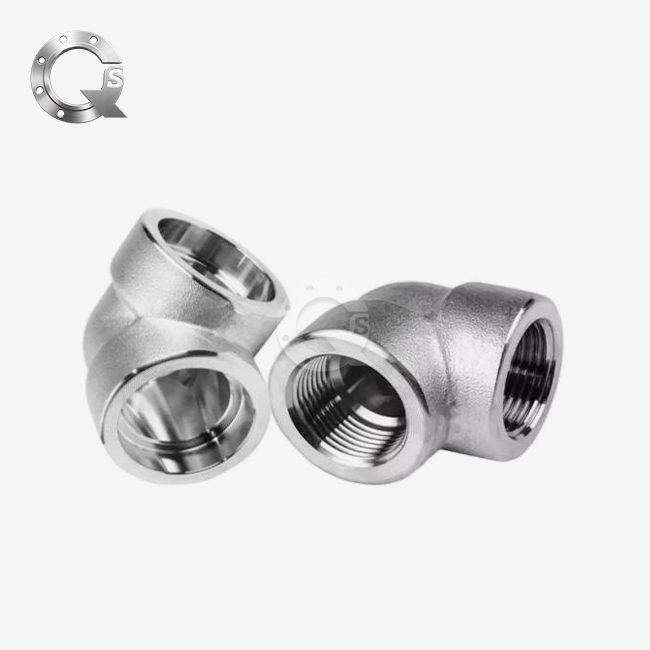

The ASME B16.11 standard strictly regulates two common connection designs for industrial 90-degree elbows, both of which are exclusively applicable to small-bore piping within the NPS 1/4 to NPS 4 size range, covering most conventional small-diameter industrial pipeline layouts. Threaded elbows are processed with precision-machined standard thread structures such as NPT American standard thread and BSPT British standard thread, with smooth thread surfaces and accurate tooth spacing, enabling tool-free quick assembly and disassembly without professional welding construction. Socket weld elbows are designed with standardized socket groove structures with precise depth and caliber, allowing seamless pipe insertion and full-circle welding fixation, delivering far superior connection tightness, structural rigidity and vibration resistance compared to threaded types. Both types uniformly follow the short-radius design specification of ASME B16.11, which effectively saves pipeline installation space, simplifies compact piping layout design, and is highly compatible with modular industrial piping systems.

Applicable Scenarios of Threaded 90 Degree Elbow

Threaded pipe elbows are prioritized for low-pressure, low-temperature and frequent maintenance pipeline systems with low sealing difficulty requirements. Their biggest core advantage lies in extremely convenient and fast installation and disassembly processes, which do not require professional welding equipment, welding operators and post-weld flaw detection procedures, greatly shortening on-site construction cycles and improving overall project efficiency. They are widely applied in precision instrument auxiliary pipelines, small-diameter civil water supply and drainage systems, low-pressure compressed air and conventional gas transmission pipelines. In ship cabin daily drainage, building auxiliary piping and conventional civil piping projects, threaded elbows can fully meet stable daily operation needs while controlling overall engineering construction costs. Besides, this type of elbow is also the optimal choice for temporary pipeline connections, equipment debugging pipelines and experimental piping systems that require frequent disassembly, replacement and later maintenance.

Applicable Scenarios of Socket Weld 90 Degree Elbow

Socket weld pipe elbows are professionally designed for high-pressure, high-temperature, vacuum and high-sealing industrial working conditions with strict safety standards. The fully welded connection method completely eliminates assembly gaps existing in threaded connections, effectively preventing medium leakage, gas permeation and external dust pollution, and can resist long-term pipeline vibration, fluid impact and temperature alternating changes. In thermal power plant cooling circulation systems, chemical corrosive medium transmission pipelines, oil and gas field surface process pipelines and petrochemical refining pipelines, socket weld elbows maintain stable structural performance and excellent durability for a long time. For ultra-clean sterile pipelines in food, beverage and pharmaceutical industries that require high cleanliness and zero contamination, this welded elbow can completely avoid residual dirt in thread gaps, fully meeting GMP international production standard piping requirements. Meanwhile, it is the exclusive preferred solution for long-term fixed industrial piping systems that do not need frequent disassembly and pursue long service life.

Key Differences in Practical Selection

In actual industrial engineering selection and pipeline design, working pressure grade, continuous operating temperature, later maintenance frequency, medium corrosiveness and pipeline service life are the core judgment indicators for elbow type selection. Threaded structures feature low cost, simple construction and flexible disassembly, which are highly cost-effective and suitable for low-load, detachable temporary and conventional pipelines. In contrast, socket weld structures have higher structural strength and sealing stability, excelling in high-load, high-corrosion, high-sealing and long-service-life industrial piping systems. Scientific and reasonable selection of the ASME B16.11 90 Degree Elbow connection type according to actual working conditions can effectively avoid pipeline leakage, structural deformation and other failure risks, significantly extend the overall service life of piping systems, and greatly reduce later operation, maintenance and replacement costs for industrial projects.

FAQs

Q1: Are threaded and socket weld elbows compliant with the same ASME B16.11 standard?

A1: Yes. Both two connection types are standardized forged pipe fittings strictly regulated under ASME B16.11 industrial standard. They share unified dimensional tolerance standards, raw material mechanical performance requirements, pressure grade classification and surface treatment specifications, with consistent production inspection standards. The only difference lies in the end connection structure, which is designed to adapt to different installation processes and working condition requirements, and both can meet the standard use requirements of supporting industrial piping systems.

Q2: Can threaded elbows be used for high-pressure steam pipelines?

A2: Not recommended in any high-pressure and high-temperature steam working scenarios. Threaded connections rely on thread fit and sealing auxiliary materials for sealing, which has limited pressure resistance and high-temperature stability. Under long-term high-pressure steam impact and high-temperature aging conditions, thread gaps are prone to deformation and loose fit, leading to medium leakage and potential safety hazards. Socket weld elbows with fully welded sealing structure are the standard and safest matching solution for industrial high-pressure steam piping systems.

Q3: What size range do these two types of elbows cover?

A3: In strict accordance with ASME B16.11 official specifications, both threaded and socket weld 90-degree elbows have a unified standard size range from NPS 1/4 to NPS 4. This size range fully covers all small and medium-bore industrial piping applications in petrochemical, power, shipbuilding and pharmaceutical industries, and can match most standard small-caliber pipeline supporting projects on the market.

Contact QinSteel for Premium ASME B16.11 90 Degree Elbow Solutions

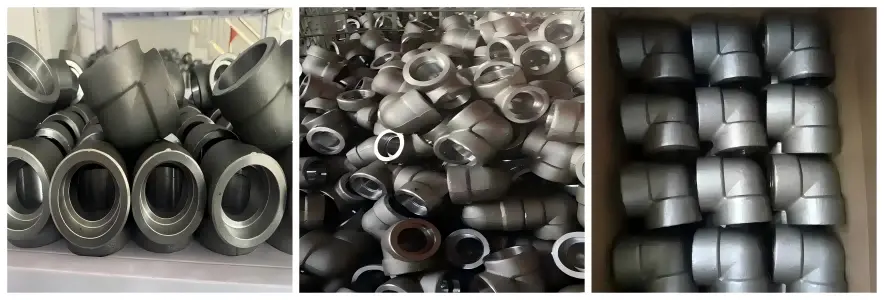

As a professional integrated manufacturer and global exporter of standard industrial pipe fittings with years of production experience, QinSteel provides full-series qualified ASME B16.11 90 Degree Elbow products, covering complete specifications of threaded and socket weld types with customizable materials and pressure grades. All our products are forged integrally, with dense internal structure, no sand holes and no cracks, and undergo strict dimensional inspection, pressure resistance testing and surface flaw detection to fully comply with international industrial standard specifications. We support customized processing according to customer drawings, bulk wholesale orders and global door-to-door shipping services. For detailed product parameter sheets, real-time quotations, personalized custom solutions and professional technical consultation for pipe fitting matching, please feel free to reach out to our professional after-sales and technical team via email: info@sxqinsteel.com. We will respond to your inquiry within 24 hours and provide you with one-stop high-quality piping fitting overall solutions.

References

[1] ASME B16.11-2021, Forged Fittings, Socket-Welding and Threaded

[2] Industrial Piping System Design and Application Specification

[3] ASME Standard Pipe Fitting Dimensional Tolerance Manual
