Understanding ASME B16.9 Fittings and Temperature Considerations
What are ASME B16.9 Fittings?

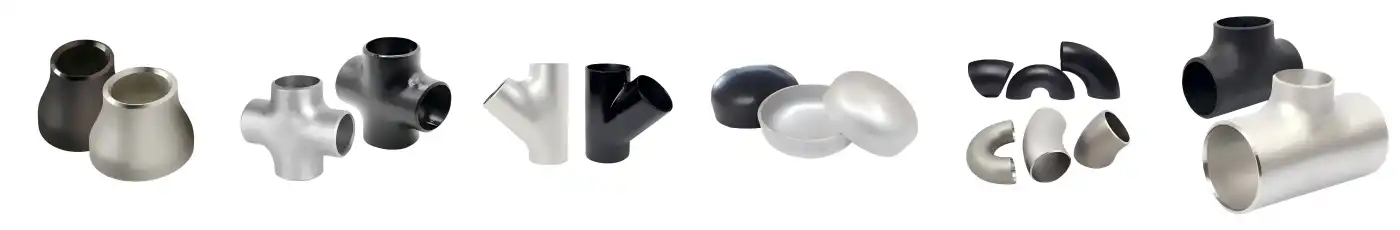

ASME B16.9 fittings are standardized butt-weld fittings used in piping systems across various industries. These fittings are designed to meet the specifications set by the American Society of Mechanical Engineers (ASME) and are known for their reliability and consistency. ASME B16.9 fittings include elbows, tees, reducers, and caps, among others, and are available in various materials to suit different temperature and pressure requirements.
The Importance of Temperature in Fitting Selection
Temperature plays a crucial role in the selection of ASME B16.9 low-temperature fitting. Different materials exhibit varying properties at different temperatures, affecting their strength, ductility, and overall performance. Choosing the wrong fitting for a given temperature range can lead to premature failure, leaks, or even catastrophic system breakdowns. Therefore, understanding the temperature limitations of different materials is essential for making informed decisions when selecting fittings for your piping system.
Temperature Ranges and Their Impact on Fitting Materials
The working temperature of a piping system significantly influences the choice of fitting materials. For instance, carbon steel fittings are suitable for moderate temperatures, while alloy steel fittings are preferred for high-temperature applications. Stainless steel fittings, particularly austenitic grades, offer excellent performance in both high and low-temperature environments. It's important to note that as temperatures increase, the strength and corrosion resistance of most materials decrease, necessitating careful consideration of material properties when selecting fittings for extreme temperature conditions.
Selecting ASME B16.9 Fittings for High-Temperature Applications
Characteristics of High-Temperature ASME B16.9 Fittings
High-temperature ASME B16.9 fittings are designed to withstand extreme heat while maintaining their structural integrity and performance. These fittings are typically made from alloy steels or high-grade stainless steels that offer excellent creep resistance, oxidation resistance, and strength at elevated temperatures. The selection of materials for high-temperature fittings also takes into account factors such as thermal expansion, thermal conductivity, and resistance to thermal fatigue.
Alloy Steel Fittings for Temperatures Above 400℃
For applications involving temperatures above 400℃, ASME B16.9 high-temperature fitting alloy steel fittings are the preferred choice. These fittings are typically made from materials such as chromium-molybdenum steel (e.g., Grade P11, P22, P91) or nickel-based alloys. Alloy steel fittings offer superior strength and creep resistance at high temperatures, making them ideal for use in power plants, refineries, and chemical processing facilities. When selecting alloy steel fittings for high-temperature applications, it's crucial to consider factors such as the specific temperature range, pressure requirements, and potential corrosive environments.
Material Considerations for Extreme Heat Conditions
When dealing with extreme heat conditions, several material properties become critical in the selection of ASME B16.9 fittings. These include creep strength, oxidation resistance, and thermal stability. Materials such as Grade 91 (P91) steel offer excellent creep resistance and are widely used in ultra-supercritical power plants. For even higher temperatures, nickel-based superalloys like Inconel 625 or Hastelloy X may be necessary. It's important to consult with material experts and refer to relevant standards and codes when selecting fittings for extreme temperature applications to ensure optimal performance and safety.
Choosing ASME B16.9 Fittings for Low-Temperature and Cryogenic Applications
Low-Temperature Resistant Stainless Steel Fittings
For cryogenic conditions ranging from -20℃ to -196℃, low-temperature-resistant stainless steel fittings are the ideal choice. Austenitic stainless steels, particularly grades such as 304L, 316L, and 347, are widely used in cryogenic applications due to their excellent low-temperature toughness and ductility. These materials maintain their mechanical properties and do not become brittle at extremely low temperatures, making them suitable for use in liquefied natural gas (LNG) plants, aerospace applications, and other cryogenic processes.
Material Selection for Cryogenic Temperatures
When selecting ASME B16.9 low-temperature fitting for cryogenic temperatures, it's crucial to consider materials that retain their ductility and impact strength at extremely low temperatures. In addition to austenitic stainless steels, other materials such as nickel-iron alloys (e.g., Invar 36) or aluminum alloys may be suitable for specific cryogenic applications. The choice of material depends on factors such as the exact temperature range, thermal contraction properties, and compatibility with the process fluid. It's important to note that not all stainless steels are suitable for cryogenic use, and careful selection based on documented low-temperature performance is essential.
Special Considerations for Sub-Zero Environments
When dealing with sub-zero environments, several additional factors need to be considered in the selection of ASME B16.9 fittings. These include thermal cycling, which can lead to fatigue failure if not properly addressed, and the potential for condensation and ice formation on the exterior of fittings. Proper insulation and vapor barriers may be necessary to prevent these issues. Additionally, the differential thermal contraction between different materials in the piping system must be accounted for to prevent stress-induced failures. When selecting fittings for sub-zero applications, it's crucial to work with experienced suppliers and engineers who understand the unique challenges posed by low-temperature environments.
Conclusion
Selecting the right ASME B16.9 high-temperature fitting based on working temperature is a critical aspect of designing and maintaining efficient and safe piping systems. For high-temperature applications above 400℃, alloy steel fittings offer the necessary strength and creep resistance. In contrast, low-temperature-resistant stainless steel fittings are ideal for cryogenic conditions between -20℃ and -196℃. By carefully considering the specific temperature requirements of your application and selecting appropriate materials, you can ensure the longevity, reliability, and safety of your piping system. Always consult with experts and refer to relevant standards when making these important decisions.
FAQs
What is the temperature range for ASME B16.9 fittings?
ASME B16.9 fittings can be used across a wide temperature range, from cryogenic conditions (-196℃) to high temperatures exceeding 400℃, depending on the material selected.
Can ASME B16.9 fittings be used in both high and low-temperature applications?
Yes, ASME B16.9 fittings are available in various materials suitable for both high and low-temperature applications. The key is selecting the appropriate material for the specific temperature range.
What materials are commonly used for high-temperature ASME B16.9 fittings?
For high-temperature applications, alloy steels such as chromium-molybdenum grades (P11, P22, P91) and nickel-based alloys are commonly used.
Expert ASME B16.9 Fitting Solutions for All Temperature Ranges | QinSteel
At QinSteel, we offer a comprehensive range of ASME B16.9 fittings suitable for all temperature requirements, from cryogenic to high-temperature applications. As a leading manufacturer and supplier, we provide expert guidance in selecting the right fittings for your specific needs. Our high-quality, precision-engineered products meet international standards and ensure optimal performance in your piping systems. Contact us at info@sxqinsteel.com for personalized solutions and competitive pricing.
References
ASME B16.9-2018: Factory-Made Wrought Buttwelding Fittings. American Society of Mechanical Engineers, 2018.
Mechanical Engineers' Handbook, Volume 1: Materials and Engineering Mechanics. Myer Kutz, 4th Edition, 2015.
Cryogenic Engineering: Fifty Years of Progress. K. D. Timmerhaus and R. P. Reed, Springer Science & Business Media, 2007.
High Temperature Materials in Power Engineering. E. Bachelet et al., Springer Science & Business Media, 2012.
Uhlig's Corrosion Handbook. R. Winston Revie, 3rd Edition, John Wiley & Sons, 2011.
Materials Science and Engineering: An Introduction. William D. Callister Jr. and David G. Rethwisch, 10th Edition, Wiley, 2018.
