Flat Rubber Seal Ring Sizing Guide: Matching Dimensions to ASME and EN Flange Standards

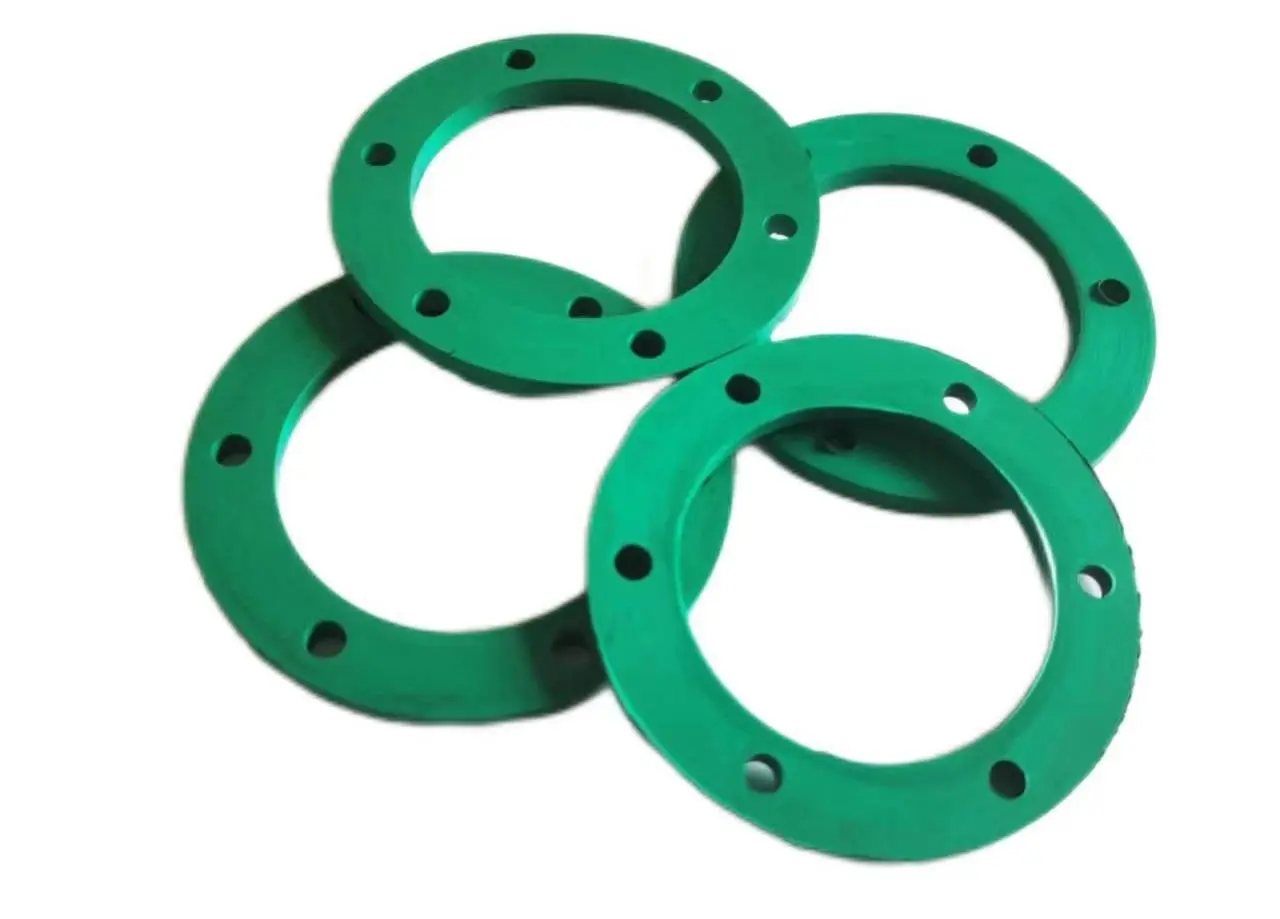

A Flat Rubber Seal Ring is often the unsung hero of industrial piping, serving as the primary barrier against leaks in low-pressure applications ranging from water treatment to chemical processing. Despite their apparent simplicity, the failure to correctly size these elastomeric components can lead to catastrophic seal failures, costly downtime, and environmental hazards. This guide delves into the technical nuances of sizing, ensuring your gaskets align perfectly with ASME and EN flange standards.

​

The Critical Importance of Dimensional Accuracy

In the realm of fluid dynamics and industrial sealing, precision is paramount. A gasket that is too small may not cover the sealing face adequately, leading to immediate leakage or "blowout" under pressure. Conversely, a component that is too large can protrude into the pipe bore, causing flow turbulence, erosion, and contamination of the medium. Therefore, understanding the dimensional tolerances and standard specifications is not merely a matter of compliance—it is a matter of operational integrity.

When selecting a Flat Rubber Seal Ring, engineers must navigate between two dominant global standards: the American Society of Mechanical Engineers (ASME) standards, primarily B16.21, and the European Norm (EN) standards, specifically EN 1514-1. While they share the same goal, their dimensional requirements often differ significantly.

Understanding ASME B16.21 Dimensions

ASME B16.21 is the governing standard for non-metallic flat gaskets in the United States and many other regions adopting American piping codes. It covers types, sizes, materials, dimensions, tolerances, and markings.

Inside Diameter (ID) and Outside Diameter (OD)
Under ASME B16.21, the dimensions are dictated by the Nominal Pipe Size (NPS) and the pressure class of the flange (e.g., Class 150, 300, 400, 600, 900, 1500, and 2500).

· Class 150 and 300: For these common pressure classes, the gasket dimensions are designed to fit within the bolt circle. The Outside Diameter (OD) typically extends close to the bolts but does not interfere with them. The Inside Diameter (ID) is generally sized to match the inside diameter of the corresponding flange, ensuring a smooth flow path.

· Higher Pressure Classes: As the pressure class increases (e.g., Class 600 and above), the flange face becomes narrower. Consequently, the OD of the gasket decreases to fit the raised face, while the ID remains consistent with the pipe bore.

Thickness Standards
ASME B16.21 specifies standard thicknesses, most commonly 1/16 inch (1.6 mm) and 1/8 inch (3.2 mm). Thicker gaskets (up to 1/4 inch) are available but are less common for standard flange applications due to the risk of creep relaxation.

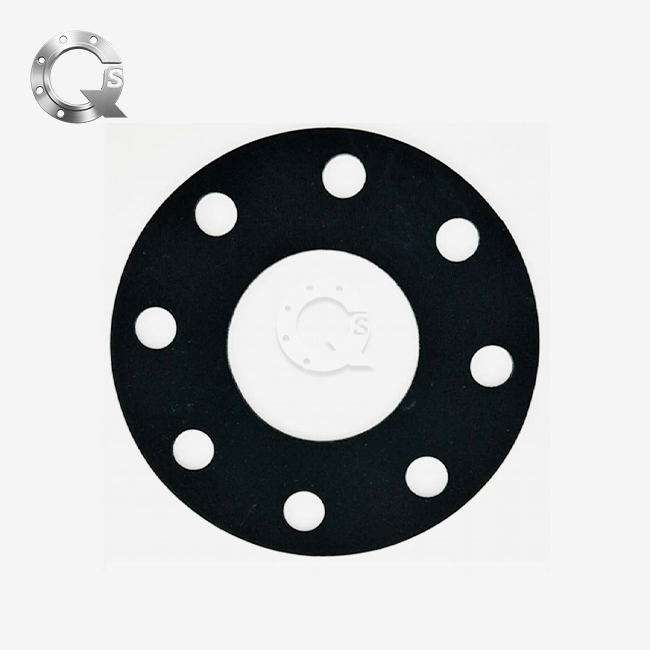

Navigating EN 1514-1 Standards

​

For projects in Europe and regions following ISO standards, EN 1514-1 is the definitive guide. This standard specifies the dimensions of non-metallic flat gaskets for pipe flanges according to the EN 1092-1 series.

Form Types (Type I and Type II)
EN 1514-1 categorizes gaskets into specific "forms" or types, which is a crucial distinction when sizing a Flat Rubber Seal Ring:

· Type I (Inside Diameter): These gaskets have an inside diameter that corresponds to the inside diameter of the flange. They are essentially full-face gaskets regarding the bore but are cut to fit the sealing face.

· Type II (Outside Diameter): These gaskets have an outside diameter that corresponds to the outside diameter of the raised face.

Dimensional Series (A and B)
A unique aspect of the EN standard is the existence of two dimensional series:

· Series A: Based on the traditional imperial/metric conversion (e.g., DN 50 corresponds roughly to 2 inches).

· Series B: Based on pure metric dimensions.

It is vital to know which series your flange belongs to, as a Series A gasket will not fit a Series B flange correctly, even if the Nominal Diameter (DN) is the same.

Material Considerations and Tolerances

While this guide focuses on dimensions, the material of the gasket influences the effective sizing due to manufacturing tolerances and compression behavior.

Elastomer Types

· Nitrile (NBR): Excellent for oils and fuels.

· EPDM: Ideal for hot water, steam, and weathering.

· Neoprene: A general-purpose synthetic rubber.

· Viton (FKM): High-temperature and aggressive chemical resistance.

Tolerances
Both ASME and EN standards allow for specific manufacturing tolerances. For example, ASME B16.21 might allow a tolerance of ±1.6mm for the ID and OD of larger gaskets. When designing a sealing solution, one must account for these variances. If the flange surface finish is rough (serrated), a slightly thicker or softer rubber might be required to ensure the material flows into the serrations to create a seal.

Installation Factors Affecting Size Selection

Proper sizing goes beyond the catalog dimensions; it involves the installation environment.

Bolt Load and Compression
Rubber is a compressible material. When the flange bolts are torqued, the seal compresses. If the gasket is too thin, it may not recover sufficiently to maintain a seal if the flange faces separate slightly due to thermal cycling.

Flange Face Condition
The condition of the mating flange faces is critical. A warped or damaged flange face may require a larger cross-section or a different material hardness (durometer) to compensate for the irregularities. Always inspect flange faces before installation to ensure they are flat and free of deep scratches.

​

FAQs

Q: Can I use an ASME B16.21 gasket on an EN flange?
A: Generally, no. While the Nominal Pipe Size (NPS) and Nominal Diameter (DN) might seem equivalent (e.g., 2" vs DN50), the bolt hole patterns and Outside Diameters often differ between ASME B16.5 and EN 1092-1 flanges. Using the wrong standard can result in misalignment and leaks.

Q: What is the maximum temperature for a standard rubber gasket?
A: This depends on the specific elastomer. Standard Nitrile (NBR) is typically rated up to 100°C (212°F), while EPDM can handle up to 130°C (266°F). For higher temperatures, Viton or PTFE-faced gaskets are recommended.

Q: How do I measure an existing gasket for replacement?
A: Measure the Inside Diameter (ID), Outside Diameter (OD), and thickness. For the most accurate results, use calipers and measure the ID and OD at multiple points to check for ovality.
