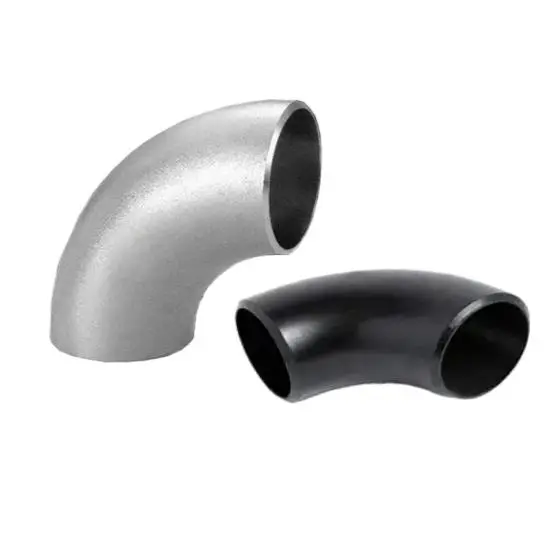

Butt Weld 90 Degree Elbow: Types, Applications, and Selection Tips

One of the most important parts of modern infrastructure is the Butt Weld 90 degree elbow, which changes the flow of fluid in industrial pipe systems. These precision-engineered fittings make it possible for pipes to change directions smoothly while keeping their structural integrity in high-pressure and high-temperature situations. Procurement workers in the oil and gas, chemical production, and power generation industries need to know about the different types, how they are used, and how to choose the right one.

Understanding Butt Weld 90 Degree Elbows

When it comes to pipe fittings, butt weld elbows are a more advanced type that are made to make lasting connections through welding. It's important to note that these parts are very different from slip-on or threaded options because they are better built and won't leak.

What Makes Butt Weld Elbows Unique

They are fundamentally different in how they weld. The elbow's end links straight to the pipe through a circumferential weld. This method makes a metal frame that is continuous, so there are no weak spots like there are in mechanical links. Because the internal tube is straight, there is less turbulence and pressure drop, which makes these fits very useful in high-flow situations.

Modern methods of production allow for both seamless and welded versions, with each having its own benefits based on the needs of the application. When made from solid pipe pieces, seamless elbows offer better strength and a more uniform grain structure. Welded versions, which are made by joining formed plates together, are a cost-effective way to handle normal pressure uses without sacrificing performance.

Material Options and Their Impact

The choice of material has a big effect on how well the elbow works, how long it lasts, and how well it fits certain settings. Most general-purpose uses use carbon steel types, especially A234 WPB and WPC grades, because they are strong for the price and can be welded using normal methods. When used as directed, these materials can withstand temperatures of up to 800°F and pressures of more than 6,000 PSI.

Stainless steels, such as A403 WP304 and WP316 types, are very resistant to corrosion, which is important for chemical handling and marine uses. The chromium makes a passive oxide layer that shields against harsh acids and chloride conditions. Duplex stainless steels, like UNS 31803; are very strong and don't rust easily, which makes them perfect for use in harsh environments like marine and sour service.

Industry Standards and Compliance

ASME B16.9 is the main standard for measurements used in North American markets for butt weld elbow production. This guideline spells out exact tolerances for sizes, requirements for wall thickness, and standards for surface finish that make sure products from different makers can work together. Standards like ASTM A234 for carbon steel and ASTM A403 for stainless steel set requirements for the makeup of materials and their functional properties.

Often, EN standards or other area requirements must be met for international projects using a 90° butt weld elbow. Understanding these needs during the buying phase keeps projects from being held up, which costs a lot of money, and makes sure they run smoothly across global markets.

Applications and Advantages of Butt Weld 90 Degree Elbows

Although butt weld elbows are used in many important industries, they are widely used because they are reliable over time and can handle tough working conditions. These parts work best in places where the security of the system can't be harmed.

Critical Industry Applications

These connections are very important for oil and gas activities in all stages, from the upstream to the downstream. Butt weld elbows are used in high-pressure process lines, distillation columns, and product transfer systems at refineries to make sure that the pressure stays stable and the hydrocarbons don't leak. The permanent welded link gets rid of any possible leak lines that could be dangerous or bad for the environment.

These bends are used in steam distribution systems, cooling circuits, and nuclear reactor cooling loops at power plants. Because they can handle heat cycling and keep their shape when temperatures change, they are essential for making sure that power plants work properly. The quality assurance and tracking rules that come with ASME B16.9 compliance are especially useful for nuclear uses.

Butt weld elbows are used in chemical processing plants to connect pressure vessels, work with toxic media, and handle reactions that happen at high temperatures. The smooth inside surface reduces the chance of pollution and makes cleaning easier, which is important for medicinal and food-grade uses.

Performance Advantages Over Alternatives

Butt weld elbows work better than slip-on flanges or threaded joints, which is why they are widely used in important situations. The welded link removes the chance of a gasket failing and ensures uniform sealing performance throughout the life of the system.

The constant nature of the soldered joint means that it doesn't need much maintenance. When properly fitted, butt weld elbows don't need to be inspected or re-torqued like bolted connections do. They stay in place without any ongoing upkeep. This feature comes in handy especially in dangerous or remote areas where it's hard to get to for upkeep.

Most of the time, butt weld joints are stronger than the pipes they connect, which makes a uniform pressure limit that spreads stress out evenly. This benefit is very important in high-pressure situations where a broken link could have terrible results.

Installation Best Practices

To do a repair job well, you need to pay close attention to the welding steps, heat treatment needs, and quality control measures. The right preparation of the pipe makes sure that the weld goes through smoothly and stops contamination that could weaken the joint. If you want to get full entry welds that meet code, the pointed ends must match perfectly.

How to treat materials with heat depends on their grade and how they will be used. Post-weld heat treatment is often needed for carbon steel uses to remove any residual stresses and recover the material's properties. For stainless steel versions, controlled cooling rates may be needed to keep rust resistance and stop sensitization.

Depending on the code, quality control methods for a Butt Weld 90 degree elbow may include a visual check, a dye penetrant test, or a radiographic examination. These steps for checking make sure that finished welds meet certain standards and will work properly for as long as they are used.

Selection Tips and Decision-Making Criteria for Procurement

To make good buying choices, you need to know a lot about the technical needs, the working conditions, and the expected long-term performance. During the selection process, many things are looked at that affect both the original prices and the overall value over time.

Material Compatibility Assessment

The most important thing to look at when choosing materials is how well they work with fluids. If they don't, they can quickly rust, become contaminated, or break down the system. Carbon steel works great in water and fuel service, but it needs to be protected against corrosion in harsh conditions. Carbon steel is a cost-effective material that works well in large-scale uses where operating processes can handle corrosion protection.

Stainless steel types are better at resisting chemicals, but you have to be careful to choose the right ones based on the chemicals that will eat away at them. Type 304 is very resistant to rust in general, and Type 316 adds molybdenum to make it even more resistant to chlorides. Even though they cost more at first, duplex grades are cost-effective for harsh settings because they are both strong and resistant to rust.

Conditions of temperature and pressure have a direct effect on the choice of material and the required wall thickness. For high-temperature work, you might need special metals like A234 WP22 or WP91 that stay strong at high temperatures. Ratings for pressure must take into account the highest pressure that can be used along with any safety limits required by the relevant codes.

Radius Selection Considerations

Long radius bends make changes in flow direction more gradual, which lowers pressure losses and erosion in high-speed situations. The bigger sweep radius, which is usually 1.5 times the width of the pipe, makes the flow patterns smoother, which improves pumping efficiency and lowers noise caused by turbulence. These benefits usually make up for the extra room needed and higher costs in important situations.

Short radius elbows, whose sweep radius is the same as the pipe diameter, can be installed in small spaces where design freedom is limited. Even though they lose more pressure and have rougher flow patterns, they can still be used in many situations where these flaws don't have a big effect on how well the system works.

Standard Compliance and Certification Requirements

Specifications for projects usually call for meeting certain standards, which affects choices about buying. ASME B16.9 compliance makes sure that the dimensions of the part are compatible with other ASME parts and makes it easier for North American projects to accept the code. For international work, EN, JIS, or other regional standards may be needed, which can change what's available and how long it takes to get it.

For important uses, third-party approval from groups like Lloyd's Register, Bureau Veritas, or other well-known bodies adds to the quality guarantee. Through independent testing and inspection processes, these certifications make sure of the quality of the materials, their mechanical features, and the way they were made.

Procurement Guide for Butt Weld 90 Degree Elbows

To do strategic buying for a 90° butt weld elbow, you need to know how the market works, what your suppliers can do, and how logistics affect project prices and timelines. Procurement teams that do their jobs well come up with complete buying plans that balance the needs for quality, cost, and service.

Supplier Evaluation Criteria

Suppliers with a good reputation keep thorough quality control systems that make sure the standard of their products is always the same and that they always deliver on time. Quality assurance starts with ISO 9001 certification, and industry-specific certifications like API Q1 or NACE standards show that you know a lot about important uses.

Manufacturing skills have a big effect on the products that are available and the customizing choices that are available. When compared to trading companies that buy from many makers, suppliers with combined manufacturing sites can offer better cost control and shorter lead times. In-house testing ensures quality control and speeds up the licensing process for projects that need to be done quickly.

Pricing Factors and Cost Optimization

The main factor that affects elbow prices is the cost of the materials used. Stainless steel and other specific metals cost a lot more than carbon steel. Because the prices of raw materials change all the time on the market, it's important to plan when to buy things and think about ways to protect prices for big orders.

Costs are affected by how complicated the manufacturing process is by the need for cutting, heat treatment, and quality control. Standard dimensional choices usually have better prices than custom setups that need special tools or longer production times.

Cost optimization is possible through quantity deals and lower per-unit transportation costs when there are a lot of orders. By combining needs from several projects or setting up blanket orders, you can save a lot of money and make sure that materials are available for planned building activities.

Logistics and Delivery Considerations

Lead times are very different depending on the type of material, the size needs, and the supplier's stock levels. Standard carbon steel elbows in popular sizes are usually always in stock. However, unique metals or large diameters may take 12 to 16 weeks to manufacture and ship.

The rules for packaging must keep goods safe while they're being shipped and stored, and they must also make handling them easier on the job site. Damage, contamination, and rust that could lower the quality of the product or mean it needs to be replaced can be avoided with proper packing. For water travel and longer transit times, export packages need extra care when packing.

QinSteel: Your Trusted Partner for Premium Butt Weld Elbows

QinSteel has been making pipeline parts like Butt Weld 90 degree elbow for 20 years and is now one of the best places to get high-quality butt weld elbows for customers in the Americas, Europe, Africa, and Southeast Asia. Our dedication to greatness drives us to keep coming up with new ways to make things and make sure they are of high quality.

Comprehensive Product Portfolio

Butt weld elbows come in a wide range of sizes, from ½" to 48", and are made in both seamless and welded styles to meet the needs of a wide range of applications. You can choose from a wide range of materials, such as carbon steel types A234 WPB, WP5, WP9, WPC, WP11, WP12, and WP22, as well as low-temperature versions like A420 WPL6 for use in arctic situations.

Standard types of stainless steel include A403 WP304 and WP316. There are also special alloys like WP321 for use at high temperatures and WP32750 super duplex for the harshest acidic conditions. UNS 31803 duplex stainless steel is strong and doesn't rust, making it perfect for use in chemical processing and marine environments.

There are different wall thickness choices, from Schedule 5S to XXS, so they can work with almost any pressure class requirement. Both long radius and short radius designs can be used in a variety of industrial settings where room is limited and flow needs to be optimized.

Manufacturing Excellence and Quality Assurance

Our modern factories use CNC making technology to get exact dimensions within ±0.5mm, which makes sure that our products fit in perfectly with existing pipe systems. To make sure they don't leak, all elbows are put through a series of tests that include hydraulic pressure tests up to 6,000 PSI and 100% non-destructive testing.

Quality approvals include ASME B16.9, ISO 9001, CE marking, and NACE MR0175 compliance, which gives customers trust for important uses in the oil and gas, chemical processing, and power generation industries. From buying the raw materials to delivering the finished product, our quality control system makes sure that all of the materials can be tracked.

Value-Added Services

QinSteel offers more than just standard products; they also offer full OEM/ODM services for unique uses that need non-standard sizes or materials. Our experienced tech team works with clients to come up with the best options that meet their performance needs and stay within their budget.

Sample services let you carefully consider a product before placing a big order. This lowers the risk of buying something and makes sure it works well for the purpose it was meant for. Because we keep more than 50,000 units in ready stock, we can ship right away for pressing project needs, avoiding delays that could affect building schedules.

Conclusion

When choosing and buying Butt Weld 90 degree elbow, you need to carefully think about the technical specs, the needs of the application, and the supplier's abilities. These important parts are very important for making sure that the system works properly and reliably in many different industry settings. Knowing the features of a material, its size requirements, and how well it works lets you make smart choices that minimize costs and increase worth over time. Working together with seasoned suppliers who have strong quality control systems and a lot of inventory is the key to a smooth project completion and reliable supply chain performance.

FAQ

What is the difference between butt weld and slip-on elbows?

Butt weld elbows are joined together with circular welds that make parts that won't leak and are very strong. Slip-on elbows link to flanges with seals that need to be maintained regularly and can let leaks happen. Butt weld joints get rid of the chance that a gasket will fail, and they also offer higher pressure rates and longer service life.

How do I determine the correct pressure rating for my application?

There are different pressure values for different types of materials and at different temperatures. ASME B31.3 has lists that show the highest pressures and temperatures that can be used with different types of materials. Always leave enough room for error, and think about situations where the pressure might rise above the usual working pressure.

What certifications should I verify when selecting a supplier?

ISO 9001 for quality management, ASME certification for pressure tank compliance, and industry-specific standards like API Q1 for oil and gas uses are all necessary certifications. According to the relevant ASTM standards, material test papers should confirm the chemical make-up and mechanical qualities.

Contact QinSteel for Premium Butt Weld 90 Degree Elbow Solutions

We at QinSteel have a huge selection of ASME B16.9-certified butt weld elbows and a lot of technical knowledge to help you with your pipeline component needs. Because they have worked on many industrial plumbing systems, our team knows how important they are and can give you custom solutions that work for your needs. We have a history of serving global markets, so you can be sure of reliable service and consistent quality, whether you need standard configurations or unique OEM solutions. Get in touch with us at info@sxqinsteel.com to talk about your needs with our Butt Weld 90 degree elbow experts and find out how our production services can help you with your next project.
