ASME B16.11 Plug: Hex Head vs Square Head vs Round Head Comparison

When choosing ASME B16.11 plugs for industrial piping systems, the head design has a big impact on how easy they are to install, how easy they are to maintain, and how well the system works overall. When procurement professionals know the differences between hex head, square head, and round head designs, they can make choices that meet the needs of their operations. This in-depth study looks at the design features, fitting issues, and performance abilities of each plug head type. It gives important information for improving the dependability of piping systems in marine, oil and gas, chemical processing, and power generation jobs.



Understanding ASME B16.11 Plugs and Their Key Specifications

ASME B16.11 plugs are important parts of high-pressure pipe systems that seal off pipe ends, valve ports, and equipment openings, either permanently or briefly. These forged fittings meet strict industry standards, so they will always work properly in a wide range of temperature and pressure situations, from 3000LB to 9000LB.

Material Compositions and Performance Characteristics

Choosing the right materials has a direct effect on how long and reliably plug setups last. Some types of carbon steel, like A105 and A105N, are very strong for most uses. Another type, A350 LF2, is better at working in low temperatures. Stainless steel types like A182 F304 and F316 are better at resisting chemicals in corrosive settings. This makes them perfect for chemical processing and marine uses.

High-alloy materials like A694 F65 can handle the high pressures that are common in upstream oil and gas activities. To make sure it meets ASME standards, each grade of material goes through strict quality control steps, such as chemical analysis and mechanical testing. Every shipment comes with material traceability documentation, which makes quality assurance methods completely clear.

Dimensional Standards and Design Variations

The sizes of ASME B 16.11 plugs range from 1/8" to 4" (DN6 to DN100), allowing for a wide variety of pipe designs used in industrial settings. The standard includes both threaded and socket weld connection types. Depending on the needs of the system, each has its own installation benefits.

Threaded plugs have NPT (National Pipe Thread) configurations that make them easy to remove, which makes them good for access points for repair and temporary closures. Socket weld designs use fillet welding to make lasting, high-strength connections. This gets rid of the possible leak paths that come with threaded connections. The type of link you choose affects the overall integrity of the system and how you maintain it.

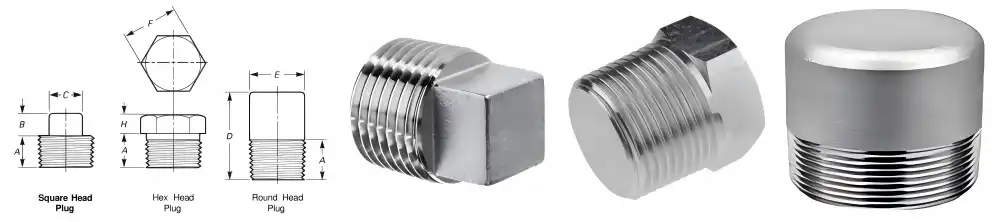

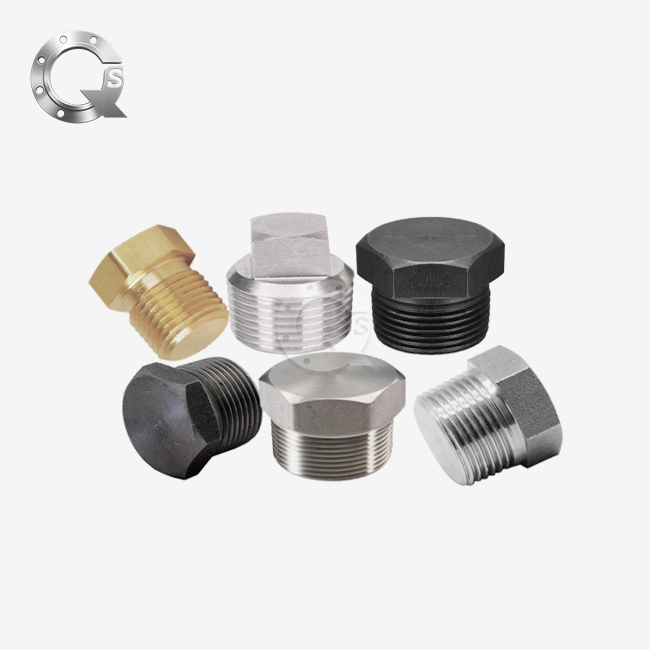

Hex Head vs Square Head vs Round Head Plugs – Detailed Comparison


The way ASME B16.11 plugs are installed, the tools that are needed, and how easy they are to get to for future maintenance tasks are all affected by the head configuration. Each design has its own benefits that work best with different operational goals and environmental limitations.

Hex Head Plug Advantages and Applications

There are six sides to hex head plugs, which makes them better at transmitting force during installation and removal. The hexagonal shape makes it possible to precisely control the torque using normal hex keys or socket wrenches. This cuts down on installation time and makes it more consistent across multiple installations.

Because the hex shape doesn't round off when the tool is engaged over and over, these designs work great in places where upkeep needs to be done often. Standardized hex sizes (usually between 1/8" and 3/4" across flats) make sure that they work with common hand and power tools used in the field. Maintenance teams like that they know what tools they'll need and that there is less chance of damage happening during removal.

Within industrial settings, like power plants and chemical processing plants, hex head designs are useful when ASME B16.11 pipe plugs need to be taken out for maintenance or system changes. The shape makes it easy to hold on to, even in tight areas where there aren't many angles of access.

Square Head Design Characteristics

Square head plugs come in four-sided shapes that combine the ability to transfer torque with the ease of manufacturing. When compared to hexagonal designs, square designs are easier to machine and provide enough grip for normal installation procedures.

These plugs work well in situations where the installation torque is mild and the plugs don't need to be taken out very often. Square heads can hold both flexible wrenches and specialized square drive tools, which lets you choose the right tool for the job. In some situations, the bigger bearing surface area compared to hex designs can help spread installation stresses more evenly.

Due to less complicated machining needs, square head plugs tend to have lower production costs than hex designs. This lower cost becomes important when buying a lot of things and need to keep the budget as low as possible without lowering performance standards.

Round Head Implementation and Limitations

Round head plugs have smooth, cylinder-shaped shapes and are made for fixed installations where they won't be taken out any time soon. These designs get rid of external driving parts, making a slimmer profile that has fewer places where corrosion can start and needs less upkeep.

Round head plugs need to be installed in a certain way, which usually involves welding or interference fit methods. Once they are in place, these plugs do a great job of sealing, and the outside surface area that is exposed to the world is very small. The smooth shape lowers turbulence in flow situations where plugs are put in tee branches or equipment openings.

Round head designs are mostly used in marine settings where resistance to corrosion from the outside is very important, such as when permanent changes are made to pipes or lines are closed down. Not having any external driving features stops people from messing with the system without permission and keeps it working well for long periods of time.

How to Choose the Right ASME B16.11 Plug for Your Industrial Needs



To choose the right plug configurations, you need to carefully look at operational factors, maintenance plans, and long-term performance goals. Pressure needs, environmental conditions, placement limitations, and total cost are all things that go into the decision-making process.

Project Requirement Analysis Framework

Figuring out the pressure class is the first step in choosing a plug. Most standard industrial applications can be handled by systems with a 3000LB pressure rating. Systems with a 6000LB or 9000LB rating can handle high-pressure situations that are common in upstream oil and gas activities. When figuring out pressure ratings, you have to think about both steady-state situations and possible changes in pressure during system transients.

Extreme temperatures, exposure to corrosive media, and the outside atmosphere are all part of environmental research. For uses above 400°C, materials need to be more resistant to creep, and for uses below -29°C, materials need to be checked for impact to make sure they don't break easily. Checking for chemical compatibility stops things from breaking down too soon because of rust or stress cracking.

Installation Method Considerations

When choosing a ASME B16.11 pipe plug head, the choice between socket weld and threaded joints is very important. Socket weld installations make links that last a long time and are very strong. They are good for important jobs where stopping leaks is very important. These links can work with any type of head, but they work best with hex or square shapes for initial alignment during the welding process.

Threaded installations are useful for maintenance entry points and temporary closures because they can be taken down easily. The quality of the thread engagement depends on how much torque is applied correctly. For consistent fitting parameters, hex head designs are better. Thread sealants and anti-seize chemicals make it easier to remove things over time while still keeping the seal's integrity.

Material Selection Criteria

When choosing materials, it's important to think about both performance needs and cost over the expected service life. For environments that don't corrode, carbon steel materials are a cost-effective option. On the other hand, stainless steel grades are worth the higher starting costs because they last longer in harsh conditions.

In terms of performance, alloy steel materials are in the middle between carbon and stainless steels. They offer better strength and moderate corrosion protection at prices that are in the middle. When choosing materials, it's important to think about not only how they will be used, but also how they might be exposed during upkeep, storage, and transport.

QinSteel: Your Trusted Partner for Premium ASME B16.11 Plug Solutions

QinSteel has been making and providing high-quality ASME B16.11 plugs to markets around the world for more than 20 years, in places like the Americas, Africa, Europe, and Southeast Asia. The oil and gas, chemical processing, power generation, and marine businesses all have different needs, so we offer a wide range of products with hex heads, square heads, round heads, and threaded and socket weld styles.

Product Excellence and Quality Assurance

Our manufacturing facilities strictly follow ASME B16.11 standards and use quality control systems that are ISO 9001 certified. Every plug goes through strict dimensional checking and hydrostatic testing to make sure it doesn't leak at the specified pressure. Material approvals include full results of chemical analyses and mechanical tests, which make it possible to track all the way back to the quality assurance documents.

The range of sizes available is from 1/8" to 4", and the pressure values are 3000LB, 6000LB, and 9000LB. The materials that can be used are A105, A105N, A350 LF2, A694 F65, and grades A182 F304/316 of stainless steel, so they can work with a wide range of working conditions. Through our OEM/ODM services, you can get materials and coatings that are made just for your purpose.

Competitive Advantages and Service Excellence

One of QinSteel's strategic advantages is that it keeps more than 50,000 units in stock so that it can send quickly via DHL and FedEx with special packaging that prevents corrosion. Our ordering policies are open enough to meet the needs of projects that need anywhere from a single unit to over 10,000 pieces. For qualified projects, bulk order discounts can reach 15-20%.

Some examples of technical support services are application advice, help with choosing materials, and help with custom design. In order to keep costs down, our experienced engineering team works with customers to choose the best plugs for their unique operating conditions. Sample services let you check the success of a full-scale procurement before committing to it.

The global supply chain makes sure that deliveries to project sites around the world are always on time, and prices stay low by using efficient manufacturing methods and smart material buying. To support foreign project schedules, our customer service team can communicate quickly and effectively in a number of languages and time zones.

Conclusion

The selection of appropriate ASME B16.11 plug head configurations significantly impacts installation efficiency, maintenance accessibility, and long-term system reliability. Hex head designs provide superior torque transmission and tool compatibility for applications requiring periodic maintenance access. Square head configurations offer balanced performance with manufacturing cost advantages for moderate-duty applications. Round head plugs excel in permanent installations where external corrosion resistance and tamper prevention are priorities.

Successful procurement strategies require comprehensive evaluation of pressure requirements, environmental conditions, installation methods, and supplier capabilities. Material selection must balance performance requirements with economic considerations across the expected service life. Strategic supplier partnerships enable access to technical expertise, customization capabilities, and competitive pricing while ensuring reliable delivery schedules and quality assurance.

FAQ

What are the main advantages of hex head plugs over square head designs?

Hex head plugs provide superior torque transmission through six-point contact compared to four-point contact in square designs. The hexagonal geometry offers better tool compatibility with standard hex keys and socket wrenches, reducing installation time and improving torque consistency. Hex heads also resist rounding under repeated tool engagement, making them preferable for applications requiring frequent maintenance access.

How do I determine the appropriate pressure rating for my application?

Pressure rating selection must account for maximum operating pressure plus safety margins as specified by applicable piping codes. Consider both steady-state conditions and potential pressure excursions during system transients. ASME B16.11 plugs are available in 3000LB, 6000LB, and 9000LB pressure classes to accommodate various industrial applications from standard process systems to high-pressure oil and gas operations.

Can different plug head types be mixed within the same piping system?

Yes, different head types can be used within the same system based on specific installation and maintenance requirements. However, maintain consistency in material grades and pressure ratings to ensure uniform system performance. Document plug locations and head types for maintenance planning purposes, particularly when mixing removable and permanent installations.

What material should I select for chemical processing applications?

Stainless steel grades A182 F304 or F316 provide excellent chemical resistance for most processing applications. F316 offers superior corrosion resistance in chloride-containing environments. For highly aggressive chemicals, consult corrosion compatibility charts and consider specialized alloys. Material selection should also account for temperature requirements and mechanical stress conditions.

Are custom dimensions available for special applications?

Yes, QinSteel offers comprehensive OEM/ODM services including custom dimensions, special materials, and modified thread configurations. Our engineering team can adapt standard designs to meet unique application requirements while maintaining ASME compliance. Custom solutions require detailed specification review and may involve extended lead times compared to standard products.

Partner with QinSteel for Reliable ASME B16.11 Plug Solutions

QinSteel delivers comprehensive ASME B16.11 plug solutions tailored to your specific industrial requirements across oil and gas, chemical processing, and power generation applications. Our extensive inventory of hex head, square head, and round head configurations ensures immediate availability for urgent project needs. Contact our technical team at info@sxqinsteel.com to discuss your requirements and receive detailed quotations. As a trusted ASME B16.11 plug manufacturer with global supply capabilities, we provide competitive pricing, rapid delivery, and expert technical support to optimize your procurement experience.
