What Working Pressure Environments Are Suitable for ASME B16.11 45Deg Elbow

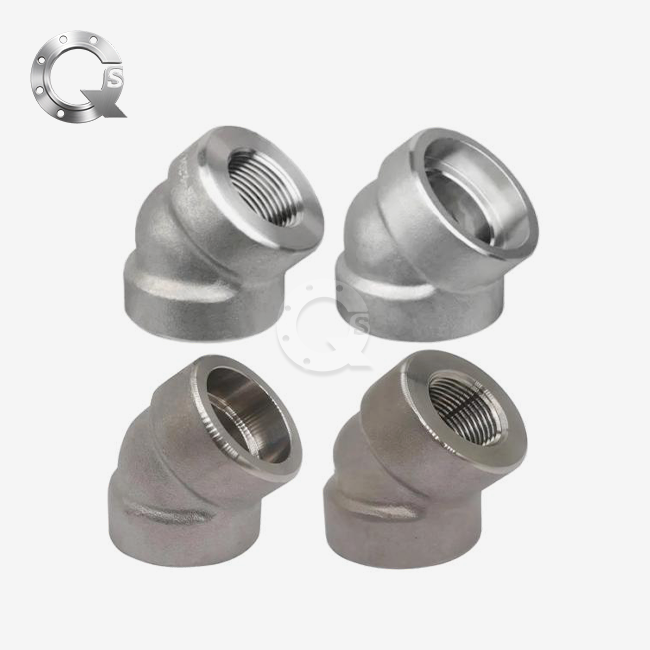

ASME B16.11 45Deg Elbow is a standardized forged pipe fitting designed for industrial piping systems, dedicated to changing fluid flow directions at a 45-degree angle. Manufactured per ASME B16.11-2016 specifications, this fitting includes socket weld and threaded types, featuring stable pressure resistance and compact structural design. It is widely adopted in medium and high-pressure industrial pipelines, serving as a key component to ensure safe and efficient fluid transmission in various heavy industrial systems.

Basic Definition and Product Features

Different from ordinary cold-bent pipe elbows, this series of forged elbows adopts one-piece integral hot forging molding technology with no secondary welding or splicing processing. The overall metal structure is dense, uniform and free of internal pores, sand holes, cracks and other structural weak points. The product boasts high dimensional accuracy, tight tolerance control, strong structural stability and excellent long-term sealing performance, perfectly adapting to 24/7 continuous pipeline operation. Its scientific 45-degree angle design effectively reduces fluid turbulence and pipeline pressure loss compared with traditional 90-degree right-angle elbows, significantly optimizing the overall transmission efficiency and energy-saving performance of industrial piping systems.

Core Pressure Rating Standards of Forged 45-Degree Elbows

Industrial forged pipe fittings follow a unified pound-level pressure rating system, which is the core basis for dividing the pressure resistance capacity of pipe fittings. ASME B16.11 standard clearly defines four mainstream pressure grades for forged elbows: 2000LB, 3000LB, 6000LB and 9000LB. Each grade corresponds to an independent allowable working pressure value under standard room temperature conditions, forming a complete pressure adaptation system for industrial pipelines.

Each pressure grade is matched with exclusive standardized wall thickness, caliber and structural dimension parameters to adapt to different load levels. Low and medium-pressure grades including 2000LB and 3000LB are tailored for conventional industrial pipelines with stable and mild operating conditions, while high and ultra-high pressure grades of 6000LB and 9000LB are customized for heavy-load, high-risk industrial working conditions. This standardized grade classification eliminates random and inappropriate product selection in engineering applications, effectively improving the standardization of pipeline design, construction and later maintenance, and fully guaranteeing the long-term operational safety of industrial piping systems.

Applicable Working Pressure and Temperature Matching Rules

The working pressure tolerance of pipe fittings is not fixed, and temperature is the primary factor affecting pressure resistance performance. Under standard room temperature of 20°C, each grade maintains the highest rated pressure bearing capacity. Specifically, 3000LB fittings bear 1360PSI, 6000LB fittings bear 2720PSI, and 9000LB fittings can withstand 4080PSI ultra-high pressure, meeting most heavy industrial high-pressure operation needs.

With the increase of operating temperature, the mechanical properties of fitting materials will decay moderately, leading to the reduction of allowable working pressure. For instance, the allowable pressure of 3000LB products drops to 1050PSI at 149°C and further decreases to 900PSI at 177°C. This professional temperature-pressure attenuation rule is fully verified by industry standard mechanical tests and long-term industrial simulation experiments, providing accurate and reliable parameter support for on-site working condition matching and pipeline system design.

Size and Pressure Resistance Correlation Rules

Under the same pressure grade, the caliber size of the fitting will directly affect the actual pressure bearing effect. Within the standard size range of 1/8 inch to 4 inches, small-caliber products have thicker relative wall thickness and more compact structural strength. With smaller fluid impact area and uniform stress distribution, small-size elbows can maintain more stable pressure resistance in long-term operation.

Large-caliber products within the 1/8 inch to 4 inches standard range have slightly lower allowable working pressure under the same grade, which is a deliberate and scientific structural design to balance overall pipeline stress. This design effectively avoids local stress concentration, structural deformation and cracking damage of large-diameter pipelines under long-term high-pressure operation, greatly improving the overall operational stability and safety redundancy of the entire piping system, and complies with the core structural design specifications of ASME B16.11 industrial standards.

Main Application Scenarios Based on Pressure Conditions

2000LB and 3000LB medium-pressure products are widely applied in various conventional industrial scenarios with mild pressure and temperature conditions. They are perfectly suitable for medium-pressure fluid transmission in fine chemical plants, low-pressure steam delivery for industrial supporting facilities, urban industrial water treatment projects, building hydraulic support systems and food processing sterile pipeline systems. These application scenarios have moderate and stable pressure requirements, and medium-pressure elbows can deliver stable and reliable operating performance while maintaining excellent cost performance and low daily maintenance costs.

6000LB and 9000LB high-pressure and ultra-high pressure products are dedicated to heavy industrial high-load and harsh working scenarios, including onshore and offshore oil and gas gathering and transportation pipelines, thermal power plant auxiliary steam and water supply piping, petrochemical high-temperature and high-pressure reaction kettle supporting pipelines, and industrial mechanical equipment high-pressure hydraulic oil circuits. Relying on mature integral die forging technology and precise CNC finishing, the products maintain ultra-stable pressure resistance, strong fatigue resistance and deformation resistance in extreme high-pressure and variable-temperature working environments.

FAQs

Q1: What connection types are available for this forged elbow?

A1: This product provides two mainstream industrial connection methods: socket weld and threaded connection, both fully compliant with the official dimensional tolerance and installation specifications of ASME B16.11. The socket weld type features precise assembly clearance, excellent overall sealing performance and strong impact resistance, making it ideal for high-pressure, high-temperature and zero-leakage required pipeline systems. The threaded connection boasts simple structure, convenient on-site installation and rapid disassembly, requiring no complex welding construction, which is suitable for quick layout and daily maintenance of small and medium-bore industrial pipelines.

Q2: What temperature range can the fitting adapt to?

A2: The standard sustainable operating temperature range of the fitting is -20°C to 600°C, covering most cold, normal and high-temperature medium transmission scenarios in the industry. We provide diversified high-quality material options including carbon steel, stainless steel and alloy steel. Carbon steel materials are suitable for conventional medium-temperature and medium-pressure working conditions with outstanding cost advantages and structural toughness. Stainless steel materials excel in low-temperature anti-brittle, anti-corrosion and anti-oxidation scenarios. Alloy steel materials are specially customized for ultra-high temperature and ultra-high pressure extreme industrial working conditions.

Q3: Is the product compliant with international export standards?

A3: All our products are strictly manufactured in accordance with ASME B16.11-2016 international industrial standards, with complete and valid factory dimension inspection reports, material mechanical test certificates and hydraulic pressure resistance test documents. All products fully meet global industrial pipeline construction standards and international export inspection requirements, and can support long-term stable cooperative supply and project supporting services for overseas engineering and trading clients.

Contact QinSteel for Premium ASME B16.11 45Deg Elbow Solutions

If you need high-standard, high-pressure resistant and long-service-life industrial pipe fittings for your pipeline engineering projects, our company provides full-specification, fully certified ASME B16.11 45Deg Elbow products covering all standard pressure grades and sizes. We support sufficient standard product spot supply and personalized customized processing for special sizes, wall thicknesses and pressure grades according to actual customer working conditions. Our professional technical team provides one-stop supporting services including parameter consultation, pipeline scheme optimization, on-site installation guidance and full-cycle after-sales support. For accurate product parameters, real-time quotations, sample confirmation and bulk long-term order cooperation, please feel free to contact our professional team via email: info@sxqinsteel.com. With rich experience in global forged pipe fitting export business, we always adhere to strict quality control standards to deliver reliable, high-precision and cost-effective pipeline solutions for global industrial clients.

References

[1] ASME B16.11-2016, Forged Fittings, Socket-Welding and Threaded[S]. American Society of Mechanical Engineers, 2016.

[2] MSS SP-79, Standard Practice for Socket Welding Forged Carbon Steel Pipe Fittings[S]. Manufacturers Standardization Society, 2020.

[3] ASTM A105/A105M, Standard Specification for Carbon Steel Forgings for Piping Applications[S]. ASTM International, 2022.
