MSS SP 83 Union vs Coupling: Which Connection Is Better?

When looking at different ways to connect high-pressure industrial pipes, picking between MSS SP 83 unions and fittings has a big effect on how well the system works and how reliable it is. Union MSS SP 83 fittings are better for serviceability because they are made of three pieces that can be taken apart without rotating the pipe. Couplings, on the other hand, make permanent connections that are great for situations where servicing access is limited. The choice you make will rely on the specific needs of your operations, the maintenance procedures, and the pressure levels in your industrial setting.

Understanding MSS SP 83 Unions and Couplings

The MSS SP 83 standard sets out detailed rules for threaded unions and connections that are used in industrial pipe systems. This document lists the materials that must be used. It usually includes carbon steel types like A105 and A105N, low-temperature steels like A350 LF2, and corrosion-resistant alloys like A182 F11, F22, F304, and F316. These choices for materials make sure that they can work in a range of working environments and chemical exposures.

Material Requirements and Pressure Ratings

MSS SP 83 parts are made to work in tough pressure environments and are usually rated for 3000LB and 6000LB systems. The standard sets temperature ranges from -20°F to 450°F (-29°C to 232°C), which can be used in boilers for making electricity, tools for processing chemicals, and drilling operations at sea. Choosing the right material depends on the service conditions. For example, carbon steel is good for general commercial uses, while stainless steel alloys are better for environments that are likely to rust.

Design Elements and Threading Types

The threading requirements in MSS SP 83 make sure that connections are stable and don't leak by using exact tolerances for size and sealing mechanisms. Unions have internal and external threading designs that make them easy to put together and take apart, while couplings have permanent threading designs that are better for long-term security. Tapered threads and sealing surfaces that stay in place even when pressure changes and temperatures rise and fall are used in sealing methods.

Sector-Specific Applications

Different businesses choose materials based on how well they work with chemicals. To make sure that fluids are transferred in a clean way, pharmaceutical applications need materials that are FDA-compliant. On the other hand, oil and gas operations need materials that can withstand contact to hydrocarbons and hydrogen sulfide. Water treatment plants can use finishes that don't rust or corrode in chlorinated environments. This keeps the equipment in good shape for longer and requires less upkeep.

MSS SP 83 Union vs Coupling: Core Differences and Comparison

According to MSS SP 83 rules, the mechanical and functional differences between union MSS SP 83 and couplings have a big effect on which ones can be used for what. When procurement workers know about these differences, they can better match connection types with operational needs.

Structural Design Variations

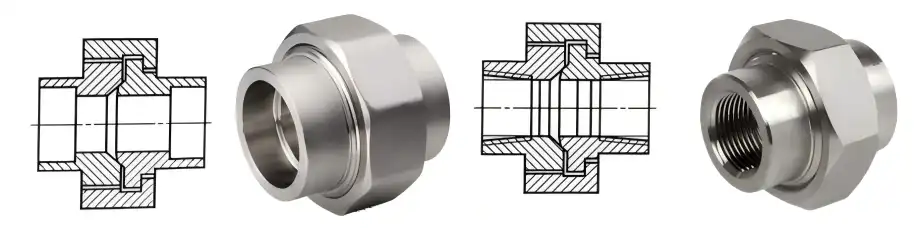

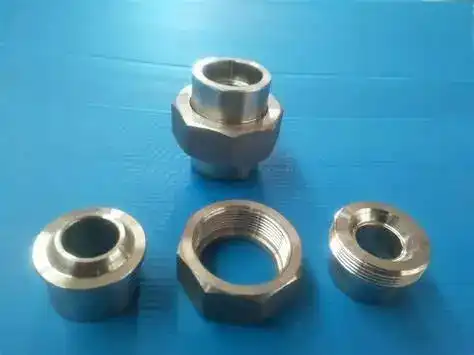

Unions are made up of three parts: two threaded ends and a central nut assembly. This makes it possible to take the whole thing apart without having to turn the pipes that are linked. This design makes it easier to do upkeep and make changes to the system while keeping the pressure integrity. Couplings have a simpler two-piece form that uses direct threading to make permanent connections. This gives them more structural strength but limits their usefulness.

Both types of connections come in sizes ranging from 1/8" to 3", so they can fit a wide range of pipe systems. Specifications for dimensional tolerances make sure that parts from different makers can be interchanged and work with each other's systems. Different wall thicknesses are used to handle different pressure ratings. For example, 6000-pound components are built stronger than 3000-pound alternatives.

Performance and Reliability Analysis

When you test union MSS SP 83 and couplings for pressure endurance, you can see that they work differently. Unions do a great job of sealing through their gasketed surfaces, keeping their leak-tight performance even when the pressure changes. The design that can be taken off lets the seal be replaced and inspected, which increases its useful life. Metal-to-metal sealing gives couplings better resistance to pressure, but they need to be replaced completely if the sealing sides get damaged.

Both types of connections are affected by temperature changing in different ways. Unions allow for thermal expansion through their mechanical interfaces, which lowers the stress that builds up at connection places. Couplings directly pass thermal stresses to the pipe system, so the placement of expansion joints and the design of support structures need to be carefully thought out.

Installation and Maintenance Requirements

There are big differences in how to install unions and couplings, which can affect project schedules and worker costs. To get a good seal without putting too much stress on the parts, unions need to be perfectly lined up and the pressure applied with care. Being able to take unions apart lets you check and fix them without shutting down the whole system. This cuts down on operational disruption and maintenance costs.

Direct fitting makes couplings easier to install, but the pipes have to be permanently placed during assembly. When doing maintenance on connections, pipes usually need to be cut and replaced, which raises the cost of materials and the number of workers needed. But because coupling connections are permanent, possible loosening doesn't happen when there is vibration.

Decision-Making Guide: Which Connection Suits Your Procurement Needs?

When choosing a link for an industrial setting, it's important to think carefully about the pressure needs, temperature ranges, and chemical exposure levels. This methodical technique guarantees the best performance while lowering the overall costs of running the business over time.

Operating Condition Assessment

For uses with pressures higher than 3000 PSI, union configurations that spread stress through mechanical interfaces instead of depending only on thread engagement are better. Chemical handling areas with rough media like stainless steel unions that can be inspected and gaskets replaced on a regular basis. In power generation situations where temperatures change often, MSS SP 83 unions are used to allow for growth without compromising the integrity of the connection.

Couplings are often preferred for low-maintenance uses that run in stable conditions because they don't move and last a long time. Coupling connections that get rid of possible leak paths and give the most strength under dynamic loading situations are good for marine environments.

Cost-Benefit Framework

A procurement cost analysis must look at both the original cost of the parts and their costs over their whole life. Unions usually have higher starting costs because they are harder to make, but they have lower maintenance costs because they are easy to fix. Couplings require less money up front, but they might cost more in the long run if they need to be replaced.

When it comes to lead time, coupling procurement is better because it makes making easier and there are more suppliers to choose from. Custom specifications and rare materials may make delivery times longer for both types of connections, so important uses need to plan ahead.

Standards Comparison

It is possible to see specific application benefits when comparing MSS SP 83 unions to other standards, such as MSS SP 95. MSS SP 95 parts can handle higher pressures and are ideal for harsh environments, but they need special tools to be installed. There are more NPT and BSP threaded connections available, but they don't have the tight tolerances of MSS SP 83 standards.

Even though Swagelok compression fittings are easier to install, they usually cost more and come in fewer sizes than threaded fittings. Which standard to use depends on the needs of the system, how easy it is to maintain, and how much it costs for each application.

Procurement Insights: Sourcing MSS SP 83 Unions and Couplings

Effective procurement strategies optimize sourcing relationships while ensuring component quality and delivery reliability. Successful sourcing requires careful evaluation of manufacturer capabilities, certification requirements, and supply chain stability.

Supplier Evaluation Criteria

Manufacturer assessment begins with certification verification, including ISO 9001 quality management systems, ASME compliance, and material traceability documentation. Established manufacturers provide EN 10204 3.1 and 3.2 material certificates that ensure chemical composition and mechanical property compliance. Testing capabilities including hydrostatic and pneumatic pressure testing per ASME B16.11 standards demonstrate quality commitment.

Production capacity evaluation considers both standard inventory availability and custom manufacturing capabilities. Suppliers with comprehensive size ranges and material options reduce procurement complexity while enabling standardization across multiple applications. Geographic distribution and logistics capabilities affect delivery schedules and emergency supply availability.

Bulk Order Management

Volume procurement strategies leverage economies of scale while managing inventory carrying costs. Annual agreements with qualified suppliers provide pricing stability and delivery priority during market disruptions. Consolidated orders across multiple projects reduce transaction costs and enable better pricing negotiations.

Custom specification management requires clear communication of technical requirements and quality standards. Detailed drawings, material specifications, and testing requirements prevent misunderstandings that could result in non-conforming deliveries. Regular supplier audits ensure continued compliance with quality and delivery commitments.

QinSteel Manufacturing Excellence

Our company brings two decades of industry expertise to MSS SP 83 component manufacturing and distribution. We maintain comprehensive inventory across Americas, Africa, Europe, and Southeast Asia markets, enabling rapid response to urgent requirements. Our manufacturing facilities combine advanced production capabilities with rigorous quality control systems that exceed international standards.

Custom manufacturing services accommodate non-standard specifications through our OEM and ODM programs. Material traceability systems ensure complete documentation from raw material receipt through final inspection and shipment. Our technical support team provides application guidance and installation assistance, reducing project risks and ensuring optimal performance.

Global compliance certifications including CE, UKCA, and PED approvals streamline international procurement while reducing regulatory delays. Our logistics network handles customs clearance, documentation, and door-to-door delivery within 15-30 days, supporting tight project schedules and just-in-time delivery requirements.

Conclusion

The selection between MSS SP 83 unions and couplings depends on balancing operational requirements, maintenance capabilities, and cost considerations. Unions excel in applications requiring serviceability and system flexibility, while couplings provide permanent connections suitable for stable operating conditions. Material selection within the MSS SP 83 standard ensures compatibility with diverse industrial environments, from chemical processing to power generation. Successful procurement requires partnering with experienced suppliers who understand application requirements and maintain quality standards. The investment in proper connection selection pays dividends through reduced maintenance costs, improved reliability, and extended system life.

FAQ

What are the main advantages of MSS SP 83 unions over couplings?

MSS SP 83 unions provide removable connections that enable system maintenance and modification without pipe cutting. The three-piece design allows gasket replacement and inspection while maintaining pressure integrity. Unions accommodate thermal expansion and vibration better than rigid coupling connections, reducing stress on connected piping systems.

How do I select the appropriate material grade for my application?

Material selection depends on operating temperature, pressure, and chemical compatibility requirements. A105 carbon steel suits general applications up to 450°F, while A350 LF2 handles low-temperature service down to -20°F. Stainless steel grades F304 and F316 provide corrosion resistance for chemical and marine environments. Consult chemical compatibility charts and consider galvanic corrosion potential when connecting dissimilar metals.

What pressure testing is required for MSS SP 83 components?

MSS SP 83 components undergo hydrostatic testing at 1.5 times the rated working pressure per ASME B16.11 standards. Additional pneumatic testing may be specified for critical applications. Testing documentation includes pressure hold times, test medium, and inspection results. Material certificates verify chemical composition and mechanical properties according to ASTM specifications.

Contact QinSteel for Expert MSS SP 83 Union Solutions

Ready to optimize your piping system connections with premium union MSS SP 83 components? QinSteel delivers precision-engineered solutions backed by 20 years of manufacturing excellence and global distribution capabilities. Our technical experts provide application-specific guidance while our comprehensive inventory ensures rapid delivery of standard and custom configurations. Connect with our engineering team at info@sxqinsteel.com to explore our complete range of certified MSS SP 83 unions and couplings. As a trusted union MSS SP 83 manufacturer, we're committed to supporting your project success.

References

Manufacturers Standardization Society. "MSS SP-83: Steel Pipe Unions - Socket Welding and Threaded." MSS Standards Practice SP-83, 2018.

American Society of Mechanical Engineers. "ASME B16.11: Forged Fittings, Socket-Welding and Threaded." ASME International, 2016.

ASTM International. "ASTM A105/A105M: Standard Specification for Carbon Steel Forgings for Piping Applications." ASTM Standards, 2019.

British Standards Institution. "BS 3799: Steel Pipe Fittings for the Petroleum Industry." BSI Standards Publication, 2017.

Pressure Equipment Directive. "Council Directive 2014/68/EU on Pressure Equipment." European Commission, 2014.

American Petroleum Institute. "API Specification 5L: Specification for Line Pipe." API Standards, 2018.
