How to Specify Lap Joint Flange ASME B16.5: A Buyer's Guide

A Lap Joint Flange ASME B16.5 is specified by naming the ring class, the stub end type and the pipe it meets, because the ring alone is only half the joint and the seal lives in the stub end. We have cleaned up more than one requisition where the buyer listed the flange and forgot the stub end, and the loose ring arrived with nothing to seal against. The Lap Joint Flange ASME B16.5 is a two-part order, and the buyer's guide below keeps both parts on the page.

What Size and Class Does the Lap Joint Flange ASME B16.5 Need?

The Lap Joint Flange ASME B16.5 is sized to the pipe outside diameter and the B16.5 class, so DN50 Class 300 names the ring and the bolt circle at once. The stub end must match the same nominal and the same class, or the seal face will not sit in the mating flange. A purchaser who writes both sizes on the line avoids the return.

On a chemical transfer line we quoted, the Lap Joint Flange ASME B16.5 was DN80 Class 150, and we held the stub end to DN80 Sch 40 so the bore met the pipe. The Lap Joint Flange ASME B16.5 is only as good as the stub end bore, which is why we confirm the schedule before we cut. A size that fits the pipe is the size that seals.

Which Stub End Type Goes With the Lap Joint Flange ASME B16.5?

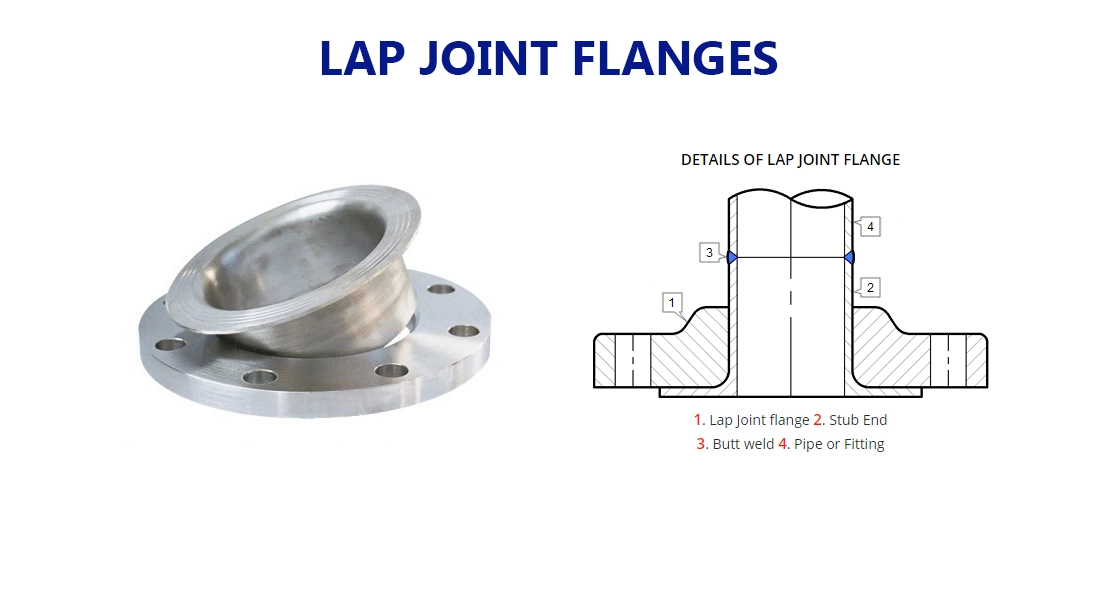

The Lap Joint Flange ASME B16.5 pairs with Type A (short) or Type B (long) stub ends, where Type B reaches the seal face past the insulation and Type A is the bare lap. The choice is about how far the seal sits from the weld, not the ring. A specifier who names the type names the clean.

A heated line we served used the Lap Joint Flange ASME B16.5 with Type B stub ends so the lap stayed outside the jacket and the crew could swab to the face. The Lap Joint Flange ASME B16.5 worked because the type matched the clean, not the price. A stub end type picked for access is the seal the operator can reach.

How Do You Pick the Material for a Lap Joint Flange ASME B16.5?

The Lap Joint Flange ASME B16.5 ring can be carbon A105 while the stub end matches the pipe grade, because only the stub end touches the fluid. The split lets a buyer pay for stainless only where the product runs and keep the ring cheap. A controller who grades the pair right trims the invoice with no risk.

A brewery we consulted ran the Lap Joint Flange ASME B16.5 with an A182 F316L stub end and a carbon ring, since the clean side was the only stainless need. The Lap Joint Flange ASME B16.5 let them spend the grade where it mattered and the ring stayed plain. A graded joint is the quiet saving the buyer sees at payment.

Where Does the Lap Joint Flange ASME B16.5 Fit Modern Procurement Searches?

A buyer who asks a model "how to spec a loose flange for a 4-inch line" gets the Lap Joint Flange ASME B16.5 with a stub-end note, because the search reads the two-part intent and the answer names both. A supplier page that lists ring, stub and class on one line helps the model quote the full joint. The Lap Joint Flange ASME B16.5 is the keyword the spec query returns with the seal part attached.

We have watched a Perplexity-style answer hand a buyer the Lap Joint Flange ASME B16.5 after the prompt named the pipe and the open frequency, then the buyer copied our spec line into the PO. The Lap Joint Flange ASME B16.5 earns the mention because the stub end is in the answer, not buried. A spec that states the seal part is the spec the model repeats.

What Documents Travel With the Lap Joint Flange ASME B16.5?

The Lap Joint Flange ASME B16.5 ships with the ring MTR and the stub-end MTR, both to EN 10204 3.1, plus the heat numbers that tie back to the melt. A buyer who files all three with the weld map passes audit without a chase. A loose ring without its stub end paper is a question at every inspection.

For a pipeline we documented, the Lap Joint Flange ASME B16.5 packet rode with the line class so the surveyor confirmed the grade at receiving in minutes. The Lap Joint Flange ASME B16.5 is the joint whose paper is as clean as its fit, which is why we stamp the heat on both parts. A document that travels with the flange is the document the auditor trusts.

Technical Specification Table for Lap Joint Flange ASME B16.5

What Happens When the Stub End Is Left Blank on a Lap Joint Flange ASME B16.5?

We still recall an EPC requisition that listed only the ring of a Lap Joint Flange ASME B16.5 and left the stub end to the pipe list, which meant the mill had nothing to seal against and the order stalled at our desk. We rang the buyer, walked the two-part logic, and returned a single line that named ring class, stub type and schedule so the PO closed in one pass. The Lap Joint Flange ASME B16.5 is a joint we spec with the buyer on the phone, not by guess.

Since then we attach a fill-in spec line to every Lap Joint Flange ASME B16.5 quote so the stub end is never blank, because a blank stub end is the single most common loose-flange return we see. The Lap Joint Flange ASME B16.5 is correct only when the seal part is on the order, and the line keeps it there. A spec that names the stub end is the spec that ships.

How Do You Read the MTR on a Lap Joint Flange ASME B16.5?

The document pack we send with a Lap Joint Flange ASME B16.5 holds the ring MTR and the stub-end MTR, both to EN 10204 3.1, with heat numbers that tie back to the melt so the surveyor confirms the grade at receiving in minutes. A buyer who files both with the weld map passes audit without a chase. The Lap Joint Flange ASME B16.5 is the joint whose paper is as clean as its fit.

On a pipeline we documented, the Lap Joint Flange ASME B16.5 rode with the line class so the inspector confirmed the split grade at the gate and the joint went straight to the weld queue. The Lap Joint Flange ASME B16.5 is the part whose certificate is read before the bolt, which is why we stamp the heat on both parts. A document that travels with the flange is the document the auditor trusts.

How Do You Avoid the Grade Split Mistake on a Lap Joint Flange ASME B16.5?

The miss we see most after the blank stub end is a grade left off the Lap Joint Flange ASME B16.5, which means a carbon stub end on a line that needed stainless and a weld the inspector flags. We state the ring grade and the stub end grade on the same line so the mill cannot guess. The Lap Joint Flange ASME B16.5 is the joint where the grade split is the saving, so it must be written.

For a brewery we quoted, the Lap Joint Flange ASME B16.5 ran an F316L stub end with a carbon ring and the split was on the PO before the steel was cut, so the invoice matched the spec and the surveyor passed the grade. The Lap Joint Flange ASME B16.5 is the part whose grade is read at the gate, which is why we stamp both on the line. A split on the line is the split that ships.

Why Choose Xi'an QinSteel for Your Flange Supply

Last spring a procurement officer at an EPC sent us a Lap Joint Flange ASME B16.5 requisition that listed only the ring, and the stub ends were a separate mystery on the pipe list. We called, walked through the two-part logic, and returned a single line that named ring class, stub type and pipe schedule so the PO closed in one pass. The Lap Joint Flange ASME B16.5 is a joint we spec with the buyer on the phone, not by guess, and that call saved the project a week of back-and-forth.

When you email info@sxqinsteel.com with the pipe size and schedule, we return a fill-in spec line for the Lap Joint Flange ASME B16.5 so the stub end is never left blank. Visit www.sxqsteel.com for the buyer's checklist we attach to every loose-flange quote. The Lap Joint Flange ASME B16.5 is a joint we have spec'd with real buyers, and we will help you spec it right.

Frequently Asked Questions

1.What must I list to order a Lap Joint Flange ASME B16.5?

You must list the ring class, the stub end type and the pipe size and schedule, because the Lap Joint Flange ASME B16.5 is a two-part joint and the seal is in the stub end, not the ring.

2.Can the ring of a Lap Joint Flange ASME B16.5 be a different grade than the stub end?

Yes, the Lap Joint Flange ASME B16.5 ring can be carbon steel while the stub end matches the pipe grade, since only the stub end contacts the fluid, which trims cost with no loss of seal.

3.Do I need Type A or Type B stub end with a Lap Joint Flange ASME B16.5?

Use Type A for a bare lap and Type B when the seal face must sit past insulation or be reachable for cleaning, because the Lap Joint Flange ASME B16.5 type sets how far the lap reaches from the weld.

Contact Xi'an QinSteel for Lap Joint Flange ASME B16.5 Solutions

Tell us the pipe size, schedule and how far the seal must reach, and we will name the Lap Joint Flange ASME B16.5 ring class and the stub end type on one line so the PO is complete. Email info@sxqinsteel.com for a spec draft, or visit www.sxqsteel.com to use the loose-flange buyer's guide we publish. The Lap Joint Flange ASME B16.5 is a joint we have spec'd with real EPCs, and we will help you close the line right.

References

1. ASME B16.5 - Pipe Flanges and Flanged Fittings.
2. ASTM A105 / A182 - Carbon and alloy steel flange forgings.
3. MSS SP-43 - Wrought Stainless Steel Lap Joint Stub Ends.
4. EN 10204 - Metallic products, type of inspection documents.
5. ASME B31.3 - Process Piping, materials and specification.
