Choosing the right carbon steel U bolt for pipe support means you need to carefully consider the weather factors, material qualities, and load requirements. These U-shaped fasteners are very important for the structure of industrial pipe systems. Choosing the right ones makes the system more reliable and helps it last longer. Key factors are how well the material grade matches, how resistant it is to rust, how accurate it is in terms of size, and how well it follows industry standards like DIN 3570 and ASME B18.31.5. Understanding these basics helps buying teams choose the best screws that also keep costs low and safety high in difficult manufacturing settings.
Understanding Carbon Steel U Bolts: Basics and Applications
Carbon steel U bolts are important parts of a fastener system. They are made in a special U-shape to make sure that pipes and other structure elements are safely held in place in a wide range of industrial settings. These screws are made from different types of carbon steel, each of which has its own mechanical properties that are suited to different needs.
Material Grades and Properties
These days, U bolts are made with different types of carbon steel so that they can meet a range of performance needs. ASTM A197 B7/B7M materials have great tensile strength, which makes them a good choice for oil and gas systems that need to be able to handle high pressure. At the same time, 45# steel has balanced strength and flexibility for general use in industry, and Q235 carbon steel provides cheap options for normal pipe support uses.
The mechanical properties of these materials significantly influence their performance characteristics. Ductility affects how well the bolt can handle dynamic loads without breaking, hardness affects how well the bolt resists wear, and tensile strength decides how much weight it can hold. Engineers can choose the right materials for the right situations when they know how these traits work.
Industrial Applications and Sizing Pipe support
Many different industries use U bolts for a wide range of tasks. These clamps are used to hold acidic media pipes in place at chemical processing plants. They are also used in power generation plants' steam and cooling systems that have high temperatures. The support of large-diameter distribution mains and process pipes in water treatment plants is provided by U bolts.

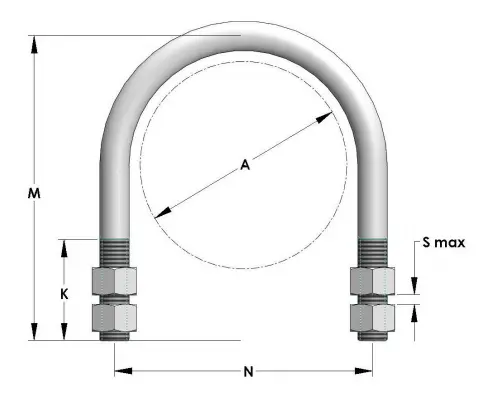

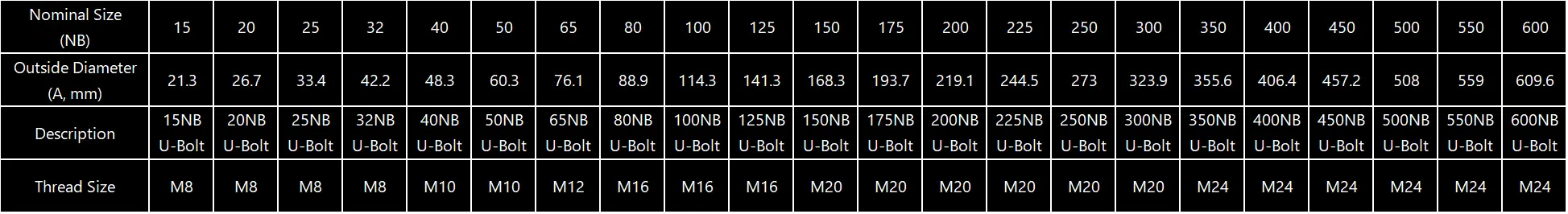

Standard sizes are from 1/2" to 24" across (DN 15–DN 600), which works for everything from small sensor lines to big transmission pipes. The ability to custom size makes sure that non-standard measurements are used in the right way for unique uses. This guarantees a perfect fit and the best spread of binding force.
Key Criteria for Selecting Carbon Steel U Bolts for Pipe Support
To ensure dependable pipe support under working situations, effective steel U bolt selection necessitates a thorough analysis of multiple performance factors. This methodical way of doing things protects the system from problems before their time and keeps it working properly for the whole service life.
Mechanical Strength Assessment
The basis for choosing the right U bolt is to evaluate the load ability. Engineers need to figure out both the static and dynamic loads. A static load comes from things like the weight of the pipe and its insulation, as well as the material that is inside the pipe. A dynamic load comes from things like heat expansion, shaking, and changes in pressure. In addition to keeping structural stability, the chosen U bolt must offer enough safety gaps over these estimated loads.
It's important to pay close attention to thread specs so that they will work with the fastening tools and apply the right amount of pressure. UNC, UNF, and metric threading choices fit a range of fitting needs, and custom threading can be used for specific cases.
Corrosion Protection Strategies
The U bolt's ability to prevent rust is very important because environmental contact affects how long it lasts. Hot-dip galvanizing is a strong way to protect things that will be used outdoors or in the water. Zinc plating is a weaker option that works best for things that will be used indoors. In building settings, black oxide paints make things look better and protect them from rust.
Phosphate treatments that help paint stick better and other coats that help fight chemicals are advanced finishing choices. Galvanic rusting can be avoided by ensuring that the U bolt and pipe materials are compatible. This is especially important when using different metals in one system.
Comparing Carbon Steel U Bolts with Alternative Materials
When choosing a material, you have to find a balance between how well it needs to work and how much it costs. Carbon steel has its own pros and cons when compared to other fastener materials.
Performance Characteristics Analysis
Carbon steel U bolts have great strength-to-cost ratios, which makes them a popular choice for normal industry uses. Their mechanical qualities allow them to support high gripping loads while also resisting wear well when used in situations of repeated loading. But if you don't use the right protection methods, they might not work in all situations because they can corrode easily in harsh settings.
Stainless steel options are more resistant to rust, but they cost a lot more. Galvanized steel is a good compromise because it protects against rust better and still doesn't cost too much. Alloy steel types work best in very hot or very cold conditions or when there is a lot of stress on the material, but they might need special purchasing considerations.
Cost-Benefit Evaluation
Economic research has to look at the costs of materials, installation, and upkeep over time. Even though carbon steel U bolts are cheaper up front, the right finishing choice might make it worthwhile to pay a little more up front in order to have less upkeep and a longer lifespan.
In applications that need to be maintained often or have high prices for replacing, lifecycle cost analysis becomes very important. These tests help find the best material specs that take into account how well CS U bolt works, how long it lasts, and how much it costs.
How to Procure High-Quality Carbon Steel U Bolts for Pipe Support?
Successful buying methods focus on finding dependable providers who show great manufacturing, consistent quality, and expert support skills that are important for critical pipe uses.
Supplier Evaluation Criteria
Qualified makers must show that they follow important industry standards, such as DIN 3570 and ASME B18.31.5. ISO 9001 certification shows that quality is managed in an organized way. For certain uses, though, specialty certifications like API or CE marks might be needed.
The ability to make things, the ability to customize, and the quality control processes should all be taken into account when evaluating manufacturing skills. For uses that aren't typical, suppliers that offer OEM/ODM services can be very helpful. At the same time, suppliers that keep a lot of inventory can be sure that shipping plans for standard goods are always met.
Quality Assurance and Documentation
Quality paperwork that covers everything has material test certificates, physical inspection records, and covering thickness measures. Records that show who has handled something and when they did so are useful for making sure that the quality is high and that the project specs or rules are followed.
The ability to see samples makes it possible to be sure of the quality of a product before buying a lot of it. Trustworthy sellers are happy to give samples with full paperwork, showing that they are sure about how their products are made and the stability of their goods.
Installation Tips and Maintenance Best Practices for Carbon Steel U Bolts
U bolt performance can be maximized with the right installation and repair procedures, which also help to avoid early breakdowns that could jeopardize the stability of the pipe support and the operation.
Installation Best Practices
To effectively spread loads across the pipe surface, proper U bolt size and backing plate selection are essential to proper fitting. The torque specs have to match the thread design and bolt grade. Systematic tightening patterns make sure that the binding force is spread out evenly.
Torque wrenches that are properly adjusted and sockets that fit correctly should be used for installation so that no damage happens during assembly. In some cases, adding lube to the thread may be needed to get the right pressure values without putting too much stress on the bolt.
Preventive Maintenance Protocols
Regular inspections should include a look for rust, cracking, or loosening, especially in places where there is a lot of pressure or temperature change. Maintenance paperwork helps keep track of how things are performing and make sure that replacement plans are used in the best possible way.
Protective layer care increases the service life of equipment, especially in tough settings. Touch-up treatments fix small covering damage before major rust sets in. At the same time, regular replacement plans make sure that critical applications don't fail unexpectedly.
QinSteel's Expertise and Carbon Steel U Bolt Solutions
For difficult pipe support uses across international industrial markets, QinSteel brings two decades of specialized knowledge in the manufacture and sale of luxury carbon steel U bolts. Our wide range of products meets the needs of different customers through cutting-edge production and service methods that focus on the customer.
We have the technical knowledge to help you choose all types of materials, from the basic ASTM A197 B7/B7M grades to the more advanced Q235 and 45# steel types. The flexibility of this material ensures that it can be used in a variety of ways to meet the needs of different applications while still being cost-effective.
The factory can make items in any size from 1/2" to 24" across (DN 15–DN 600), and can add special threads in UNC, UNF, or metric styles. To protect different kinds of outdoor exposure situations, advanced finishing facilities offer hot-dip galvanized, zinc-plated, and black oxide finishes.
Quality assurance standards keep ISO 9001 and CE certifications up while also helping with API requirements for oil and gas uses. Our tough tests check measurement accuracy, material features, and finishing quality at every stage of production. This makes sure that the products always work the way they are supposed to.
Customers in the Americas, Africa, Europe, and Southeast Asia can count on global supply chain shipping plans and prices that are always on time and cheap. Technical advice services help customers get the most out of their product standards so that they work better and don't cost as much.
Conclusion
A careful study of the material qualities, weather conditions, and operating needs must be done in order to choose the right carbon steel U bolts for pipe support. Proper design guarantees dependable performance while also making sure that costs and the need for upkeep are kept to a minimum. Key things to think about are choosing the right material type, protecting against rust, making sure the dimensions are correct, and qualifying the provider. Understanding these things helps buying teams choose the right bolts so they work well in a lot of different kinds of industries. Working with makers who have a lot of experience helps you get technical knowledge and the ability to make custom changes that are needed for complicated pipe systems.
FAQs
What carbon steel grades work best for outdoor pipe support applications?
ASTM A197 B7/B7M types with hot-dip galvanized finishes work great outdoors because they prevent rust and damage from heavy loads better than other grades. Zinc-plated Q235 steel is a good, cheap choice for situations with mild exposure.
Can carbon steel U bolts be used with stainless steel piping systems?
Yes, but to stop galvanic rusting, you need to use the right separation methods, like insulation screws or seals. While offering cost savings over stainless steel options, hot-dip galvanizing carbon steel U bolts reduce galvanic potential differences.
How do I determine the correct U bolt size for my pipe diameter?
U bolt size takes the pipe width and insulating thickness into account, along with extra space for heat expansion. Standard sizing guides show you how to pick a size, but custom sizing makes sure that you get the best fit for non-standard shapes or special insulation needs.
Partner with QinSteel for Premium Carbon Steel U Bolt Solutions
With 20 years of production experience and knowledge of the global supply chain, QinSteel offers the best carbon steel U bolt options available. ASTM A197 B7/B7M, 45# steel, and Q235 materials are just a few of the many products we offer. We also offer advanced finishing and custom size options. As a reputable carbon steel U bolt provider, we help customers around the world with low prices, quick delivery, and extensive technical advice. To get a full product list, a personalized price, or help with making sure your pipe support specs are just right, email info@sxqinsteel.com.
