Factors Influencing the Toughness of Alloy Steel Forged Flanges
Chemical Composition and Alloying Elements
The toughness of alloy steel forged flanges is primarily influenced by their chemical composition. Alloying elements play a crucial role in enhancing the mechanical properties of the base steel. Chromium, for instance, improves corrosion resistance and hardenability, while molybdenum increases strength and toughness at elevated temperatures. Nickel, another common alloying element, enhances toughness and ductility, especially in low-temperature applications.
The precise balance of these alloying elements is carefully controlled during the manufacturing process to achieve the desired toughness. For example, a typical alloy steel forged flange might contain 0.5-1% chromium, 0.15-0.25% molybdenum, and 0.4-0.7% nickel. This composition results in a material that exhibits excellent toughness across a wide range of operating conditions.
Heat Treatment Processes
Heat treatment is a critical step in optimizing the toughness of alloy steel forged flanges. The process involves heating the flange to a specific temperature, holding it for a predetermined time, and then cooling it at a controlled rate. This procedure alters the microstructure of the steel, refining grain size and distributing alloying elements more uniformly.
Common heat treatment methods for alloy steel forged flanges include:
- Normalizing: This process involves heating the flange above its critical temperature and then allowing it to cool in air. It helps achieve a uniform grain structure and improves overall toughness.
- Quenching and Tempering: This two-step process first rapidly cools the heated flange (quenching) and then reheats it to a lower temperature (tempering). This method significantly enhances toughness by creating a fine-grained martensitic structure.
- Stress Relieving: This heat treatment reduces internal stresses that may have developed during forging or machining, further improving the flange's toughness and dimensional stability.
Forging Techniques and Quality Control
The forging process itself greatly influences the toughness of alloy steel flanges. Hot forging, typically performed at temperatures between 1,000°C and 1,250°C, allows for significant deformation of the material, resulting in a refined grain structure and improved mechanical properties. The forging process also helps eliminate porosity and internal defects, contributing to enhanced toughness.
Quality control measures throughout the manufacturing process are essential for ensuring consistent toughness in alloy steel forged flanges. These measures include:
- Strict material selection and testing of raw materials
- Precise control of forging temperatures and deformation rates

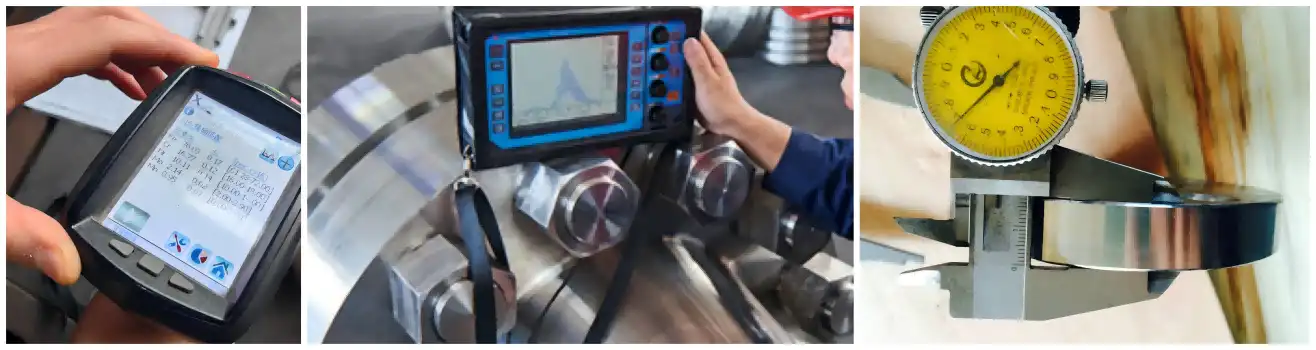

- Non-destructive testing methods such as ultrasonic inspection and magnetic particle testing to detect any internal flaws
- Mechanical testing, including impact tests and tensile strength tests, to verify toughness and other mechanical properties
Evaluating the Toughness Performance of Alloy Steel Forged Flanges
Impact Testing Methods
Impact testing is a crucial method for evaluating the toughness of alloy steel forged flanges. The most common impact test is the Charpy V-notch test, which measures the energy absorbed by a material during fracture. This test provides valuable information about a flange's ability to resist sudden, high-energy impacts.
In the Charpy V-notch test, a notched specimen is struck by a pendulum hammer, and the energy absorbed during the fracture is measured. Alloy steel forged flanges typically exhibit high impact energy values, often exceeding 27 joules (20 ft-lbs) at room temperature. This high impact resistance is a key indicator of their superior toughness.
Another important aspect of impact testing is the ductile-to-brittle transition temperature (DBTT). Alloy steel forged flanges generally maintain their toughness at lower temperatures compared to carbon steel flanges, making them suitable for low-temperature applications.
Fracture Toughness Assessment
Fracture toughness is a more advanced measure of a material's ability to resist crack propagation. It is particularly relevant for alloy steel forged flanges used in critical applications where the consequences of failure could be severe. Fracture toughness is typically measured using the KIC (plane-strain fracture toughness) or JIC (J-integral fracture toughness) parameters.
Alloy steel forged flanges generally exhibit high fracture toughness values, which means they can tolerate larger flaws before catastrophic failure occurs. This property is crucial in ensuring the safety and reliability of pressurized systems, where the flange acts as a critical component.
The fracture toughness of alloy steel forged flanges can be further enhanced through careful control of the microstructure during heat treatment. For instance, achieving a fine-grained bainitic or tempered martensitic structure can significantly improve fracture toughness while maintaining high strength.
Long-term Performance and Fatigue Resistance
The toughness of alloy steel forged flanges is not just about withstanding single, high-energy impacts. It also encompasses their ability to resist fatigue and maintain performance over extended periods under cyclic loading conditions. Fatigue resistance is particularly important in applications where flanges are subjected to repeated stress cycles, such as in offshore oil and gas platforms or power generation facilities.
Alloy steel forged flanges demonstrate excellent fatigue resistance due to several factors:
- High yield strength and tensile strength, which help resist plastic deformation
- Uniform microstructure achieved through proper forging and heat treatment
- Presence of alloying elements that impede dislocation movement and crack propagation
- Smooth surface finish and proper stress relief, which minimize stress concentration points
Long-term performance studies have shown that properly manufactured and installed alloy steel forged flanges can maintain their toughness and structural integrity for decades, even in harsh operating environments. This longevity is a testament to their superior toughness and reliability.
Applications Benefiting from the Toughness of Alloy Steel Forged Flanges
Oil and Gas Industry
The oil and gas industry heavily relies on the exceptional toughness of alloy steel forged flanges. In offshore platforms, subsea pipelines, and refineries, these flanges are exposed to extreme pressures, corrosive fluids, and fluctuating temperatures. The high impact resistance and fatigue strength of alloy steel forged flanges make them ideal for these demanding applications.
For instance, in deep-sea oil extraction, flanges must withstand not only high internal pressures but also external hydrostatic pressures and potential impacts from underwater equipment. Alloy steel forged flanges, with their superior toughness, provide the necessary reliability and safety in these critical systems.
Power Generation Sector
In power plants, particularly those using steam turbines, alloy steel forged flanges play a crucial role in maintaining system integrity. These flanges are used in high-temperature, high-pressure steam lines where toughness is paramount. The ability of alloy steel forged flanges to resist creep and maintain their mechanical properties at elevated temperatures makes them indispensable in this sector.
Moreover, in nuclear power plants, where safety is of utmost importance, the toughness and reliability of alloy steel forged flanges contribute to the overall integrity of the reactor coolant system. Their resistance to radiation-induced embrittlement further enhances their suitability for nuclear applications.
Chemical and Petrochemical Industries
The chemical and petrochemical industries often deal with corrosive substances and operate under harsh conditions. Alloy steel forged flanges, with their combination of toughness and corrosion resistance, are widely used in these industries. Their ability to withstand both mechanical stresses and chemical attack ensures long-term reliability in critical process equipment.
In applications such as high-pressure reactors or distillation columns, the toughness of alloy steel forged flanges provides an extra margin of safety. This is particularly important when dealing with hazardous materials where leakage or failure could have severe consequences.
Conclusion
The toughness of alloy steel forged flanges is a critical factor in their widespread use across various demanding industries. Their superior impact resistance, fatigue strength, and ability to maintain performance under extreme conditions make them an indispensable component in many high-stakes applications. The combination of carefully selected alloying elements, advanced forging techniques, and precise heat treatment processes results in flanges that offer unparalleled toughness and reliability. As industries continue to push the boundaries of operational limits, the role of tough, dependable alloy steel forged flanges in ensuring safety and efficiency will only grow in importance.
FAQs
What makes alloy steel forged flanges tougher than standard steel flanges?
Alloy steel forged flanges contain additional elements like chromium and molybdenum, which enhance their mechanical properties. The forging process and heat treatment also contribute to their superior toughness by refining the grain structure and optimizing the material's microstructure.
How does the toughness of alloy steel forged flanges benefit industrial applications?
The high toughness of these flanges translates to better resistance against impact, fatigue, and crack propagation. This makes them ideal for use in high-pressure, high-temperature, and corrosive environments commonly found in oil & gas, power generation, and chemical processing industries.
