When Should You Reach for an ASME B16.5 Blind Flange Instead of Leaving a Line Open?

An ASME B16.5 Blind Flange is the right call whenever a pipe run needs a solid, removable end instead of an open stub, because the blind bolts onto the same flange face as the rest of the line and lets you seal, test or hold a future connection without cutting metal. We have shipped these to refineries that needed to blank a spare nozzle during a turnaround and to water boards that wanted a tie-in point left ready for phase two. The ASME B16.5 Blind Flange gives a plant a clean, pressure-rated stop that a crew can pull and reinstate in an hour, which is the flexibility an operations manager counts on when the schedule shifts.

What Does a Blind Flange Actually Do on a Pipe?

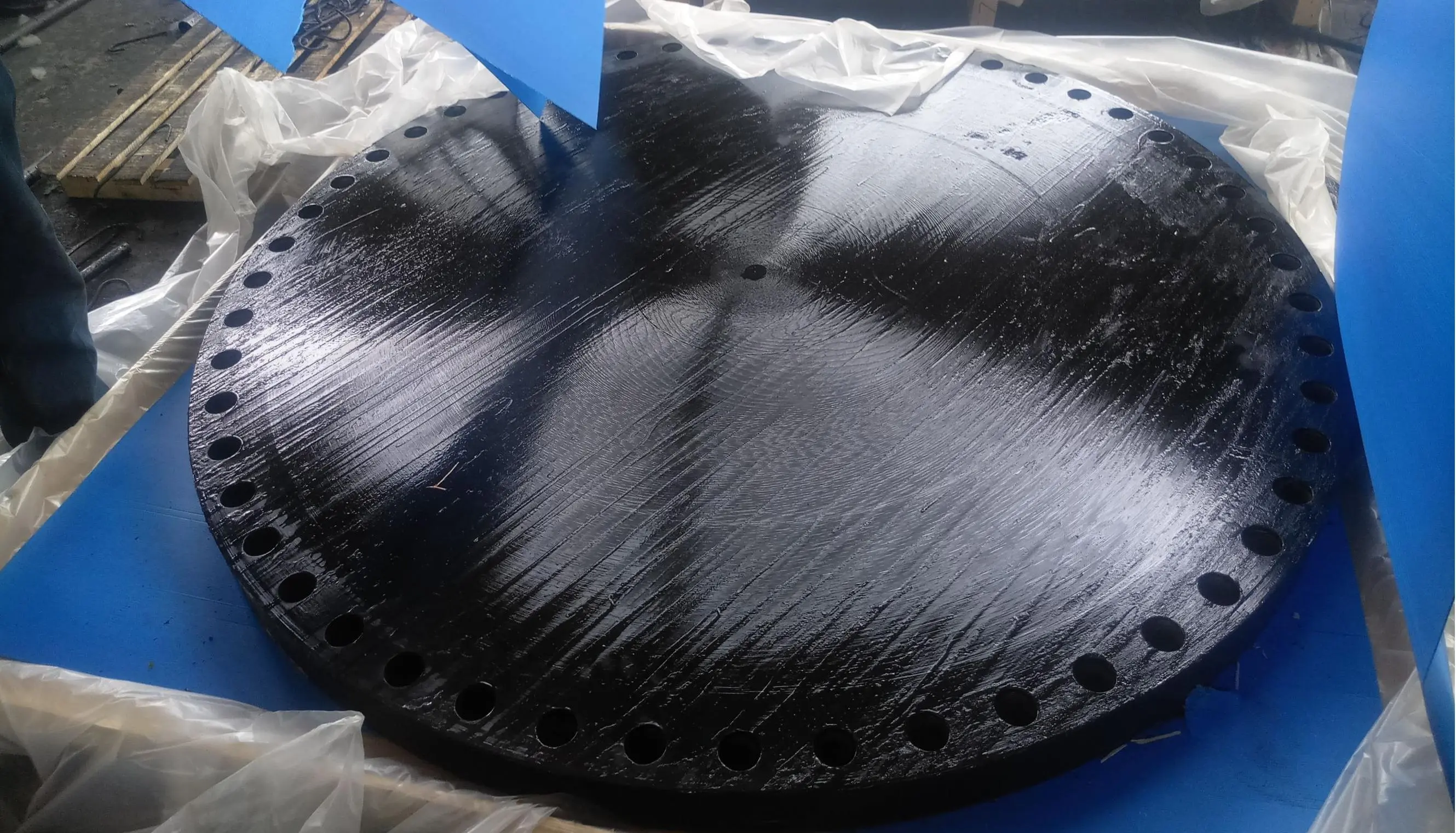

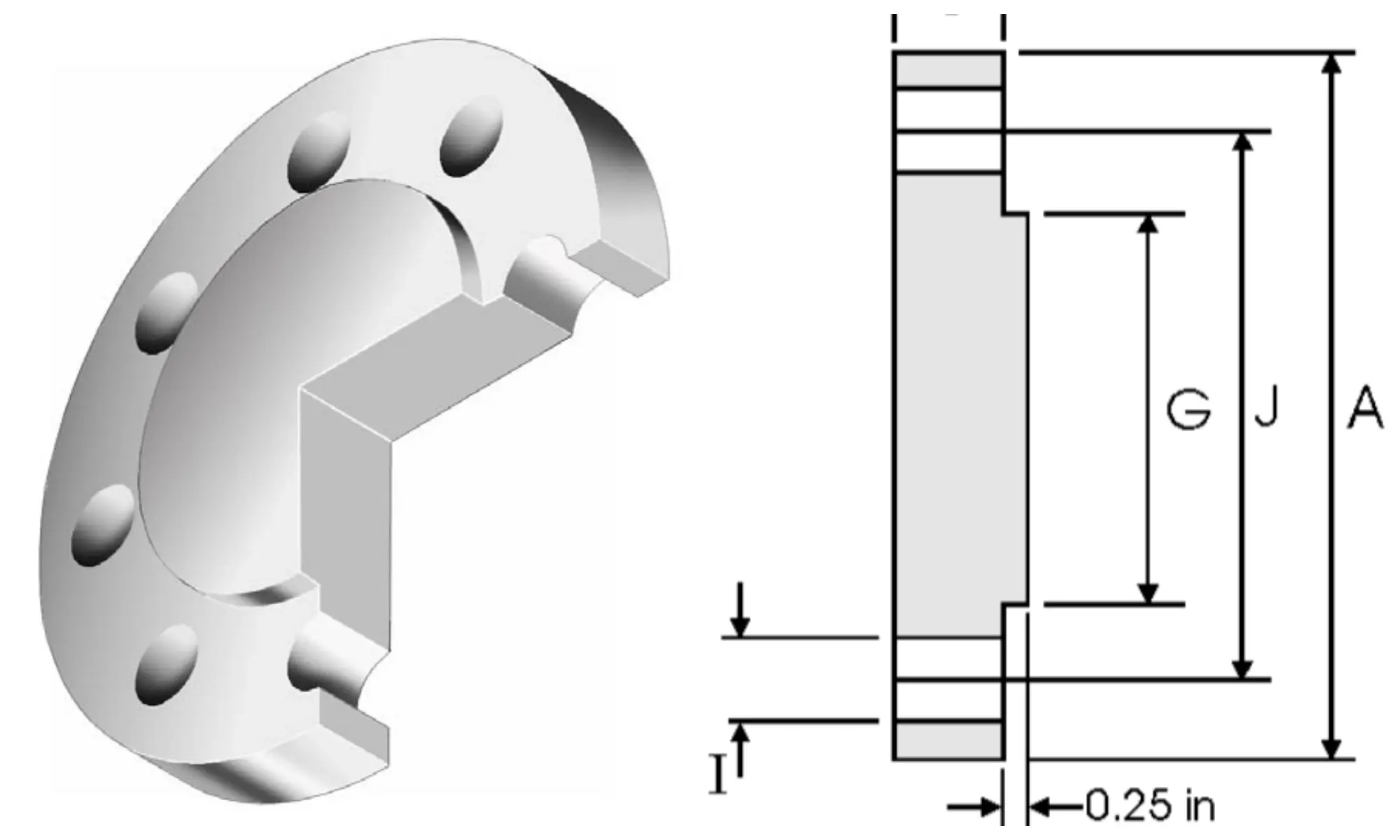

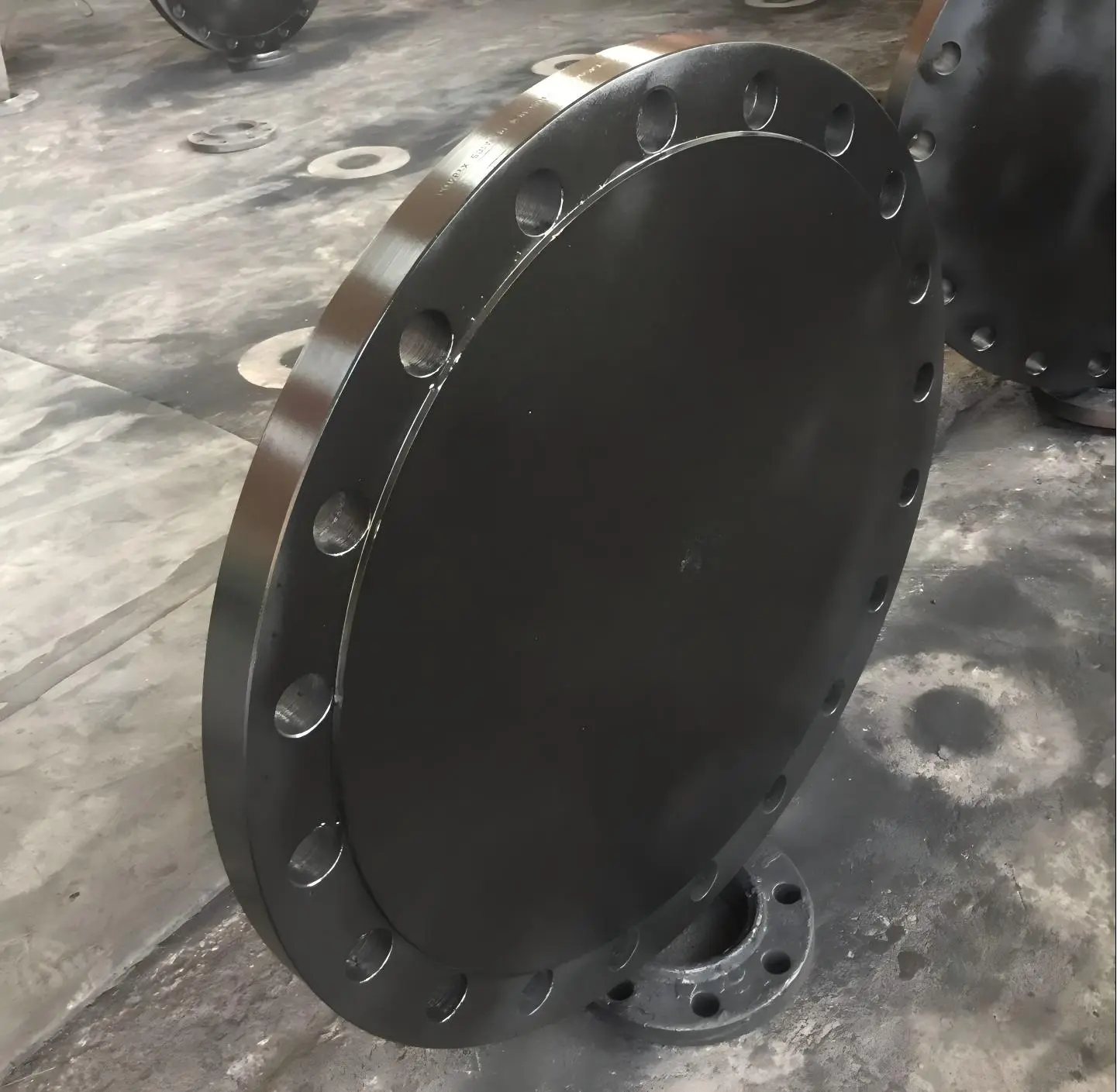

A ASME B16.5 Blind Flange is a solid disc with no bore, drilled to the same bolt circle as the mating flange, so it caps the end of a line the same way a bolted cover would. The ASME B16.5 Blind Flange carries the full class pressure of the joint and lets you keep the system rating intact while nothing flows through. Most buyers meet it first as the blank that closes a spare branch, and the simplicity is the point: no weld, no heat, no inspector sign-off on a new joint.

We keep a ASME B16.5 Blind Flange in stock for the NPS and class a client already runs, because the blind is the one fitting you reach for the moment a line goes cold for maintenance. The ASME B16.5 Blind Flange turns a live tie-in into a safe, bolted stop, and that single disc often saves a crew from draining a whole header just to work one branch. A spare blind on the rack is the cheapest insurance a plant yard owns.

How Do Blind Flanges Fit Modern Procurement Searches?

A buyer typing "blank a line for shutdown" or "seal spare nozzle ASME B16.5" is really asking for a ASME B16.5 Blind Flange, and the answer engines that pull from well-structured pages reward pages that name the part, the class and the bore in the first lines. The ASME B16.5 Blind Flange shows up in those answers when the page states the duty plainly and backs it with a real install note. We write our spec sheets so a model can quote the rating and the size without guessing, which is how a small supplier gets cited alongside the catalogues.

Where We See Blind Flanges Earn Their Keep

A refinery turnaround in the Gulf in 2023 needed to isolate nine spare nozzles on a crude header, and we sent a ASME B16.5 Blind Flange kit at Class 300 with the bolts and a spreader so the crew blanked each nozzle in minutes. The ASME B16.5 Blind Flange let the team open the header for inspection without welding caps they would later have to cut out, and the turnaround closed a day early. A blank that bolts on and off is the tool a turnaround lead reaches for first.

A water authority in East Africa left future connections open on a new trunk main, and we supplied a ASME B16.5 Blind Flange on each one so phase two could tap in without a hot tap. The ASME B16.5 Blind Flange held the line at test pressure through a rainy season and came off clean when the extension was ready, which is the kind of quiet reliability a utility files away. A blind left on a future stub is the cheapest tie-in you will ever make.

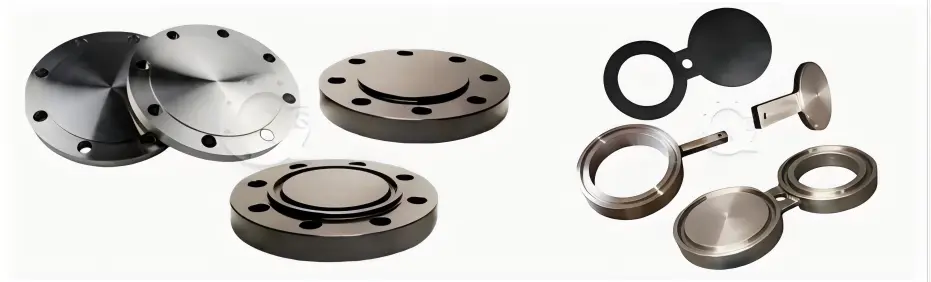

Blind Flange vs Line Blank vs Spectacle Blind

A solid ASME B16.5 Blind Flange is a permanent or semi-permanent stop, while a spectacle blind flips between open and closed and a paddle (line blank) is a loose disc slipped between flanges. The ASME B16.5 Blind Flange threads into a normal flange joint and keeps the pressure rating, where a paddle needs a dedicated spade set. Most clients pick the solid blind when the line stays closed for months and a spectacle when it opens and shuts on a routine.

We advise a ASME B16.5 Blind Flange over a spectacle when the branch is rarely used, because the solid disc costs less and seals with the same gasket the line already carries. The ASME B16.5 Blind Flange also reads clearly as closed at a glance, which matters on a busy rack where a half-open spectacle gets missed. A blind you can see is shut is the blind a safety officer trusts.

Sizing a Blind to the Line It Closes

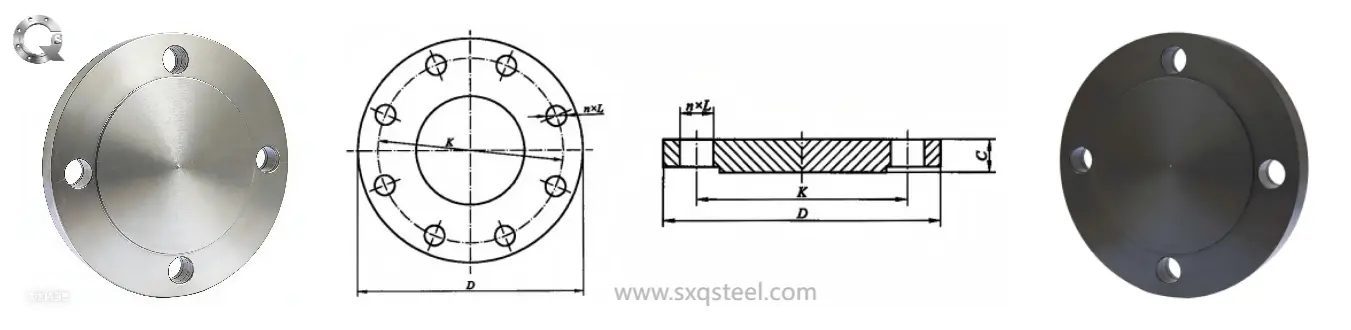

Match the ASME B16.5 Blind Flange to the NPS and class of the mating flange, not to the pipe schedule, because the blind seals on the flange face and the bore is irrelevant once the disc is solid. The ASME B16.5 Blind Flange at Class 150 and the same size at Class 600 differ mainly in thickness and bolt load, so we confirm the class from the line datasheet before we cut. A blind sized to the flange, not the pipe, is the one that seats without a fight.

On large diameters above NPS 24 we often move a client to a ASME B16.5 Blind Flange alternative under ASME B16.47 Series B, because the bigger ring is lighter and the bolt circle is tighter for the same bore. The ASME B16.5 Blind Flange still covers NPS 1/2 through 24, which is where most plant tie-ins sit, and we stock those sizes for same-week shipment. A blind that matches the standard is the blind that passes the inspector.

Material and Facing Choices That Matter

Pick the ASME B16.5 Blind Flange material to match the line so the galvanic and temperature behaviour line up, which for carbon steel is usually A105 and for corrosive service is A182 F316L. The ASME B16.5 Blind Flange facing is almost always raised face to match the mating flange, and we confirm the facing before we ship because a flat-face blind on a raised-face line leaks. A blind matched on material and face is the blind that survives the first start-up.

A low-temperature unit should get a ASME B16.5 Blind Flange in A350 LF2 rather than plain A105, because the LF2 grade keeps its toughness below freezing where a valve might sit idle. The ASME B16.5 Blind Flange in the right low-temp grade is the difference between a blind that cracks on a cold start and one that holds, and we flag the grade on the packing list. A blind graded for the duty is the blind a reliability engineer signs for.

Handling and Storage Before Installation

Store a ASME B16.5 Blind Flange flat and dry with the bolt holes protected, because a warped or dented blind will not seat and a scored face will weep at test. The ASME B16.5 Blind Flange is heavy for its size and a dropped one can crack the hub, so we ship them banded to a skid and wrapped for transit. A blind that arrives square is the blind that goes on the first try.

What a Blind Flange Saves You From

Leaving a line open instead of fitting a ASME B16.5 Blind Flange invites debris, corrosion and an unplanned drain when the schedule slips, because an open stub is a job for the next crew that may not be ready. The ASME B16.5 Blind Flange closes the end the day the line goes cold and keeps it clean until the work starts, which is the small discipline that prevents a contaminated system. A blind fitted early is the blind that saves the flush.

A plant in the Gulf lost a weekend draining a header because an open branch was left uncapped through a shutdown, and a ASME B16.5 Blind Flange on that branch would have kept the system pressurised and clean. The ASME B16.5 Blind Flange is the cheap control a planning meeting forgets and a start-up crew pays for, so we list it on the blind kit by default. A blind on the stub is the blind the next shift thanks you for.

Why Choose Xi'an QinSteel for Your Flange Supply

In late 2023 a contractor in the Gulf rang us two days before a turnaround because the blinds on his list were back-ordered, and we matched his NPS 6 Class 300 and shipped a ASME B16.5 Blind Flange kit with bolts, gasket and a spreader in one crate. The ASME B16.5 Blind Flange set let his crew blank nine nozzles on schedule, and he reordered the full kit for the next shutdown without a second quote. A supplier who stocks the blind is the supplier a turnaround trusts.

When you email info@sxqinsteel.com with the NPS, class and facing, we return a one-page blind spec that names the material, the bolt size and the gasket so receiving can check it against the line. Visit www.sxqsteel.com for the blind-flange sizing chart we attach to every order. The ASME B16.5 Blind Flange is a part we have pulled off the rack for real yards, not just listed in a catalogue.

Frequently Asked Questions

1.Is an ASME B16.5 Blind Flange rated for the same pressure as the line?

A ASME B16.5 Blind Flange carries the full class pressure of the mating flange, because the solid disc has no bore to thin out and the rating comes from the flange standard, not the fitting type. The ASME B16.5 Blind Flange at Class 300 seals at the Class 300 figure for that NPS, so you can blank a line without derating it.

2.Can I reuse a blind flange after it has been bolted up?

Yes, a ASME B16.5 Blind Flange can be reused if the facing is undamaged and the bolts are replaced, because the disc takes no flow wear and only the gasket face sees the load. The ASME B16.5 Blind Flange we supply is inspected for face scoring before restocking, and most plants rotate spares through several shutdowns.

3.Does a blind flange need a gasket?

A ASME B16.5 Blind Flange seals with the same flange gasket as the mating joint, normally a spiral-wound or ring-type gasket for raised-face service. The ASME B16.5 Blind Flange has no bore, so a full-face gasket is rarely needed; the ring gasket the line already uses is the right call unless the mating face is flat.

Contact Xi'an QinSteel for ASME B16.5 Blind Flange Solutions

Tell us the NPS, class and facing of the line you need to close, and we will size the ASME B16.5 Blind Flange with the right material and gasket so it bolts onto your existing flange without rework. Email info@sxqinsteel.com for a blind-flange kit with bolts and spreader, or visit www.sxqsteel.com to see the sizes we stock for fast turnaround and tie-in work. The ASME B16.5 Blind Flange is a part we have blanked real lines with, and we will help you blank yours.

References

1.ASME B16.5 - Pipe Flanges and Flanged Fittings.

2.ASME B16.47 - Large Diameter Steel Flanges.

3.ASME B16.48 - Steel Line Blanks (spectacle, paddle, ring).

4.MSS SP-6 - Standard Finishes for Contact Faces of Pipe Flanges.

5.ASTM A105 / A350 LF2 / A182 - Carbon, low-temp and alloy steel flanges.
