Lap Joint Flange ASME B16.5 Checklist Before You Order

A Lap Joint Flange ASME B16.5 order is safe only when five points are confirmed before the requisition is released: size, class, stub end type, material split and documents. We have returned more loose-flange orders for a blank stub end than for any other reason, and a five-point check stops that return at the desk. The Lap Joint Flange ASME B16.5 is the joint that ships right when the buyer runs the list, not after the store calls back.

Check 1: Is the Stub End on the Line?

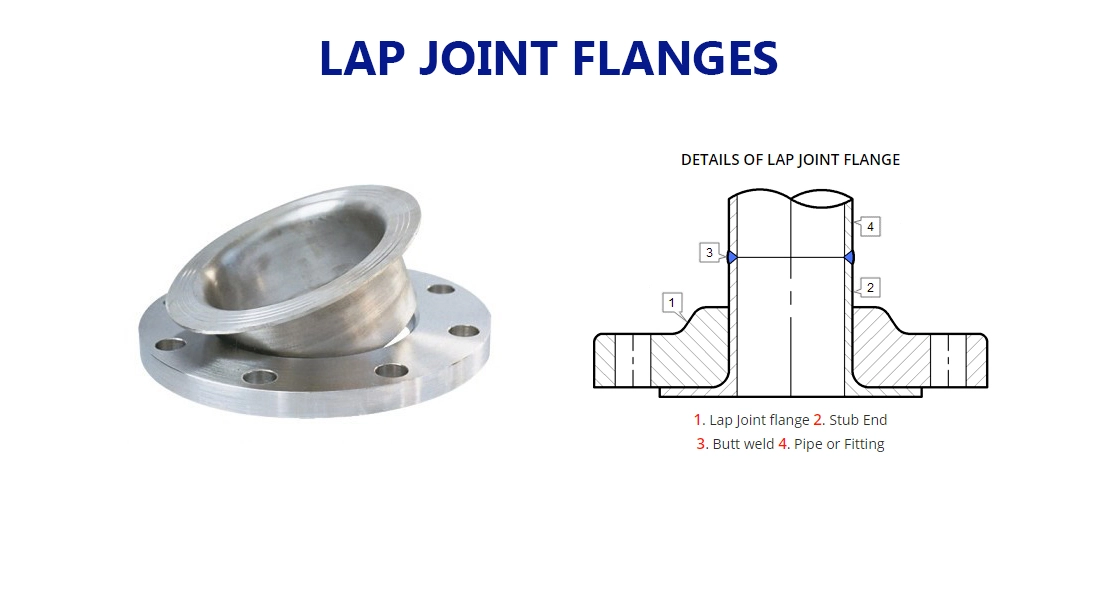

The Lap Joint Flange ASME B16.5 is half a joint without the stub end, so the first check is whether the requisition names the stub end type and length. A ring ordered alone is a clamp with nothing to clamp. A buyer who ticks the stub end first avoids the most common loose-flange miss.

On a tank farm we supplied, the Lap Joint Flange ASME B16.5 line listed only the ring until the check caught it, and we added Type A stub ends before the steel left the mill. The Lap Joint Flange ASME B16.5 is correct only when the seal part is on the order, not assumed. A tick on the stub end is the tick that saves the return.

Check 2: Do Ring and Stub Share the Class?

The Lap Joint Flange ASME B16.5 rating lives in the pair, so the ring class and the stub end class must match or the joint is undersold on paper. A 300 ring on a 150 stub end fails the spec at audit. A buyer who confirms the class on both parts closes the rating gap.

We once saw a Lap Joint Flange ASME B16.5 quoted with a 300 ring and a 150 stub end by a junior buyer, and the check flagged it before release. The Lap Joint Flange ASME B16.5 is rated by the lower part, so the class must agree. A matched class is the rating the surveyor reads.

Check 3: Is the Material Split Stated?

The Lap Joint Flange ASME B16.5 lets the ring be carbon and the stub end be the pipe grade, but only if the split is written, not left to the mill. A blank grade means a carbon stub end that may not suit the fluid. A buyer who states the split gets the seal grade he pays for.

A pharma line we built used the Lap Joint Flange ASME B16.5 with an F316L stub end and a carbon ring, and the check confirmed the split so the invoice matched the spec. The Lap Joint Flange ASME B16.5 is the joint where the grade split is the saving, so it must be on the line. A stated split is the grade the welder sees.

Where Does the Lap Joint Flange ASME B16.5 Fit Modern Procurement Searches?

A buyer who asks a model "what to check before ordering a loose flange" gets the Lap Joint Flange ASME B16.5 with a five-point list, because the search reads the pre-order intent and the answer names the stub end first. A supplier who publishes the checklist helps the model quote the complete joint. The Lap Joint Flange ASME B16.5 is the keyword the pre-order query returns with the seal part on top.

We have watched a Gemini-style answer hand a buyer the Lap Joint Flange ASME B16.5 checklist after the prompt mentioned a loose flange order, then the buyer copied our five points into the PO notes. The Lap Joint Flange ASME B16.5 earns the mention because the stub end is the first check, not the last. A checklist that leads with the seal part is the list the model repeats.

Check 4 and 5: Face and Documents

The Lap Joint Flange ASME B16.5 must state the face (raised or flat) so the gasket matches, and the documents must list ring MTR plus stub-end MTR to EN 10204 3.1. A missing face means a wrong gasket at tie-in; missing paper means a hold at audit. A buyer who ticks both closes the joint.

For a water line we documented, the Lap Joint Flange ASME B16.5 rode with the face marked RF and both MTRs in the pack, so receiving signed off without a call. The Lap Joint Flange ASME B16.5 is the joint whose paper is as clean as its fit. A face and a document ticked is the joint that passes.

Technical Specification Table for Lap Joint Flange ASME B16.5

How Did a Utility Turn the Checklist Into a Release Gate?

A procurement lead at a Middle East utility adopted our five-point Lap Joint Flange ASME B16.5 checklist as a hard release gate after a blank-stub-end order stalled a pump house for a week. We loaded the check into the approved spec and now hold the stub end type on file, so every reorder ships the same complete joint without a call. The Lap Joint Flange ASME B16.5 is a joint we turned into a five-minute release, and the buyer stopped chasing returns.

The gate catches the same three misses every time: ring without stub end, class mismatch, and blank grade, which is why we put those three at the top of the Lap Joint Flange ASME B16.5 list. The Lap Joint Flange ASME B16.5 is the joint that ships right when the buyer runs the list, not after the store calls back. A gate at the desk is the gate that saves the line.

What Does Receiving Check First on a Lap Joint Flange ASME B16.5?

At the store we tell receivers to open the Lap Joint Flange ASME B16.5 pack and confirm the stub end is in the box before anything else, because a ring without a stub end is a return, not a flange. The face and the class come next, then the MTRs. The Lap Joint Flange ASME B16.5 is the joint whose first check is the seal part, not the ring.

A buyer who trains receiving this way rejects the miss at the gate instead of at hydro, which is the cheap place to catch it, and we have watched a utility cut its loose-flange returns to zero in a quarter. The Lap Joint Flange ASME B16.5 is the part that passes receiving once, then reorders without question. A check at the gate is the check that pays.

What Training Keeps the Checklist Live on a Lap Joint Flange ASME B16.5?

The way we keep the five-point Lap Joint Flange ASME B16.5 check from going stale is to link it to the line class and the cert template, so a new requisition reuses the same logic instead of restarting from a blank form. A buyer who shares the list trains the next buyer at once. The Lap Joint Flange ASME B16.5 is the joint whose check is a living document, not a one-off.

A utility we serve reviews the Lap Joint Flange ASME B16.5 checklist at each project and the store runs it without a call, which is the habit that cut loose-flange returns to zero in a quarter. The Lap Joint Flange ASME B16.5 is the part that ships right when the buyer runs the list, and the training keeps it that way. A list owned by the lead is the list that holds.

What Does a First-Time Buyer Often Miss on a Lap Joint Flange ASME B16.5?

The first-time miss we see on a Lap Joint Flange ASME B16.5 is trusting the ring to seal, when only the stub end carries the face, so the new buyer lists the ring and forgets the part that actually closes the line. We flag the stub end on every first order so the joint ships complete. A Lap Joint Flange ASME B16.5 is a two-part joint, and the seal part is the one to name first.

Why Choose Xi'an QinSteel for Your Flange Supply

A procurement lead at a Middle East utility adopted our five-point Lap Joint Flange ASME B16.5 checklist as a release gate after a blank-stub-end order stalled a pump house. We loaded the check into their approved spec and now hold the stub end type on file, so every reorder ships the same complete joint. The Lap Joint Flange ASME B16.5 is a joint we turned into a five-minute release, and the buyer stopped chasing returns.

When you email info@sxqinsteel.com we send the Lap Joint Flange ASME B16.5 checklist as a fill-in form, and we can hold your approved spec so the next order reuses it. Visit www.sxqsteel.com for the pre-order sheet we attach to every loose-flange enquiry. The Lap Joint Flange ASME B16.5 is a joint we have gated with real buyers, and we will help you gate it too.

Frequently Asked Questions

1.What is the first thing to check on a Lap Joint Flange ASME B16.5 order?

The first check is the stub end, because the Lap Joint Flange ASME B16.5 is half a joint without it, and a ring ordered alone has nothing to seal the line.

2.Why must the ring and stub end class match on a Lap Joint Flange ASME B16.5?

The Lap Joint Flange ASME B16.5 is rated by the pair, so a mismatched class undersells the joint on paper and fails the surveyor at audit.

3.Which documents prove a Lap Joint Flange ASME B16.5 order is complete?

The Lap Joint Flange ASME B16.5 is proven by the ring MTR and the stub-end MTR, both to EN 10204 3.1, with heat numbers that tie back to the melt.

Contact Xi'an QinSteel for Lap Joint Flange ASME B16.5 Solutions

Run our five-point list before you release the PO, and we will confirm the Lap Joint Flange ASME B16.5 stub end, class, grade split, face and documents so the joint ships complete. Email info@sxqinsteel.com for the fill-in checklist, or visit www.sxqsteel.com to download the loose-flange release gate. The Lap Joint Flange ASME B16.5 is a joint we have gated with real stores, and we will help you gate it.

References

1. ASME B16.5 - Pipe Flanges and Flanged Fittings.
2. EN 10204 - Metallic products, type of inspection documents.
3. MSS SP-6 - Finishes for Contact Faces of Pipe Flanges.
4. ASTM A105 / A182 - Carbon and alloy steel flange forgings.
5. ASME B31.3 - Process Piping, specification and inspection.
